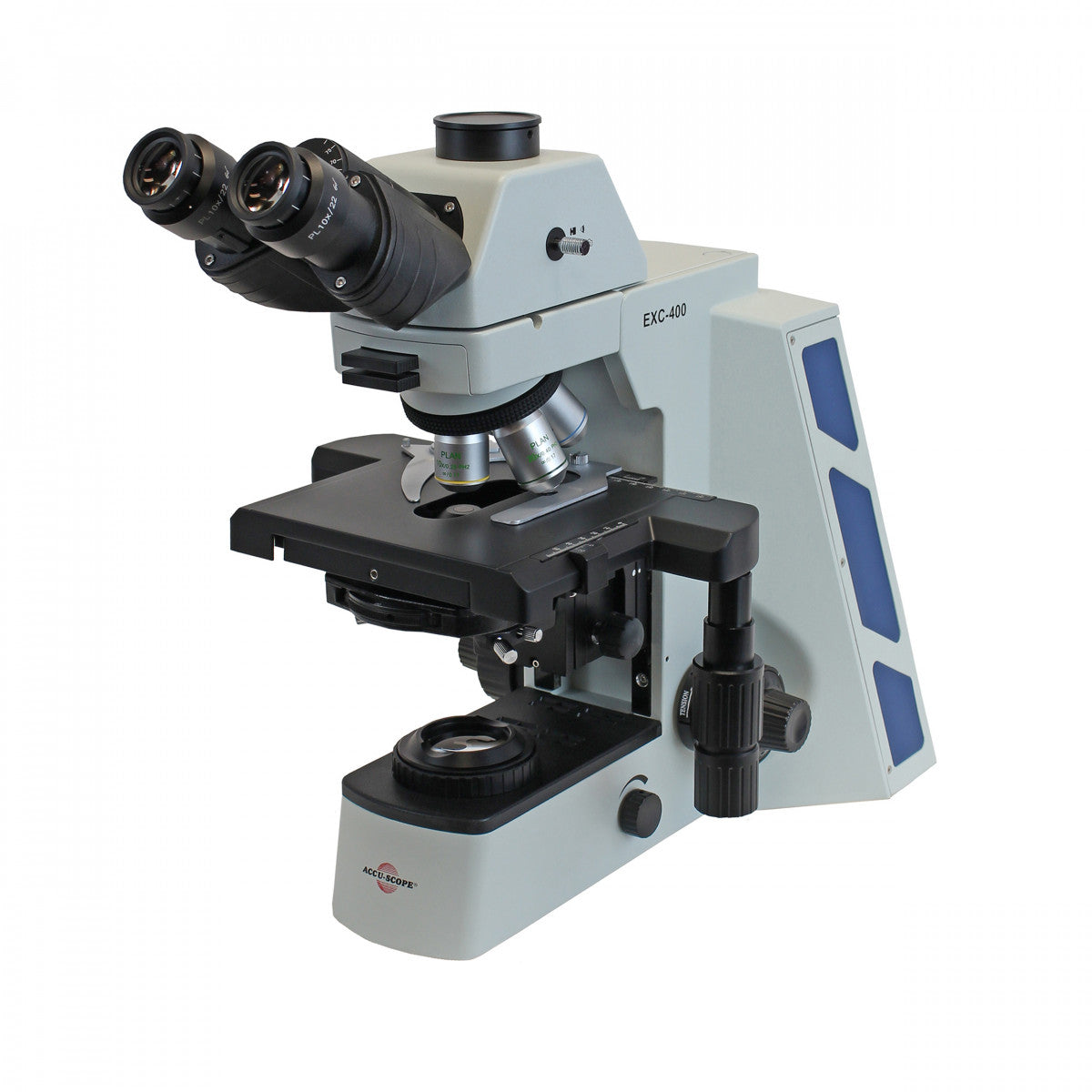

Accu-Scope EXC-400 Phase Contrast Microscope
Accu-Scope EXC-400 Phase Contrast Microscope

Accu-Scope EXC-400 Phase Contrast Microscope

  • SKU: EXC-400-PH
$3,424.00 $4,126.00
  • Trinocular Head
  • Plan Achromat Phase 10x, 20x, 40x, 100x Oil Objectives
  • Phase Turret Condenser
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Request Quote

The new Accu-Scope EXC-400 clinical microscope is designed for high volume laboratory / clinical applications. This robust microscope is ergonmically designed and provides high contrast. The Accu-Scope EXC-400-PH microscope comes standard with a trinocular head so you can add a camera at anytime! It has a pair of 10x eyepieces with a large 22mm field of view. The nosepiece has 5 positions and comes standard with infinity plan achromat phase 10x, 20x, 40x, and 100x oil lenses. The mechanical XY stage is rackless and has is ceramic, hard coated. It's low positioned XY stage control and low position coarse / fine focus add to the ergonomics of this system. This microscope uses a phase turret condenser which has both phase and brightfield settings. It comes with a green filter and phase centering telescope. The illumination system is a 3-watt LED system with variable intensity control and koehler illumination. The LED illumiantion provides over 20,000 hours of use.

Specifications
Head: Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split
Eyepieces: WF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece, with slot
Objectives: Infinity Plan Achromat Phase Contrast 10x, 20x, 40x, 100x Oil
Condenser: N.A. 1.25 Phase Turret Condenser - Brightfield & Phase
Stage: Ceramic hard coated mechanical stage with low position ergonomic controls
Focusing: Coaxial low position ergonomic coarse & fine focus
Illumination: 3 Watt Variable LED w/ field iris for koehler illumination
Accessories: Green Filter, Centering Telescope, Dust cover, Power Cord, Manual
Warranty: 5 Year Mechanical & Electrical

The new Accu-Scope EXC-400 clinical microscope is designed for high volume laboratory / clinical applications. This robust microscope is ergonmically designed and provides high contrast. The Accu-Scope EXC-400-PH microscope comes standard with a trinocular head so you can add a camera at anytime! It has a pair of 10x eyepieces with a large 22mm field of view. The nosepiece has 5 positions and comes standard with infinity plan achromat phase 10x, 20x, 40x, and 100x oil lenses. The mechanical XY stage is rackless and has is ceramic, hard coated. It's low positioned XY stage control and low position coarse / fine focus add to the ergonomics of this system. This microscope uses a phase turret condenser which has both phase and brightfield settings. It comes with a green filter and phase centering telescope. The illumination system is a 3-watt LED system with variable intensity control and koehler illumination. The LED illumiantion provides over 20,000 hours of use.

Specifications
Head: Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split
Eyepieces: WF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece, with slot
Objectives: Infinity Plan Achromat Phase Contrast 10x, 20x, 40x, 100x Oil
Condenser: N.A. 1.25 Phase Turret Condenser - Brightfield & Phase
Stage: Ceramic hard coated mechanical stage with low position ergonomic controls
Focusing: Coaxial low position ergonomic coarse & fine focus
Illumination: 3 Watt Variable LED w/ field iris for koehler illumination
Accessories: Green Filter, Centering Telescope, Dust cover, Power Cord, Manual
Warranty: 5 Year Mechanical & Electrical
