Accu-Scope EXC-400 Phase Contrast HD Digital Microscope Package

Recently viewed

Accu-Scope EXC-400 Phase Contrast HD Digital Microscope Package
Accu-Scope EXC-400 Phase Contrast HD Digital Microscope Package

Accu-Scope EXC-400 Phase Contrast HD Digital Microscope Package

  • SKU: EXC-400-PH-HD
$4,694.00 $5,622.00
  • Choose With or Without Screen
  • Plan Achromat Phase Objectives
  • Phase Turret Condenser
  • Ceramic Rackless XY Stage
  • LED Koehler Illumination
Camera
Request Quote

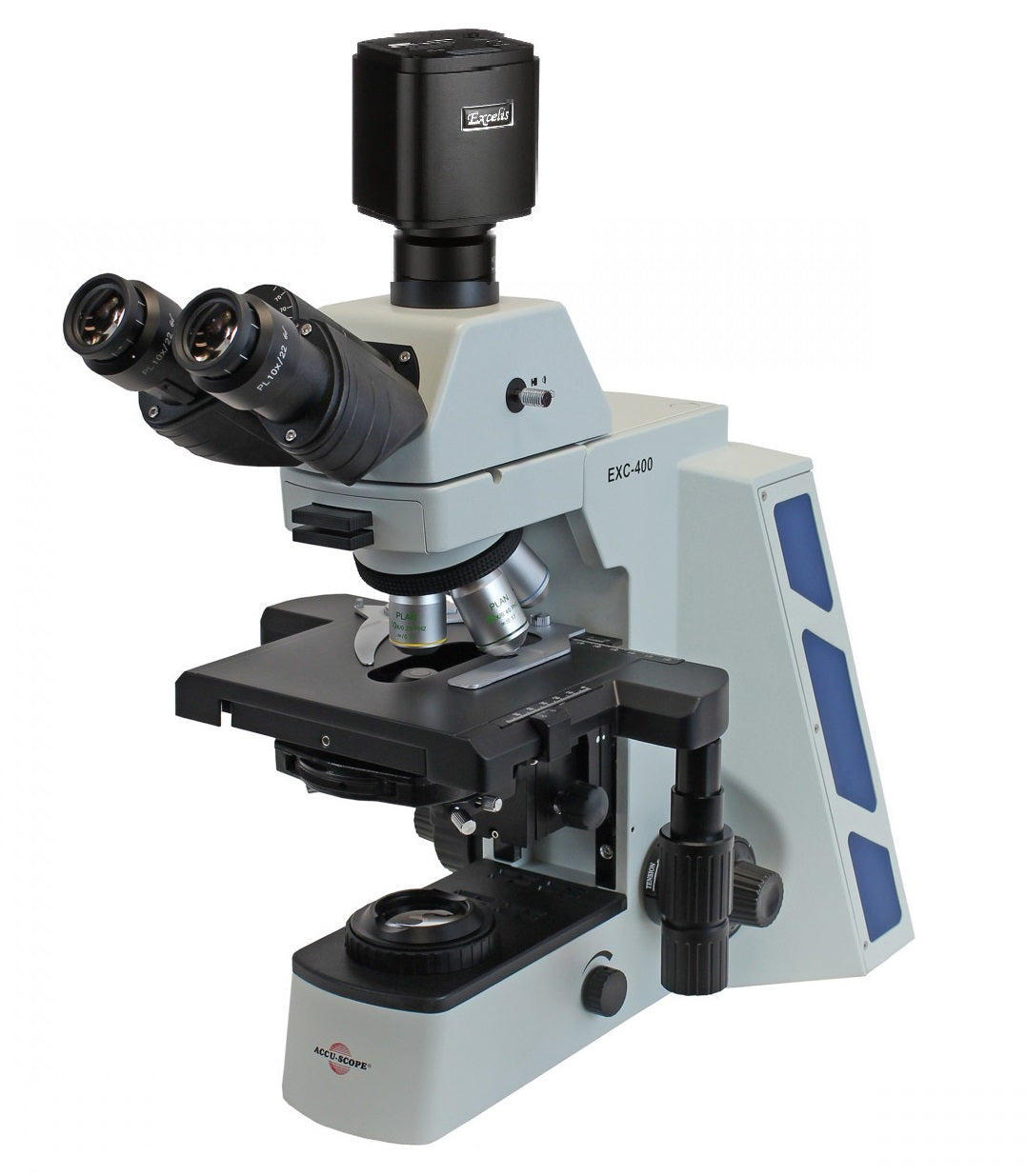

This EXC-400 phase contrast digital microscope from Accu-Scope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images.  The trioncular viewing head comes with c-mount adapter, and camera of your choice. The 10x focusing eyepieces provide a 22mm field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives, and has a slot for to insert an analyzer. The infinity plan achromat phase 10x, 20x, 40x, and 100x oil objectives provide sharp high contrast images. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. The phase contrast turret has brightfield and phase positions. The LED variable illuminator provides over 20,000 hours of use, and has a field iris diaphragm for koehler illumination. A green interference filter and phase centering telescope are included. Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software -  image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split & c-mount
Eyepieces: WF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece, with slot
Objectives: Infinity Plan Achromat Phase Contrast 10x, 20x, 40x, 100x Oil
Condenser: N.A. 1.25 Phase Turret Condenser - Phase & Brightfield Settings
Stage: Rackless XY Stage w/ Telescoping Control
Focusing: Coaxial low position ergonomic coarse & fine focus
Illumination: 3 Watt Variable LED w/ field iris for koehler illumination
Accessories: Green Filter, Phase Telescope, Dust cover, power cord, manual
Warranty: 5 Year Mechanical & Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year

This EXC-400 phase contrast digital microscope from Accu-Scope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images.  The trioncular viewing head comes with c-mount adapter, and camera of your choice. The 10x focusing eyepieces provide a 22mm field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives, and has a slot for to insert an analyzer. The infinity plan achromat phase 10x, 20x, 40x, and 100x oil objectives provide sharp high contrast images. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. The phase contrast turret has brightfield and phase positions. The LED variable illuminator provides over 20,000 hours of use, and has a field iris diaphragm for koehler illumination. A green interference filter and phase centering telescope are included. Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software -  image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split & c-mount
Eyepieces: WF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece, with slot
Objectives: Infinity Plan Achromat Phase Contrast 10x, 20x, 40x, 100x Oil
Condenser: N.A. 1.25 Phase Turret Condenser - Phase & Brightfield Settings
Stage: Rackless XY Stage w/ Telescoping Control
Focusing: Coaxial low position ergonomic coarse & fine focus
Illumination: 3 Watt Variable LED w/ field iris for koehler illumination
Accessories: Green Filter, Phase Telescope, Dust cover, power cord, manual
Warranty: 5 Year Mechanical & Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
