Accu-Scope EXC-400 Mercury Fluorescence Microscope

Recently viewed

Accu-Scope EXC-400 Mercury Fluorescence Microscope

Accu-Scope EXC-400 Mercury Fluorescence Microscope

  • SKU: EXC-400-FL-M-PA-1
$7,003.00 $7,959.00
  • Trinocular Head
  • Plan Achromat or Plan APO Objectives
  • 6 Position Mercury Fluorescence Illuminator
  • Ceramic Mechanical Stage
  • 5 Year Mechanical & Electrical Warranty
Wavelengths
Objectives
Request Quote

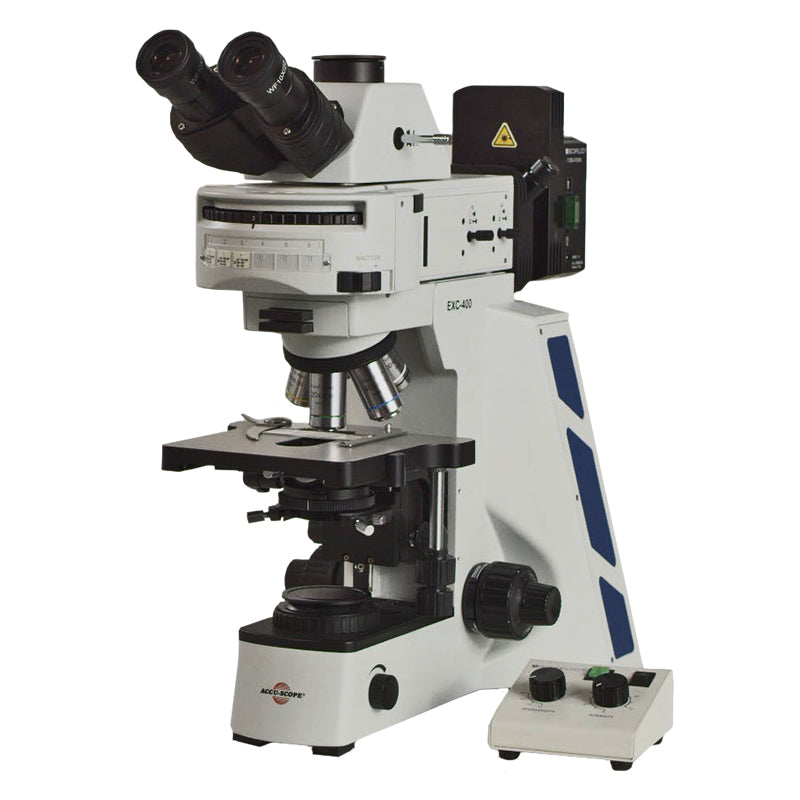

The Accu-Scope EXC-400 fluorescence microscope is a high quality research grade fluorescence microscope. This microscope comes standard with a trinocular viewing head. It comes with a 6 position reflected light fluorescence illuminator which will allow you to add up to 6 filters cubes. This package comes with a mercury lamphosue and power supply  It has a reversed quintuple nosepiece and comes with your choice of Plan Achromat or S-Plan APO 4x, 10x, 40x, and 100x oil objectives. The rackless XY mechanical stage has a ceramic hard coated top allowing the slide to move with ease. This microscope comes with a 1.25 N.A. swing out condenser and has full koehler illumination. The brighfield illumination is a 3-watt LED illuminator with variable intensity.

We have a few pre-configured filter sets that are offered with this. If you need other cubes please contact us. Photo does not show mercury lamphouse and power supply, however this is the unit that will be provided.



Accu-Scope EXC-400 LED Fluorescence Microscope:
Head:

Trinocular viewing head, inclined 30°, rotatable 360° - or -

Ergonomic Tilting Head

Eyepieces: WF10x/22mm focusing eyepieces with eyeguards
Fluorescence:

6 Position w/ field iris, shutter, UV protection plate

Mercury lamphouse & power supply

Filter cube options below

Nosepiece: Reversed quintuple nosepiece
Objectives:

Infinity Plan Achromat 4x, 10x, 40x, 100x Oil Objectives -or-

Infinity NIS S-Plan APO 4x, 10x, 40x, 100x Oil Objectives

Condenser: N.A. 1.25 Swing Out Achromatic
Stage: Ceramic hard coated mechanical stage
Illumination: 3 Watt Variable LED w/ field iris
Focusing: Coaxial coarse and fine focusing controls
Accessories: Dust cover, power cord, manual
Warranty: 5 Year Mechanical & Electrical



Filter Cubes:
DAPI: Exciter: AT350/50x, Dichroic: AT410DC, Emitter: AT460/50m
GFP, FITC: Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT535/40m
TRITC: Exciter: AT540/25x, Dichroic: AT565DC, Emitter: AT605/55m
Cy5: Exciter: AT620/50x, Dichroic: AT655DC, Emitter: AT690/50m
Acridine Orange, Di-8-ANEPPS: Exciter: AT480/30x, Dichroic: AT505DC, Emitter:AT620/60m
Texas Red: Exciter: AT560/40x, Dichroic: AT600DC, Emitter: AT635/60m
