Accu-Scope EXC-400 LED Fluorescence Microscope

Recently viewed

Accu-Scope EXC-400 LED Fluorescence Microscope
Accu-Scope EXC-400 LED Fluorescence Microscope

Accu-Scope EXC-400 LED Fluorescence Microscope

  • SKU: EXC-400-FL-PA-1
$10,139.00 $12,143.00
  • Trinocular Head
  • Plan Achromat or Plan APO Objectives
  • 6 Position LED Fluorescence Illuminator
  • Ceramic Mechanical Stage
  • 5 Year Mechanical & Electrical Warranty
Wavelengths
Objectives
Request Quote

The Accu-Scope EXC-400 fluorescence microscope is a high quality research grade fluorescence microscope. This microscope comes standard with a trinocular viewing head so you can add a camera at anytime. It comes with a 6 position reflected light fluorescence illuminator which will allows you to add up to 6 filters cubes. The X-Cite Mini+ LED fluorescence illuminator provides bright and even LED fluorescence illumination. Compared to Mercury fluorescence you no longer need to wait for the bulb to warm up or cool down, and deal with bulb changes. It has a reversed quintuple nosepiece and comes with your choice of Plan Achromat or S-Plan APO 4x, 10x, 40x, and 100x oil objectives. The rackless XY mechanical stage has a ceramic hard coated top allowing the slide to move with ease. This microscope comes with a 1.25 N.A. swing out condenser and has full koehler illumination. The brightfield illumination is a 3-watt LED illuminator with variable intensity.

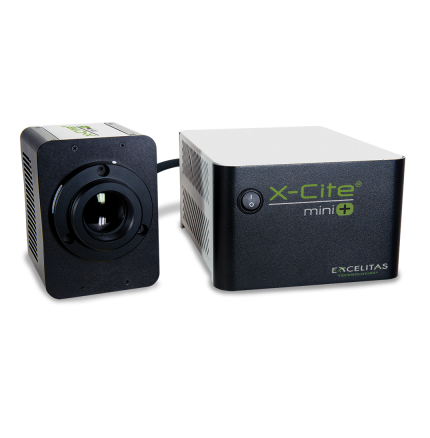

We have a few pre-configured filter sets that are offered with this. If you need other cubes please contact us. Photo does not show X-Cite Mini +, however this is the unit that will be provided.



Specifications
Head: Trinocular viewing head, inclined 30º, 100/0 or 0/100 light split
Eyepieces: WF10x/22mm focusing eyepieces with eyeguards
Fluorescence: 6 position reflected illuminator with field iris, shutter slider, UV protection plate - Filter Options Below
Nosepiece: Reversed quintuple nosepiece, with slot
Objectives:

Infinity Plan Achromat 4x, 10x, 40x, 100x Oil Objectives -

Or-

Infinity NIS S-Plan APO 4x, 10x, 40x, 100x Oil Objectives

Condenser: N.A. 1.25 Swing Out Achromatic with iris diaphragm
Stage: Ceramic hard coated mechanical stage with low position ergonomic controls
Focusing: Coaxial low position ergonomic coarse & fine focus
Illumination: 3 Watt Variable LED w/ field iris for koehler illumination
Accessories: Dust cover, power cord, manual
Warranty: 5 Year Mechanical & Electrical



Filter Cubes:
DAPI: Exciter: 395/25x, Dichoric: T425lpxr, Emitter: ET 460/50m
GFP, FITC: Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT535/40m
TRITC: Exciter: AT540/25x, Dichroic: AT565DC, Emitter: AT605/55m
Cy5: Exciter: AT620/50x, Dichroic: AT655DC, Emitter: AT690/50m
Acridine Orange, Di-8-ANEPPS: Exciter: AT480/30x, Dichroic: AT505DC, Emitter:AT620/60m
Texas Red: Exciter: AT560/40x, Dichroic: AT600DC, Emitter: AT635/60m

The Accu-Scope EXC-400 fluorescence microscope is a high quality research grade fluorescence microscope. This microscope comes standard with a trinocular viewing head so you can add a camera at anytime. It comes with a 6 position reflected light fluorescence illuminator which will allows you to add up to 6 filters cubes. The X-Cite Mini+ LED fluorescence illuminator provides bright and even LED fluorescence illumination. Compared to Mercury fluorescence you no longer need to wait for the bulb to warm up or cool down, and deal with bulb changes. It has a reversed quintuple nosepiece and comes with your choice of Plan Achromat or S-Plan APO 4x, 10x, 40x, and 100x oil objectives. The rackless XY mechanical stage has a ceramic hard coated top allowing the slide to move with ease. This microscope comes with a 1.25 N.A. swing out condenser and has full koehler illumination. The brightfield illumination is a 3-watt LED illuminator with variable intensity.

We have a few pre-configured filter sets that are offered with this. If you need other cubes please contact us. Photo does not show X-Cite Mini +, however this is the unit that will be provided.
