Accu-Scope EXC-400 HD Digital Microscope

Recently viewed

Accu-Scope EXC-400 HD Digital Microscope
Accu-Scope EXC-400 HD Digital Microscope
Accu-Scope EXC-400 HD Digital Microscope

Accu-Scope EXC-400 HD Digital Microscope

  • SKU: EXC-400-HD
$3,261.00 $3,929.00
  • Choose With or Without Screen
  • Plan Achromat or APO Objectives
  • Ceramic Stage
  • Kohler LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Camera
Objectives
Request Quote

This EXC-400 digital microscope from Accu-Scope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images. The trioncular viewing head comes with c-mount adapter, and camera of your choice. The 10x focusing eyepieces provide a 22mm field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives, and has a slot for to insert an analyzer. The EXC-400 offers optical brilliance coming standard with Infinity Plan Achromatic 4x, 10x, 40x, and 100x oil objectives. For more added contrast & color correction you can upgrade the objectives to Infinity Plan-Apochromat 4x, 10x, 40x, 100x oil. There are wide selection of other objectives available for this microscope to meet your specific laboratory needs. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. A 1.25 N.A. achromatic flip top condenser allows for the addition of a 2x objective to meet the demands of pathology, dermatology, or histology applications. The LED variable illuminator provides over 20,000 hours of use, and has a field iris diaphragm for koehler illumination. The Accu-Scope EXC-400 clinical microscope can be fully customized, is available in phase contrast, fluorescence, dual viewing, and has a wide variety of objective lenses. Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software -  image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split & c-mount
Eyepieces: WF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece, with slot
Objectives:

Infinity Plan Achromat 4x, 10x, 40x, 100x Oil

-Or-

Infinity Plan S-APO 4x, 10x, 40x, 100x Oil

Condenser: N.A. 1.25 Swing Out Achromatic with iris diaphragm

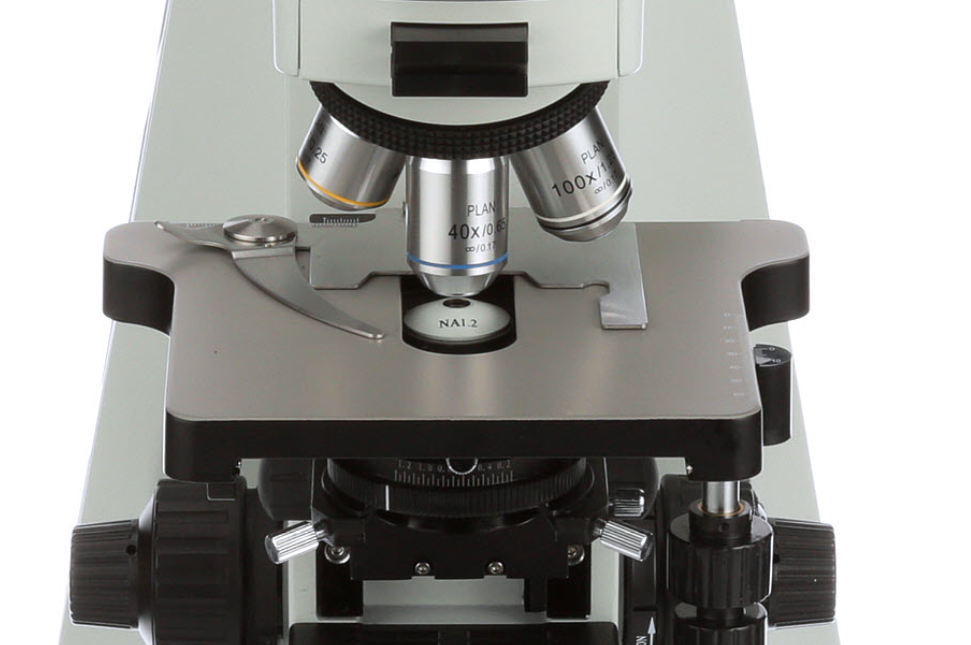

Stage: Ceramic hard coated mechanical stage with low position ergonomic controls
Focusing: Coaxial low position ergonomic coarse & fine focus
Illumination: 3 Watt Variable LED w/ field iris for koehler illumination
Accessories: Dust cover, power cord, manual
Warranty: 5 Year Mechanical & Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year

This EXC-400 digital microscope from Accu-Scope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images. The trioncular viewing head comes with c-mount adapter, and camera of your choice. The 10x focusing eyepieces provide a 22mm field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives, and has a slot for to insert an analyzer. The EXC-400 offers optical brilliance coming standard with Infinity Plan Achromatic 4x, 10x, 40x, and 100x oil objectives. For more added contrast & color correction you can upgrade the objectives to Infinity Plan-Apochromat 4x, 10x, 40x, 100x oil. There are wide selection of other objectives available for this microscope to meet your specific laboratory needs. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. A 1.25 N.A. achromatic flip top condenser allows for the addition of a 2x objective to meet the demands of pathology, dermatology, or histology applications. The LED variable illuminator provides over 20,000 hours of use, and has a field iris diaphragm for koehler illumination. The Accu-Scope EXC-400 clinical microscope can be fully customized, is available in phase contrast, fluorescence, dual viewing, and has a wide variety of objective lenses. Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software -  image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split & c-mount
Eyepieces: WF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece, with slot
Objectives:

Infinity Plan Achromat 4x, 10x, 40x, 100x Oil

-Or-

Infinity Plan S-APO 4x, 10x, 40x, 100x Oil

Condenser: N.A. 1.25 Swing Out Achromatic with iris diaphragm
Stage: Ceramic hard coated mechanical stage with low position ergonomic controls
Focusing: Coaxial low position ergonomic coarse & fine focus
Illumination: 3 Watt Variable LED w/ field iris for koehler illumination
Accessories: Dust cover, power cord, manual
Warranty: 5 Year Mechanical & Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
