Accu-Scope EXC-400 Gout Microscope
Accu-Scope EXC-400 Gout Microscope
Accu-Scope EXC-400 Gout Microscope
Accu-Scope EXC-400 Gout Microscope

Accu-Scope EXC-400 Gout Microscope

  • SKU: EXC-400-T-PA-GOUT
$3,836.00 $4,595.00
  • Trinocular or Ergo Head
  • Plan Achromat or Plan APO Objectives
  • Gout Kit
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Head
Objectives
Request Quote

The Accu-Scope EXC-400 gout analysis microscope is ergonomically designed, and suitable to withstand heavy use, while providing high resolution images . A trinocular head is standard, and for added ergonomics you can upgrade to a tilting binocular head. The 10x focusing eyepieces provide a 22mm field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives, and has a slot for the anlyzer. The EXC-400 offers optical brilliance coming standard with Infinity Plan Achromatic 4x, 10x, 40x, and 100x oil objectives. For more added contrast & color correction you can upgrade the objectives to Infinity Plan-Apochromat 4x, 10x, 40x, 100x oil. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. A 1.25 N.A. achromatic flip top condenser is fully focusable. The LED variable illuminator provides over 20,000 hours of use, and has a field iris diaphragm for koehler illumination. The rotatable polarizer with insertable red compensator fit over the lamphouse of the microscope. Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!



Specifications
Head:

Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split

 Or

Ergonomic Tilting Head 5° to 35°

Eyepieces: WF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece, with slot
Objectives:

Infinity Plan Achromat 4x, 10x, 40x, 100x Oil Objectives -

Or-

Infinity NIS S-Plan APO 4x, 10x, 40x, 100x Oil Objectives

Condenser: N.A. 1.25 Swing Out Achromatic with iris diaphragm
Stage: Ceramic hard coated mechanical stage with low position ergonomic controls
Focusing: Coaxial low position ergonomic coarse & fine focus
Illumination: 3 Watt Variable LED w/ field iris for koehler illumination

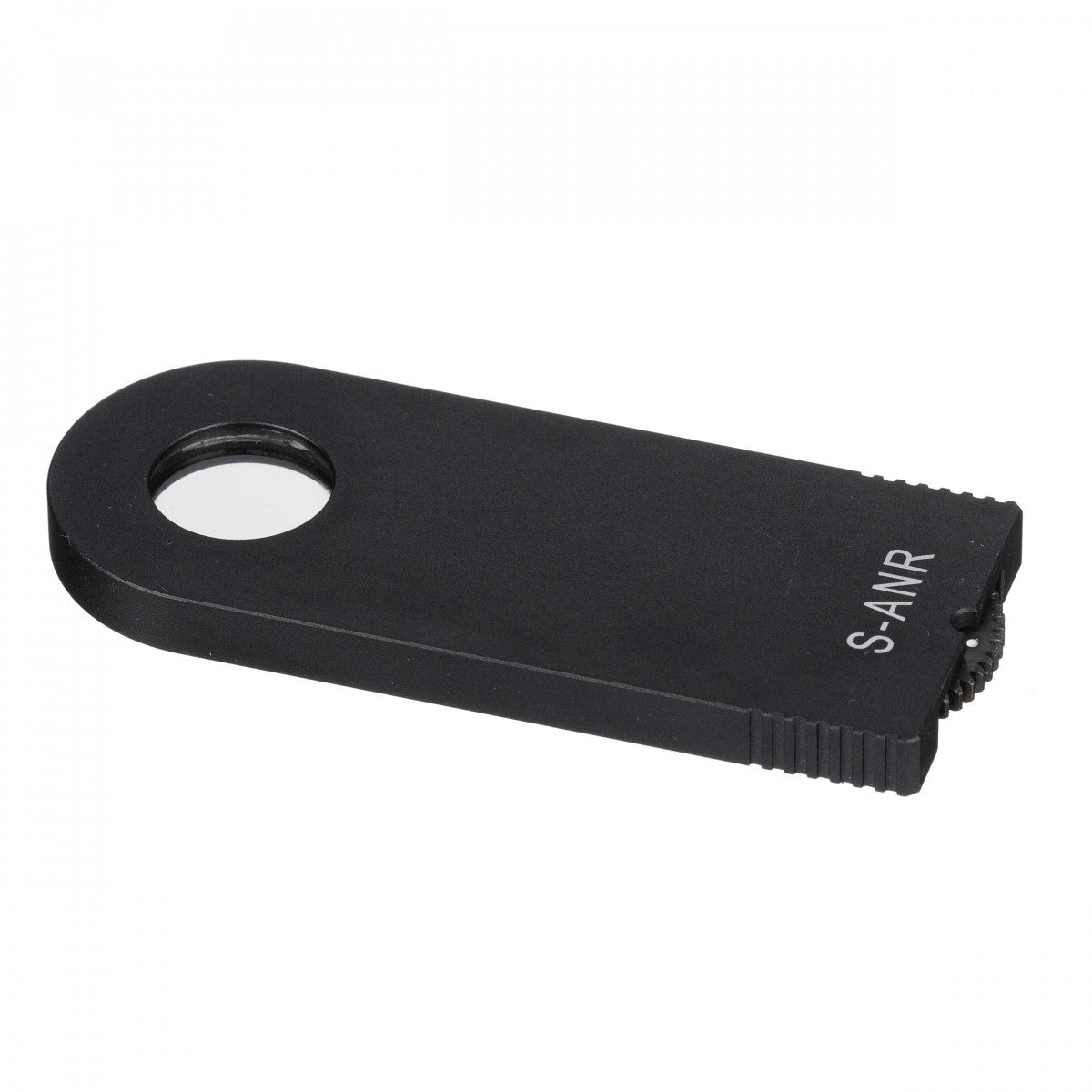

Gout Kit: Analyzer Rotatable Polarizer w/ Red Compensator Plate
Accessories: Dust cover, power cord, manual
Warranty: 5 Year Mechanical & Electrical
