Accu-Scope EXC-400 Digital Hematology Microscope
- SKU: EXC-400-HEMA-HD
- Trinocular or Ergo Tilting Binocular
- Plan Achromat 10x, 40x, 50x Oil, 100x Oil Objectives
- Ceramic Coated Stage
- LED Illumination
- 5 Year Mechanical & Electrical Warranty
The Accu-Scope EXC-400 digital hematology microscope is a high performance laboratory grade microscope that is ergonomically designed, suitable to withstand heavy use, while providing high resolution images. The trinocular viewing head comes with a c-mount adapter and camera of your choice. The 10x focusing eyepieces provide a 22mm field of view and come with roll down eyeguards for added viewing comfort. A reversed quintuple nosepiece and can accept up to five objectives, and has a slot for to insert an analyzer. The EXC-400 offers optical brilliance coming standard with Infinity Plan Achromatic 4x, 10x, 40x, 50x oil, and 100x oil objectives. A ceramic coated rackless XY-mechanical stage allows your slide to move effortlessly with precision. The low-position of the XY-stage stalk, and coarse / fine focus knobs make using this microscope easy and comfortable to use. The 1.25 N.A. condenser is fully focusable to allow adjustments for improved contrast. The LED variable illuminator provides over 20,000 hours of use, and has a field iris diaphragm for koehler illumination. The Accu-Scope EXC-400 clinical microscope can be fully customized, is available in phase contrast, fluorescence, dual viewing, and has a wide variety of objective lenses. Watch the demo product video in the tab above to see why the Accu-Scope EXC-400 microscope is the best microscope for your lab today!
Specifications | |
---|---|
Head: | Trinocular viewing head, inclined 30°, rotatable 360°, 50/50 light split % c-mount adapter |
Eyepieces: | WF10x/22mm focusing eyepieces with eyeguards |
Nosepiece: | Reversed quintuple nosepiece, with slot |
Objectives | Inifinty Plan Achromat 4x, 10x, 40x, 50x oil, 100x oil objectives |
Condenser: | N.A. 1.25 Swing Out Achromatic with iris diaphragm |

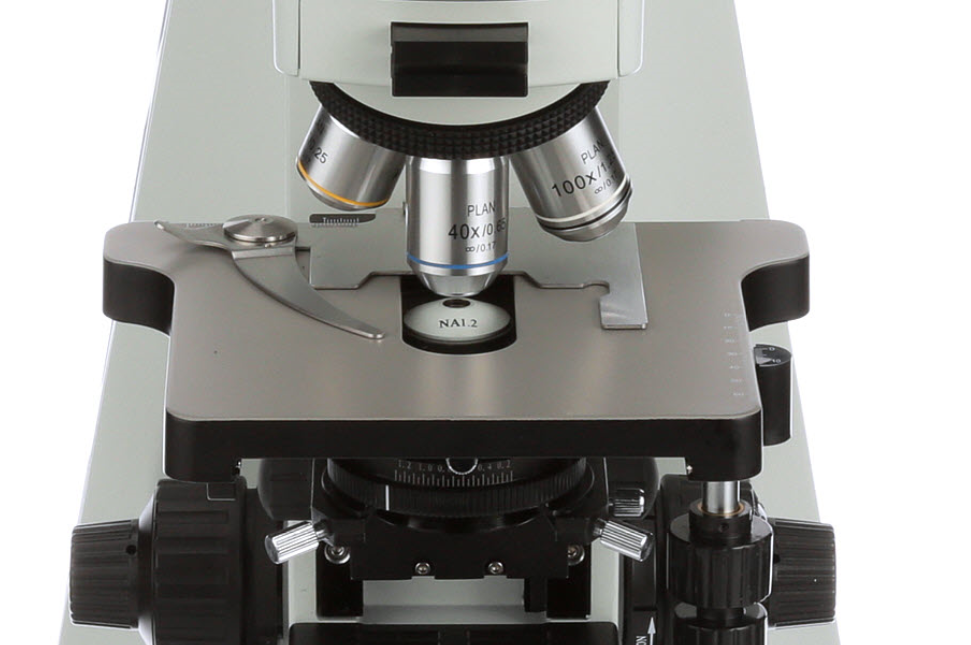

Stage: | Ceramic hard coated mechanical stage with low position ergonomic controls |
Focusing: | Coaxial low position ergonomic coarse & fine focus |
Illumination: | 3 Watt Variable LED w/ field iris for koehler illumination |
Accessories: | Dust cover, power cord, manual |
Warranty: | 5 Year Mechanical & Electrical |
Camera Specifications | |
---|---|
Optional Screen: | 11.6" Retina Display Screen |
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
