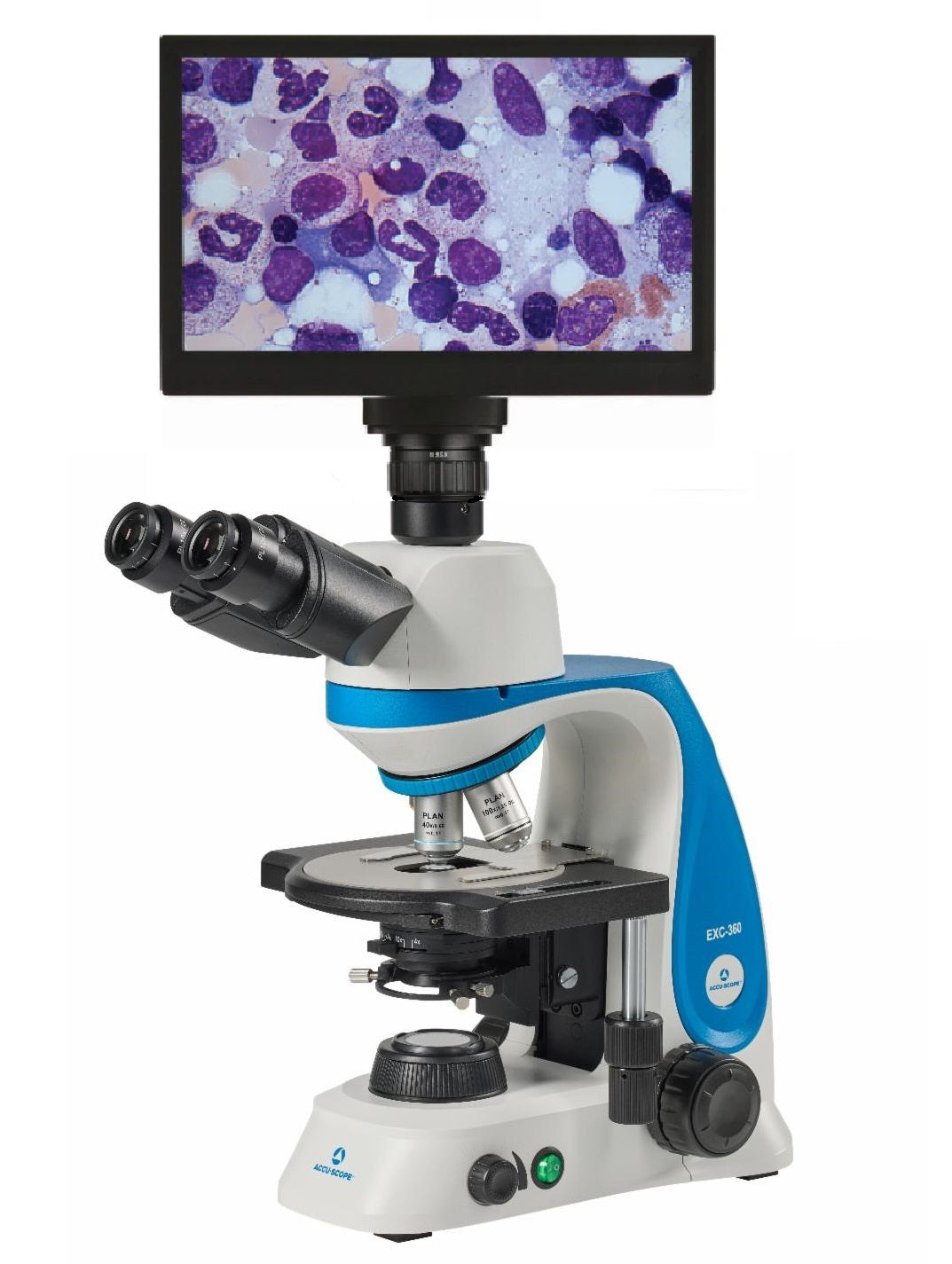

This Accu-Scope EXC-360 digital microscope package is a complete digital solution for your lab. Experience the exceptional design of the new Accu-Scope EXC-360 clinical microscope. With a sturdy and eye-catching build, this microscope is sure to stand out in your lab. The microscope comes standard with a trinocualr viewing head, and includes the c-mount camera adapter. The 10x eyepieces offer a large 22mm field of view. A 5-position nosepiece comes standard with Infinity Plan Achromat 4x, 10x, 40x, and 100x oil objectives, with a full line of objectives to add to meet your magnification requirements. The large stage is coated with ceramic to prevent wear and tear in high-demand environments, and the quick-load slide holder allows for seamless slide changes. The abbe 1.25 N.A. condenser has a slot which can accept phase or darkfield sliders. The ultra bright 3-watt LED illumination system assists the objectives in providing high-resolution images.
You can choose to have an 11.6" display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software - image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
Specifications | |
---|---|
Head: | Trinocular Viewing Head, inclined 30°, 50:50 Light Split |
Eyepieces: | WF10x/22mm focusing eyepieces with eyeguards, accepts 26.5mm reticle |
Nosepiece: | Reversed quintuple nosepiece |
Objectives: | Inifinity Corrected Plan Achromat 4x, 10x, 40x, 100x Oil |
Stage: | Double-layer mechanical stage with ceramic coating; 0.1mm precision (X-axis); 78mm x 51mm movement range; quick load single slide holder |
Condenser | N.A. 1.25 condenser with aperture diaphragm; slot for phase contrast or darkfield sliders |
Focusing | Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass for fine focus |
Illumination: | 3W LED with variable intensity control; LED bulb is rated for over 25,000 hours of continuous use; internal universal power supply 110-240v |
Accessories: | Dust cover, power cord, manual |
Warranty: | 5 Year Mechanical & Electrical |
Camera Specifications | |
---|---|
Optional Screen: | 11.6" Display Screen |
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, 10, 11 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
