Accu-Scope EXC-350 Phase Contrast Microscope - Phase Slider

Recently viewed

Accu-Scope EXC-350 Phase Contrast Microscope - Phase Slider
Accu-Scope EXC-350 Phase Contrast Microscope - Phase Slider

Accu-Scope EXC-350 Phase Contrast Microscope - Phase Slider

  • SKU: EXC-350-SPH
$1,674.00 $2,005.00
  • Trinocular
  • Plan Achromat Phase 10x & 40x Objectives
  • Phase Slider
  • Koehler LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Request Quote

This version of the EXC-350 microsocpe comes with phase contrast 10x & 40x and uses a phase slider rather than a phase turret condenser. Additional objectives and phase sliders can be added by viewing the accessories tab above this description. The Accu-Scope EXC-350 phase contrast microscope is built to withstand heavy use. It comes standard with trinocular head so you can add a camera to your system at anytime! This microscope has 10x/20mm FOV eyepieces. The 5 position nosepiece comes with infinity plan achromat phase 10x and 40x objectives.  The mechanical XY stage has low positioned ergonomic controls. The 1.25 N.A. condenser has a slot for the included phase slider. The LED illumination makes this microscope hassle free and eliminates the need to replace bulbs!

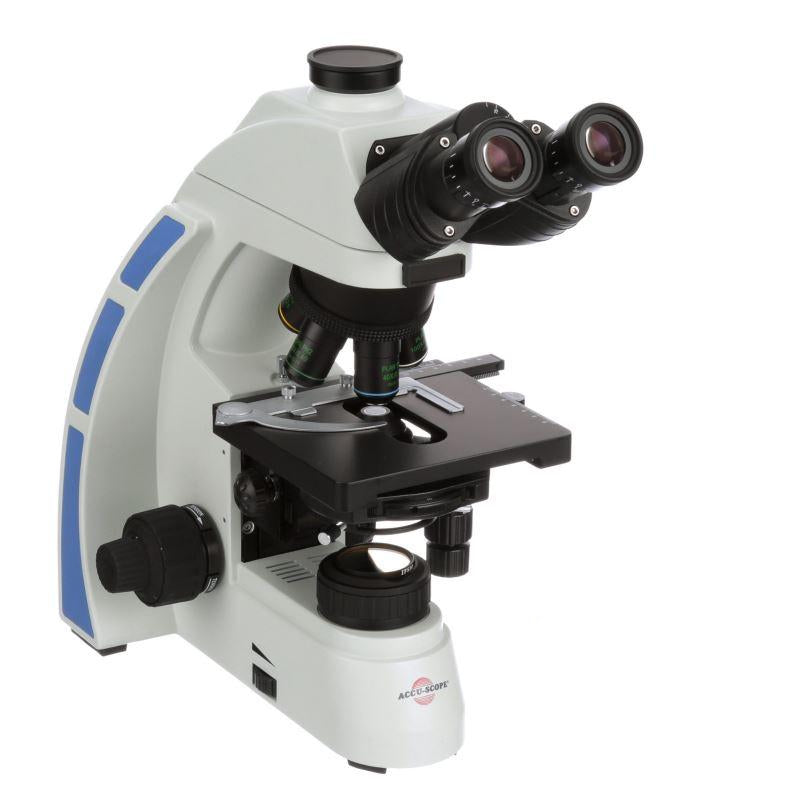

 ***Photo shows phase turret condenser***

Specifications
Head: Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees
Eyepieces: WF10x/20mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece
Objectives: Infinity corrected plan achromat phase 10x & 40x
Condenser: 1.25 N.A. focusable w/ Phase slider - Ph1, Ph2, B.F. positions
Stage: Mechanical XY Stage
Focusing: Coaxial coarse and fine focusing controls
Illumination: Koehler variable 3-watt LED illumination
Accessories: Phase telescope, green filter, dust cover, power cord
Warranty: 5 Year Mechanical & Electrical

This version of the EXC-350 microsocpe comes with phase contrast 10x & 40x and uses a phase slider rather than a phase turret condenser. Additional objectives and phase sliders can be added by viewing the accessories tab above this description. The Accu-Scope EXC-350 phase contrast microscope is built to withstand heavy use. It comes standard with trinocular head so you can add a camera to your system at anytime! This microscope has 10x/20mm FOV eyepieces. The 5 position nosepiece comes with infinity plan achromat phase 10x and 40x objectives.  The mechanical XY stage has low positioned ergonomic controls. The 1.25 N.A. condenser has a slot for the included phase slider. The LED illumination makes this microscope hassle free and eliminates the need to replace bulbs!

 ***Photo shows phase turret condenser***

Specifications
Head: Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees
Eyepieces: WF10x/20mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece
Objectives: Infinity corrected plan achromat phase 10x & 40x
Condenser: 1.25 N.A. focusable w/ Phase slider - Ph1, Ph2, B.F. positions
Stage: Mechanical XY Stage
Focusing: Coaxial coarse and fine focusing controls
Illumination: Koehler variable 3-watt LED illumination
Accessories: Phase telescope, green filter, dust cover, power cord
Warranty: 5 Year Mechanical & Electrical
