Accu-Scope EXC-350 Phase Contrast Digital Microscope - Phase Slider

Recently viewed

Accu-Scope EXC-350 Phase Contrast Digital Microscope - Phase Slider
Accu-Scope EXC-350 Phase Contrast Digital Microscope - Phase Slider

Accu-Scope EXC-350 Phase Contrast Digital Microscope - Phase Slider

  • SKU: EXC-350-SPH-HD
$2,427.00 $2,907.00
  • Choose With or Without Screen
  • Infinity Plan Achromat Phase 10x & 40x Objectives
  • Phase Slider
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Camera
Request Quote

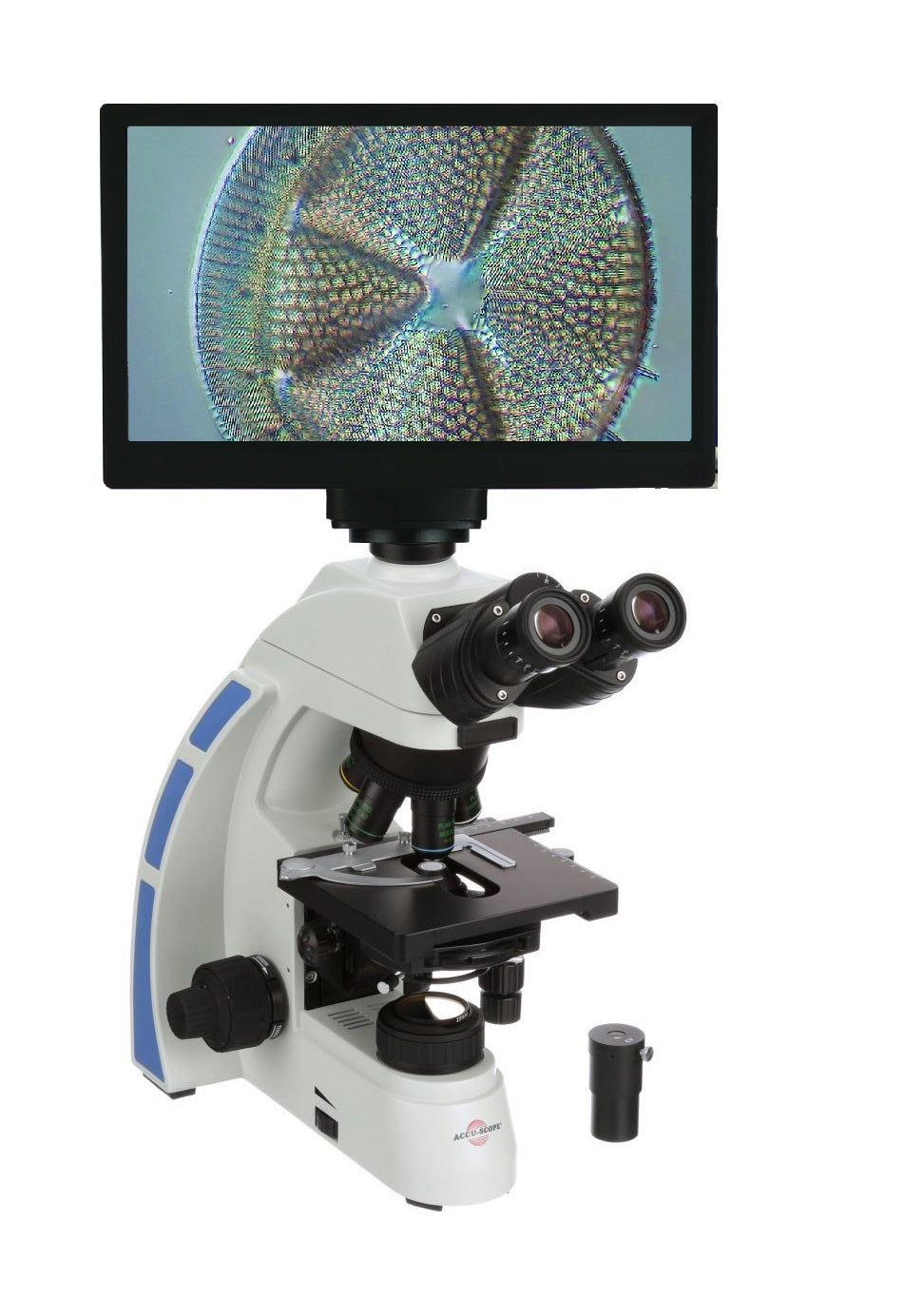

This version of the EXC-350 microsocpe comes with phase contrast 10x & 40x and uses a phase slider rather than a phase turret condenser. Additional objectives and phase sliders can be added by viewing the accessories tab above this description.The Accu-Scope EXC-350 phase contrast digital microscope package is a complete high quality system with an HDMI / USB output HD camera. You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC to capture images into the free software. If you do not select the screen you can still output HDMI to your own screen off to the side, or USB to a computer. The screen just serves as an all-in-one streamlined solution.

The Accu-Scope EXC-350 microscope is a well built microscope with crisp optics designed for ease of use and quality. The microscope comes with a pair of 10x eyepieces which provide a large 20mm field of view. The 5 position nospiece comes with plan achromat phase contrast 10x, 20x, 40x, and 100x oil objectives. The mechanical XY stage allows you to smoothly move your specimen. The phase turret condenser has phase and brightfield settings. The microscope features LED koehler illumination.

The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. When output HDMI on-board software pops up on your screen and you can control the camera with the included mouse. The camera can also output to a PC and can be used with the feature right included software which allows for image / video capture, measurements, extended depth of focus, annotations, stitching, and more!



Specifications
Head: Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees
Eyepieces: WF10x/20mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece
Objectives: Infinity Plan Achromat Phase 10x & 40x
Condenser: 1.25 N.A. w/ Phase Slider - Ph1, Ph2, B.F.
Stage: Mechanical XY Stage
Focusing: Coaxial coarse and fine focus
Illumination: Koehler illumination 3 watt LED illumination
Accessories: Phase telescope, green filter, dust cover, power cord
Warranty: 5 Year Mechanical & Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
