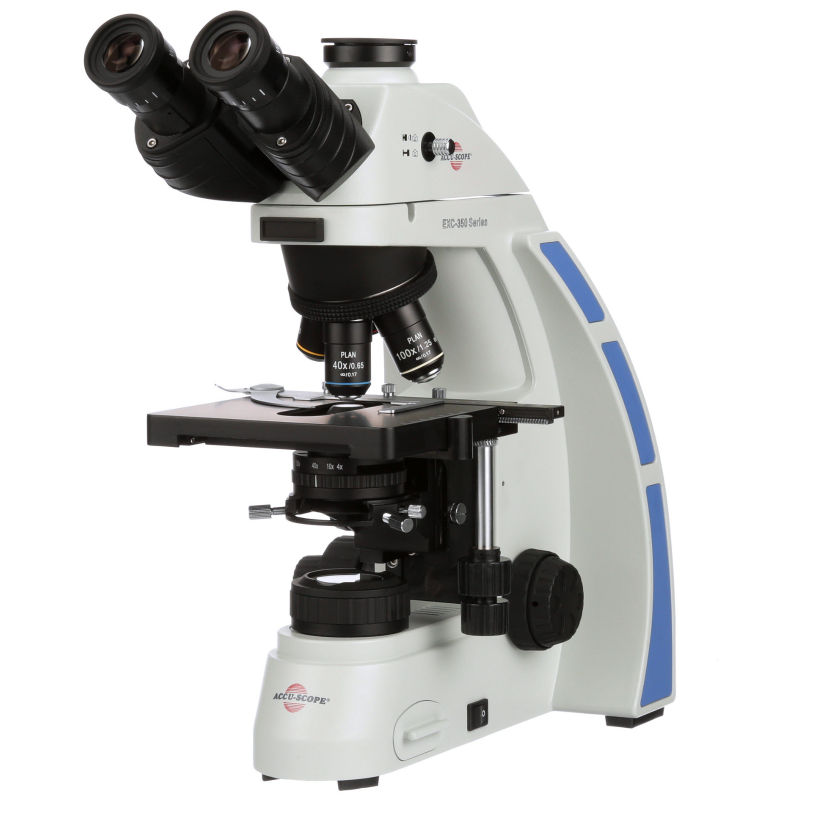

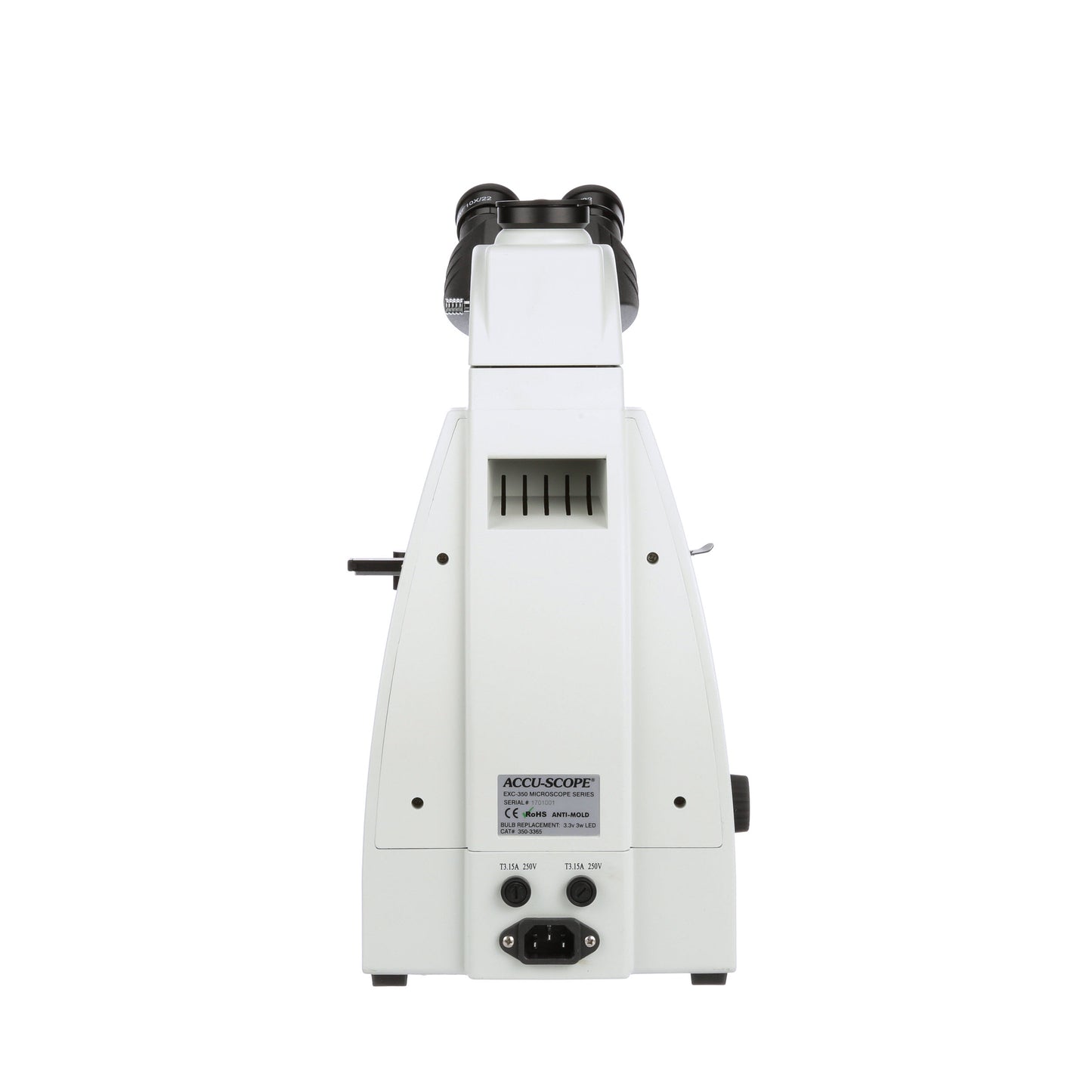

Accu-Scope EXC-350 Pathology MOHS Microscope
- SKU: EXC-350-PATH-20X
- Trinocular Head
- Includes 2x Objective
- All Metal Gears
- Koehler LED Illumination
- 5 Year Mechanical & Electrical Warranty
The Accu-Scope EXC-350 microscope is a high quality laboratory grade microscope. This is configured with a low power scanning objective and diffusion slider. This microscope comes standard with a trinocular viewing head so you can add a camera at anytime. The 10x eyepieces provide you with a 20mm field of view. The quintuple nosepiece has a slot to accept a polarizer / analyzer. You can choose from infinity plan achromat 2x, 4x, 10x, 40x or 2x, 4x, 10x, 20x, 40x objectives. A diffusion slier is provided for use with the 2x objective lens. The large XY mechanical stage makes it easy to move your specimen and has low position ergonomic controls. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm. The coarse and fine focus knobs are ergonomically positioned for ease of use. The microscope is powered by a 3 watt koehler illumination system.
Specifications | |
---|---|
Head: | Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees 80/20 - 0/100 light split |
Eyepieces: | WF10x/20mm focusing eyepieces with eyeguards |
Nosepiece: | Reversed quintuple nosepiece |
Objectives: |
Infinity corrected plan achromat 2x 4x,10x, 40x OR Infinity corrected plan achromat 2x, 4x, 10x, 20x, 40x |
Condenser: | N.A. 1.25 Abbe Condenser with iris diaphragm, diffusion slider |
Stage: | Mechanical XY Stage |
Focusing | Coaxial coarse and fine focusing controls |
Illumination: | Koehler illumination 3 watt LED illumination |
Accessories: | Dust cover, power cord |
Warranty: | 5 Year Mechanical & Electrical |
The Accu-Scope EXC-350 microscope is a high quality laboratory grade microscope. This is configured with a low power scanning objective and diffusion slider. This microscope comes standard with a trinocular viewing head so you can add a camera at anytime. The 10x eyepieces provide you with a 20mm field of view. The quintuple nosepiece has a slot to accept a polarizer / analyzer. You can choose from infinity plan achromat 2x, 4x, 10x, 40x or 2x, 4x, 10x, 20x, 40x objectives. A diffusion slier is provided for use with the 2x objective lens. The large XY mechanical stage makes it easy to move your specimen and has low position ergonomic controls. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm. The coarse and fine focus knobs are ergonomically positioned for ease of use. The microscope is powered by a 3 watt koehler illumination system.
Specifications | |
---|---|
Head: | Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees 80/20 - 0/100 light split |
Eyepieces: | WF10x/20mm focusing eyepieces with eyeguards |
Nosepiece: | Reversed quintuple nosepiece |
Objectives: |
Infinity corrected plan achromat 2x 4x,10x, 40x OR Infinity corrected plan achromat 2x, 4x, 10x, 20x, 40x |
Condenser: | N.A. 1.25 Abbe Condenser with iris diaphragm, diffusion slider |
Stage: | Mechanical XY Stage |
Focusing | Coaxial coarse and fine focusing controls |
Illumination: | Koehler illumination 3 watt LED illumination |
Accessories: | Dust cover, power cord |
Warranty: | 5 Year Mechanical & Electrical |


Siedentopf trinocular viewing head, inclined at 30°, with an industry leading 50mm-75mm interpupillary distance adjustment and a 180° eyepoint adjustment to accommodate users of different body types.


Each EXC-350 Series microscope features an inward facing 5-position nosepiece with infinity plan objectives. - See more at: http://accu-scope.com/products/exc-350-microscope-series/#sthash.hXs17SCb.dpuf
