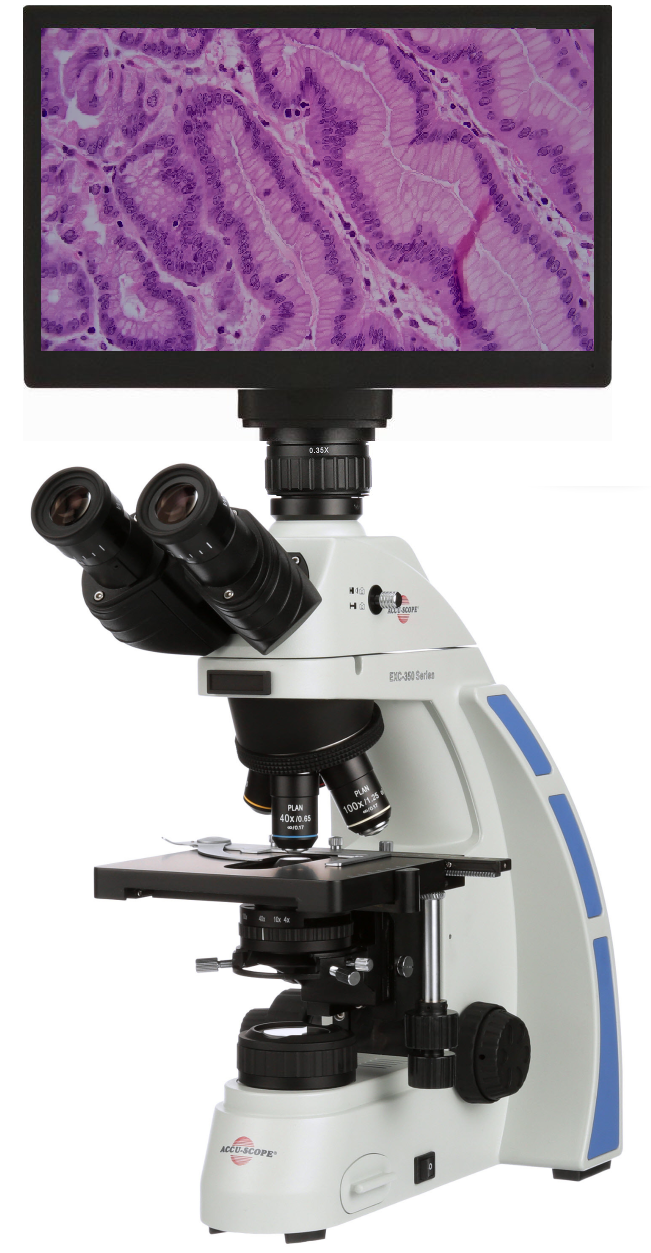

Accu-Scope EXC-350 Pathology MOHS Digital Microscope
- SKU: EXC-350-PATH-HD
- Choose With or Without Screen
- Includes 2x Objective
- All Metal Gears
- Koehler LED Illumination
- 5 Year Mechanical & Electrical Warranty
The Accu-Scope EXC-350 digital pathology microscope is a high quality laboratory grade microscope. This is configured with a low power scanning objective and diffusion slider. The package includes a trinocular viewing head, c-mount adapter, and camera of your choice. The 10x eyepieces provide you with a 20mm field of view. The quintuple nosepiece has a slot to accept a polarizer / analyzer. The microscope comes with infinity plan achromat 2x, 4x, 10x, 20x objectives, a 40x objective can be added if needed. A diffusion slier is provided for use with the 2x objective lens. The large XY mechanical stage makes it easy to move your specimen and has low position ergonomic controls. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm. The coarse and fine focus knobs are ergonomically positioned for ease of use. The microscope is powered by a 3 watt koehler illumination system.
You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software - image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
Specifications | |
---|---|
Head: | Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees 80/20 - 0/100 light split |
Eyepieces: | WF10x/20mm focusing eyepieces with eyeguards |
Nosepiece: | Reversed quintuple nosepiece |
Objectives: |
Infinity corrected plan achromat 2x 4x,10x, 40x OR Infinity corrected plan achromat 2x, 4x, 10x, 20x, 40x |
Condenser: | N.A. 1.25 Abbe Condenser with iris diaphragm, diffusion slider |
Stage: | Mechanical XY Stage |
Focusing | Coaxial coarse and fine focusing controls |
Illumination: | Koehler illumination 3 watt LED illumination |
Accessories: | Dust cover, power cord |
Warranty: | 5 Year Mechanical & Electrical |
Camera Specifications | |
---|---|
Optional Screen: | 11.6" Retina Display Screen |
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
The Accu-Scope EXC-350 digital pathology microscope is a high quality laboratory grade microscope. This is configured with a low power scanning objective and diffusion slider. The package includes a trinocular viewing head, c-mount adapter, and camera of your choice. The 10x eyepieces provide you with a 20mm field of view. The quintuple nosepiece has a slot to accept a polarizer / analyzer. The microscope comes with infinity plan achromat 2x, 4x, 10x, 20x objectives, a 40x objective can be added if needed. A diffusion slier is provided for use with the 2x objective lens. The large XY mechanical stage makes it easy to move your specimen and has low position ergonomic controls. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm. The coarse and fine focus knobs are ergonomically positioned for ease of use. The microscope is powered by a 3 watt koehler illumination system.
You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software - image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
Specifications | |
---|---|
Head: | Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees 80/20 - 0/100 light split |
Eyepieces: | WF10x/20mm focusing eyepieces with eyeguards |
Nosepiece: | Reversed quintuple nosepiece |
Objectives: |
Infinity corrected plan achromat 2x 4x,10x, 40x OR Infinity corrected plan achromat 2x, 4x, 10x, 20x, 40x |
Condenser: | N.A. 1.25 Abbe Condenser with iris diaphragm, diffusion slider |
Stage: | Mechanical XY Stage |
Focusing | Coaxial coarse and fine focusing controls |
Illumination: | Koehler illumination 3 watt LED illumination |
Accessories: | Dust cover, power cord |
Warranty: | 5 Year Mechanical & Electrical |
Camera Specifications | |
---|---|
Optional Screen: | 11.6" Retina Display Screen |
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |


Siedentopf trinocular viewing head, inclined at 30°, with an industry leading 50mm-75mm interpupillary distance adjustment and a 180° eyepoint adjustment to accommodate users of different body types.


Each EXC-350 Series microscope features an inward facing 5-position nosepiece with infinity plan objectives. - See more at: http://accu-scope.com/products/exc-350-microscope-series/#sthash.hXs17SCb.dpuf
