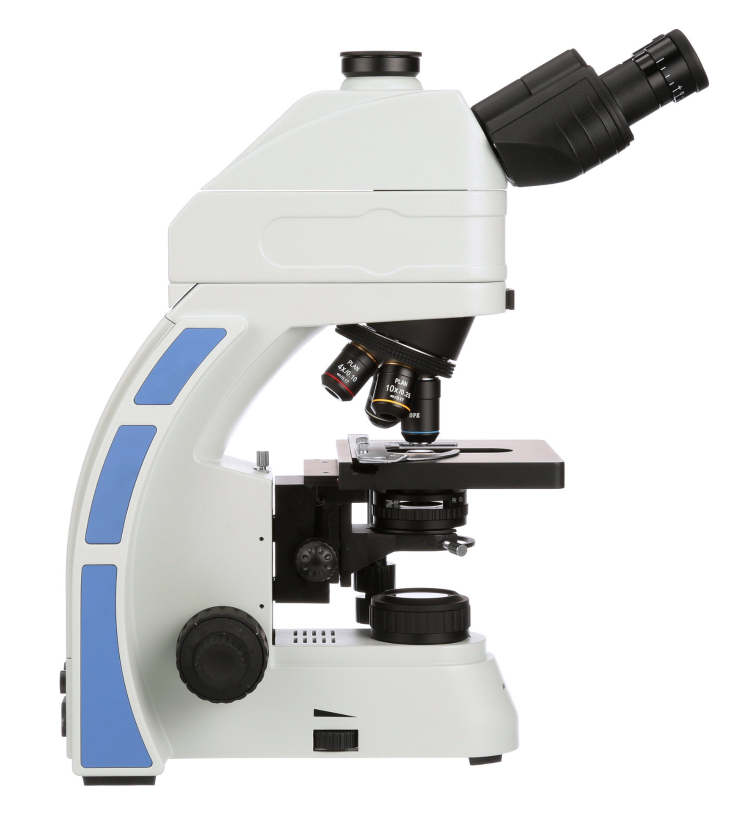

Accu-Scope EXC-350 LED Fluorescence Microscope - Texas Red
- SKU: EXC-350-560
- Trinocular
- Plan Achromat or APO Objectives
- Texas Red LED Fluorescence
- No Warm Up / Cool Down
- 5 Year Mechanical & Electrical Warranty
This high quality fluorescence Texas Red microscope by Accu-Scope makes diagnosis simple and easy. With LED illumination there is no need to wait for warm up, cool down, or bulb changes. Switch between bright-field and fluorescence in a matter of seconds. The LED fluorescence illuminator has a 560nm central wavelength. The microscope comes standard with trinocular head and 10x eyepieces which provide a 20mm field of view. The microscope comes with 4x, 10x, 40x, and 100x oil plan achromat or NIS S-Plan APO objectives. The 1.25 N.A. condenser is fully focusable and has slots for phase sliders. The microscope features a 3-watt variable LED illumination system.
Specifications | |
---|---|
Head: | Trinocular viewing head, inclined 30⁰, 100/0 or 0/100 light split |
Fluorescence: | LED Illuminator for Texas Red w/ 560nm central wavelength |
Eyepieces: | PL 10x/20mm with eyeguards |
Nosepiece: | Reversed, quintuple |
Objectives: |
Infinity Plan Achromatic 4x, 10x, 20x, 100x Oil or Infinity Plan Achromatic NIS S-Plan APO 4x, 10x, 40x, 100x Oil |
Condenser: | N.A. 1.25 Abbe condenser |
Stage: | Mechanical stage, 150 x 140mm with X-Y movement range of 76 x 50mm |
Illumination: | 3 watt LED with variable intensity control |
Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears |
Accessories: | Dust cover, immersion oil & instruction manual included |
Warranty: | 5 Year Mechanical & 5 Year Electrical |
This high quality fluorescence Texas Red microscope by Accu-Scope makes diagnosis simple and easy. With LED illumination there is no need to wait for warm up, cool down, or bulb changes. Switch between bright-field and fluorescence in a matter of seconds. The LED fluorescence illuminator has a 560nm central wavelength. The microscope comes standard with trinocular head and 10x eyepieces which provide a 20mm field of view. The microscope comes with 4x, 10x, 40x, and 100x oil plan achromat or NIS S-Plan APO objectives. The 1.25 N.A. condenser is fully focusable and has slots for phase sliders. The microscope features a 3-watt variable LED illumination system.
Specifications | |
---|---|
Head: | Trinocular viewing head, inclined 30⁰, 100/0 or 0/100 light split |
Fluorescence: | LED Illuminator for Texas Red w/ 560nm central wavelength |
Eyepieces: | PL 10x/20mm with eyeguards |
Nosepiece: | Reversed, quintuple |
Objectives: |
Infinity Plan Achromatic 4x, 10x, 20x, 100x Oil or Infinity Plan Achromatic NIS S-Plan APO 4x, 10x, 40x, 100x Oil |
Condenser: | N.A. 1.25 Abbe condenser |
Stage: | Mechanical stage, 150 x 140mm with X-Y movement range of 76 x 50mm |
Illumination: | 3 watt LED with variable intensity control |
Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears |
Accessories: | Dust cover, immersion oil & instruction manual included |
Warranty: | 5 Year Mechanical & 5 Year Electrical |
