  • SKU: EXC-350-445
$5,172.00 $5,747.00
  • Trinocular
  • Plan Achromat or APO Objectives
  • TB Fluorescence
  • No Warm Up / Cool Down
  • 5 Year Mechanical & Electrical Warranty
Objectives
Quote Request

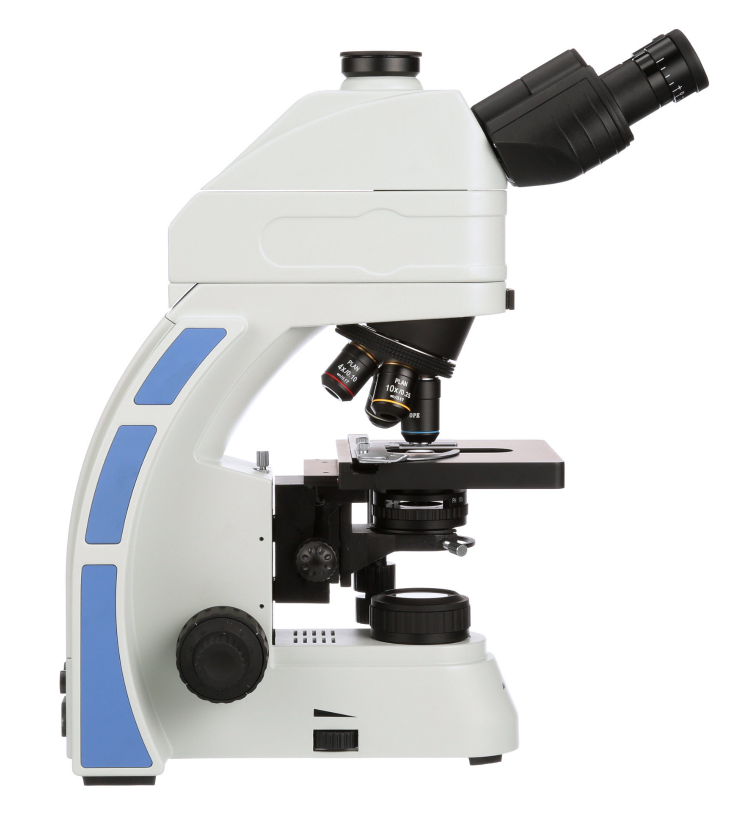

Designed for TB Tuberculosis testing this microscope features and LED fluorescence illuminator.  This high quality fluorescence TB microscope by Accu-Scope makes diagnosis simple and easy. With LED illumination there is no need to wait for warm up, cool down, or bulb changes. Switch between bright-field and fluorescence in a matter of seconds. The LED fluorescence illuminator has a 455nm central wavelength.  The microscope comes standard with trinocular head and 10x eyepieces which provide a 20mm field of view. The microscope comes with 4x, 10x, 40x, and 100x oil plan achromat or NIS S-Plan APO objectives. The 1.25 N.A. condenser is fully focusable and has slots for phase sliders. The microscope features a 3-watt variable LED illumination system.



Specifications
Head: Trinocular viewing head, inclined 30⁰, 100/0 or 0/100 light split
Fluorescence: LED Illuminator for TB w/ 455nm central wavelength
Eyepieces: PL 10x/20mm with eyeguards
Nosepiece: Reversed, quintuple
Objectives:

Infinity Plan Achromatic 4x, 10x, 20x, 100x Oil

or

Infinity Plan Achromatic NIS S-Plan APO 4x, 10x, 40x, 100x Oil

Condenser: N.A. 1.25 Abbe condenser
Stage: Mechanical stage, 150 x 140mm with X-Y movement range of 76 x 50mm
Illumination: 3 watt LED with variable intensity control
Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & 5 Year Electrical
