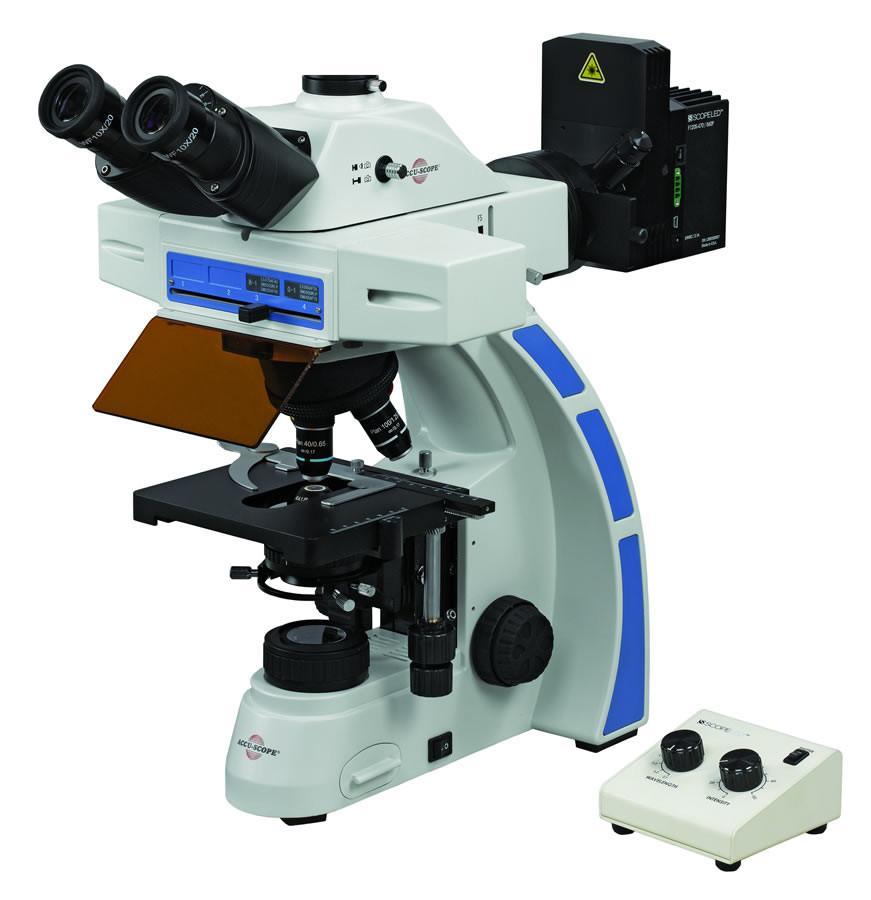

Accu-Scope EXC-350 LED Fluorescence Microscope

Recently viewed

Accu-Scope EXC-350 LED Fluorescence Microscope

Accu-Scope EXC-350 LED Fluorescence Microscope

  • SKU: EXC-350-SCOPELED-1
$4,910.00 $5,788.00
  • Trinocular
  • Plan Achromat Objectives
  • LED Fluorescence Illumination
  • 1-4 Filters of Your Choice
  • 5 Year Mechanical & Electrical Warranty
Wavelengths
Request Quote
  • Order within

The new Accu-Scope EXC-350 microscope is configured for fluorescence microscopy. This microscope comes standard with a trincoular head and features plan achromat 4x, 10x, 40x, and 100x oil objectives. We can customize the objectives further to meet your specific needs. The 10x eyepieces offer a wide 20mm field of view. The microscope has LED brightfield koehler illumination as well as LED fluorescence illumination. With LED fluorescence illumination you no longer have to wait for the lamp to warm up / cool down, no bulb changes, and little to no heat! This microscope can come with one - four fluorescence wavelengths of your choice. See our chart below the LED fluorescence attachment specification box. We can customize this microscope with a camera or other accessories, please contact us!

 ***If ordering online please specify you filter selections in the comment box at checkout***

Specifications:
Head: Trinocular, Siedentopf type. Inclined 30°, rotatable 360°. Eyepoint height can be adjusted 180° to accommodate users of different builds. Interpupillary distance adjustment 50mm-75mm.
Eyepieces: WF 10x/20mm focusing eyepieces. Eyepieces can be locked-in. Eyepiece accepts a 26.5mm reticle. Optional 12.5x, 15x and 20x eyepieces are also available.
Nosepiece: Rear facing quintuple, ball bearing nosepiece with positive click stops to ensure parcentration. A quadruple nosepiece is also available.
Objectives: Standard configurations include Infinity Plan achromat 4x, 10x, 40xR* and 100xR oil* (*spring-loaded).
Stage: Stage size 150mm x 110mm with X-Y movement range of 76mm X 50mm.
Condenser: Abbe condenser N.A. 1.25 oil (with slots for sliders) on a rack and pinion with iris diaphragm.
Illumination: 3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v.
Focusing:
Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
Accessories: Dust cover, immersion oil and instruction manual
Warranty: 5 Year Mechanical & Electrical

LED Fluorescence Attachment:
350-3231-C 4 position reflected illuminator with field iris, shutter slider, UV protection plate for use with ScopeLED or Metal Halide systems
LED Illuminatior: Your Choice: 1,2,3,or 4 ScopeLED fixed wavelength illuminator w/ control pod and power source
SLAF-OL1 ScopeLED collimating adapter for EXC-500/EXC-350

Available Filters:
350-49028 DAPI, Exciter: 395/25x, Dichoric: T425lpxr, Emitter: ET 460/50m
350-39002 GFP, FITC, Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT535/40m
350-39004 TRITC, Exciter: AT540/25x, Dichroic: AT565DC, Emitter: AT605/55m
350-39006 Texas Red, Exciter: AT575/30x, Dichroic: AT600DC, Emitter: AT640/60m
350-39009 Acridine Orange, Di-8-ANEPPS, Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT620/60m
