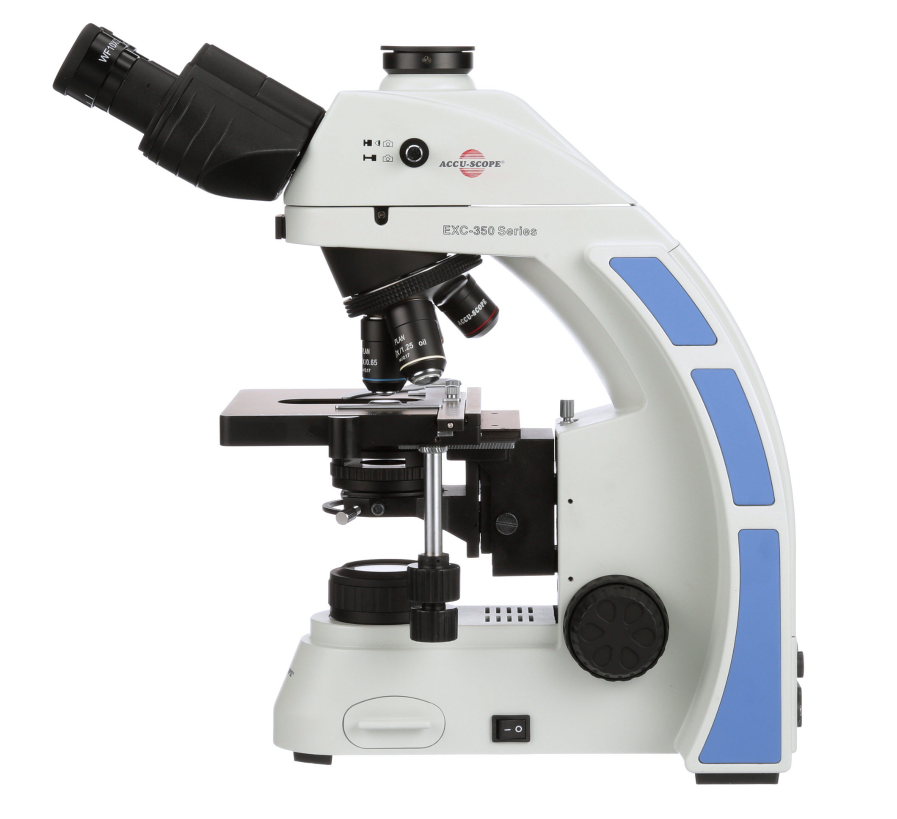

Accu-Scope EXC-350 Hematology Microscope
- SKU: EXC-350-HEMA
- Trinocular Head
- Plan Achromat 10x, 40x, 50x Oil, 100x Oil Objectives
- Ergonomically Positioned Controls
- LED Illumination
- 5 Year Mechanical & Electrical Warranty
The Accu-Scope EXC-350 hematology microscope is a high quality laboratory grade microscope. This microscope comes standard with a trinocular viewing head so you can add a camera at anytime. The 10x eyepieces provide you with a 20mm field of view. The quintuple nosepiece has a slot to accept a polarizer / analyzer. High resolution images are produced with the infinity plan achromat 10x, 40x, 50x Oil, and 100x Oil objectives. The large XY mechanical stage makes it easy to move your specimen and has low position ergonomic controls. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm. The coarse and fine focus knobs are ergonomically positioned for ease of use. The microscope is powered by a 3 watt koehler illumination system. This microscope can be upgraded to phase contrast, fluorescence, and more!
Specifications | |
---|---|
Head: | Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees 80/20 - 0/100 light split |
Eyepieces: | WF10x/20mm focusing eyepieces with eyeguards |
Nosepiece: | Reversed quintuple nosepiece |
Objectives: |
Infinity corrected plan achromat 10x, 40x, 50x Oil, 100x Oil |
Condenser: | N.A. 1.25 Abbe Condenser with iris diaphragm |
Stage: | Mechanical XY Stage |
Focusing | Coaxial coarse and fine focusing controls |
Illumination: | Koehler illumination 3 watt LED illumination |
Accessories: | Dust cover, power cord |
Warranty: | 5 Year Mechanical & Electrical |
