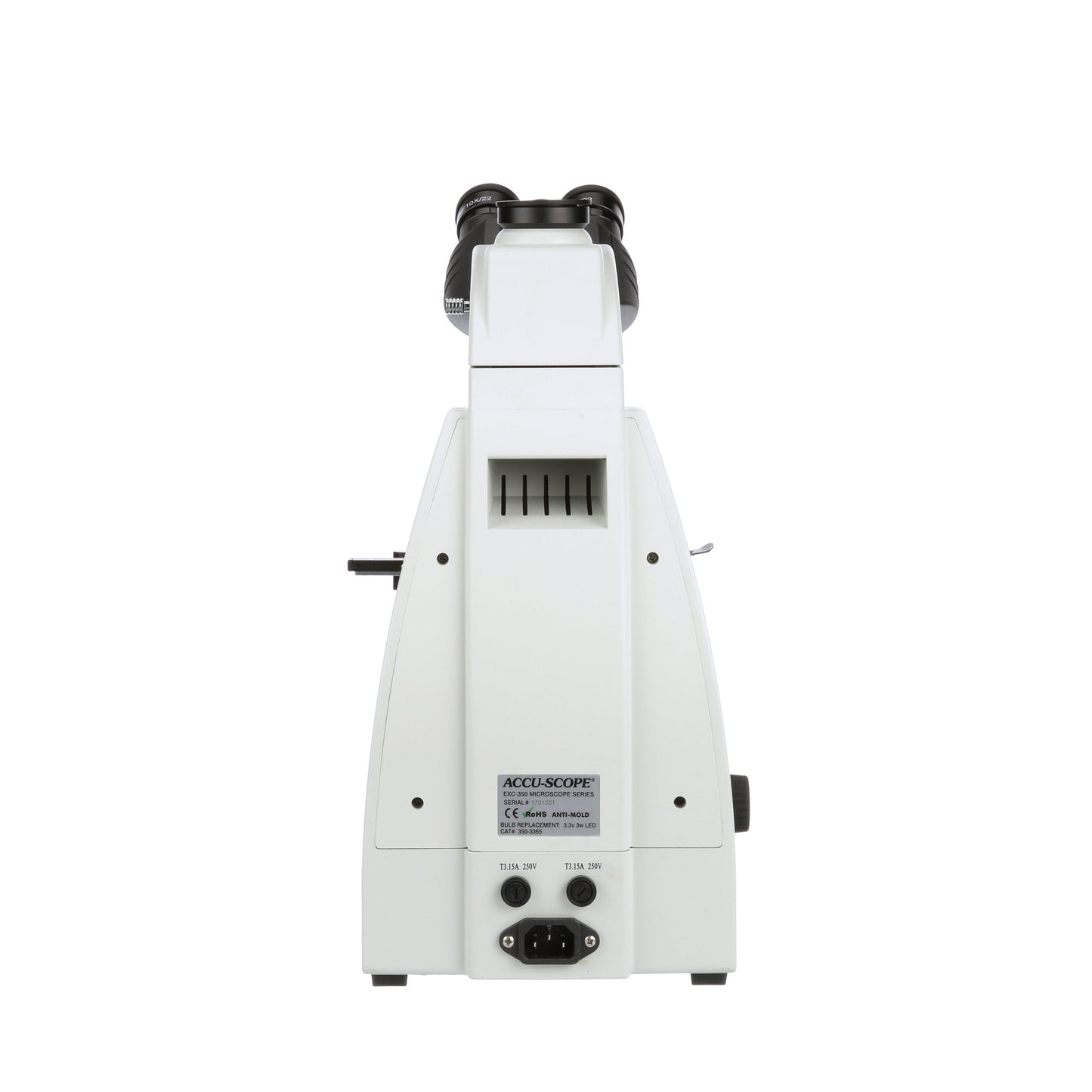

Accu-Scope EXC-350 Gout Analysis Microscope

Recently viewed

Accu-Scope EXC-350 Gout Analysis Microscope
Accu-Scope EXC-350 Gout Analysis Microscope
Accu-Scope EXC-350 Gout Analysis Microscope
Accu-Scope EXC-350 Gout Analysis Microscope

Accu-Scope EXC-350 Gout Analysis Microscope

  • SKU: EXC-350-GOUT
$2,619.00 $2,977.00
  • Trinocular Head
  • Plan Achromat or S-Plan APO Objectives
  • Complete w/ Gout Kit
  • Koehler LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Objectives
Quote Request

The Accu-Scope EXC-350 Gout anlaysis microscope is a high quality laboratory grade microscope. This microscope comes standard with a trinocular viewing head so you can add a camera at anytime. The 10x eyepieces provide you with a 20mm field of view. The complete gout kit includes analyzer, rotatable polarizer with an insertable red compensator plate. You can choose from infinity plan achromat or NIS S-Plan APO 4x, 10x, 40x, 100x oil objective lenses. The large XY mechanical stage makes it easy to move your specimen and has low position ergonomic controls. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm. The coarse and fine focus knobs are ergonomically positioned for ease of use. The microscope is powered by a 3 watt koehler illumination system.

Specifications
Head: Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees 80/20 - 0/100 light split
Eyepieces: WF10x/20mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece
Gout Kit: Analyzer, Rotatable Polarizer, Insertable Red Compensator Plate
Objectives:

Infinity corrected plan achromat 4x, 10x, 40x, 100x Oil

OR

Infinity corrected NIS S-Plan APO 4x, 10x, 40x, 100x Oil

Condenser: N.A. 1.25 Abbe Condenser with iris diaphragm
Stage: Mechanical XY Stage
Focusing Coaxial coarse and fine focusing controls
Illumination: Koehler illumination 3 watt LED illumination
Accessories: Dust cover, power cord
Warranty: 5 Year Mechanical & Electrical

The Accu-Scope EXC-350 Gout anlaysis microscope is a high quality laboratory grade microscope. This microscope comes standard with a trinocular viewing head so you can add a camera at anytime. The 10x eyepieces provide you with a 20mm field of view. The complete gout kit includes analyzer, rotatable polarizer with an insertable red compensator plate. You can choose from infinity plan achromat or NIS S-Plan APO 4x, 10x, 40x, 100x oil objective lenses. The large XY mechanical stage makes it easy to move your specimen and has low position ergonomic controls. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm. The coarse and fine focus knobs are ergonomically positioned for ease of use. The microscope is powered by a 3 watt koehler illumination system.

Specifications
Head: Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees 80/20 - 0/100 light split
Eyepieces: WF10x/20mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece
Gout Kit: Analyzer, Rotatable Polarizer, Insertable Red Compensator Plate
Objectives:

Infinity corrected plan achromat 4x, 10x, 40x, 100x Oil

OR

Infinity corrected NIS S-Plan APO 4x, 10x, 40x, 100x Oil

Condenser: N.A. 1.25 Abbe Condenser with iris diaphragm
Stage: Mechanical XY Stage
Focusing Coaxial coarse and fine focusing controls
Illumination: Koehler illumination 3 watt LED illumination
Accessories: Dust cover, power cord
Warranty: 5 Year Mechanical & Electrical
Accu-Scope EXC-350 Microscope Brochure Siedentopf trinocular viewing head, inclined at 30°, with an industry leading 50mm-75mm interpupillary distance adjustment and a 180° eyepoint adjustment to accommodate users of different body types.
Siedentopf trinocular viewing head, inclined at 30°, with an industry leading 50mm-75mm interpupillary distance adjustment and a 180° eyepoint adjustment to accommodate users of different body types.EXC-350 Integrated LED FluorescenceA wide variety of options are available for fluorescence applications including S-APO objectives, an integrated LED fluorescence illuminator, or a 4-position reflected illuminator with a ScopeLED® fluorescence illuminator.EXC-350 5-position nosepiece
Each EXC-350 Series microscope features an inward facing 5-position nosepiece with infinity plan objectives. - See more at: http://accu-scope.com/products/exc-350-microscope-series/#sthash.hXs17SCb.dpuf
