Description
The new Accu-Scope EXC-350 microscope is configured for fluorescence microscopy with a mercury light source. This microscope comes standard with a trincoular head and features plan achromat 4x, 10x, 40x, and 100x oil objectives. We can customize the objectives further to meet your specific needs. The 10x eyepieces offer a wide 20mm field of view. The microscope has LED brightfield koehler illumination. This fluorescence microscope comes with a mercury power supply, lamphouse, and mercury bulb. This microscope can accommodate one - four fluorescence wavelengths of your choice. See our chart below the fluorescence attachment specification box for filter options. We can customize this microscope with a camera or other accessories, please contact us!
***If ordering online please specify you filter selections in the comment box at checkout***
| Specifications: | |
|---|---|
| Head: | Trinocular, Siedentopf type. Inclined 30°, rotatable 360°. Eyepoint height can be adjusted 180° to accommodate users of different builds. Interpupillary distance adjustment 50mm-75mm. |
| Eyepieces: | WF 10x/20mm focusing eyepieces. Eyepieces can be locked-in. Eyepiece accepts a 26.5mm reticle. Optional 12.5x, 15x and 20x eyepieces are also available. |
| Nosepiece: | Rear facing quintuple, ball bearing nosepiece with positive click stops to ensure parcentration. A quadruple nosepiece is also available. |
| Objectives: | Standard configurations include Infinity Plan achromat 4x, 10x, 40xR* and 100xR oil* (*spring-loaded). |
| Stage: | Stage size 150mm x 110mm with X-Y movement range of 76mm X 50mm. |
| Condenser: | Abbe condenser N.A. 1.25 oil (with slots for sliders) on a rack and pinion with iris diaphragm. |
| Illumination: | 3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v. |
| Focusing: |
Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear. |
| Accessories: | Dust cover, immersion oil and instruction manual |
| Warranty: | 5 Year Mechanical & Electrical |
| 350-3231 | 4 position reflected illuminator with field iris, shutter slider, UV protection plate for use with ScopeLED or Metal Halide systems |
| 350-MLH | Mercury lamphouse, collector lens system and socket |
| 350-3233 | 100 Watt Mercury Power Supply |
| 3254-U | Ushio 100 watt mercury bulb |
| Available Filters: | |
| 350-49028 | DAPI, Exciter: 395/25x, Dichoric: T425lpxr, Emitter: ET 460/50m |
| 350-39002 | GFP, FITC, Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT535/40m |
| 350-39004 | TRITC, Exciter: AT540/25x, Dichroic: AT565DC, Emitter: AT605/55m |
| 350-39006 | Texas Red, Exciter: AT575/30x, Dichroic: AT600DC, Emitter: AT640/60m |
| 350-39009 | Acridine Orange, Di-8-ANEPPS, Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT620/60m |

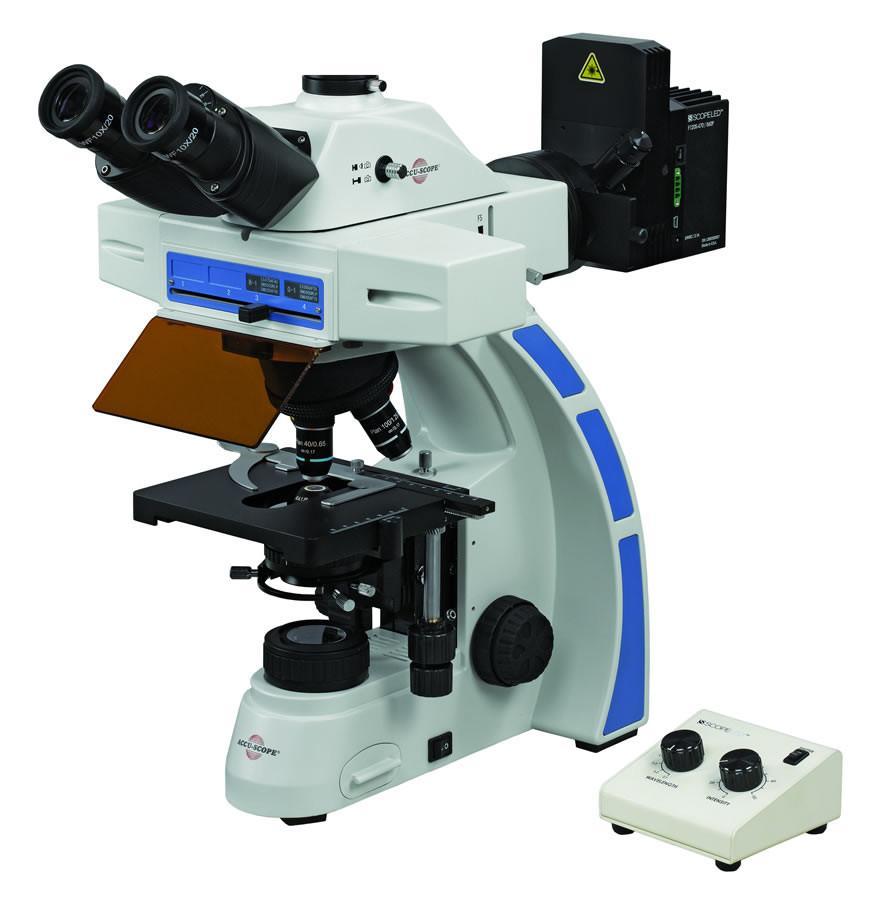

***Photo shows LED fluorescence power supply / lamphouse***
