Accu-Scope EXC-350 Fluorescence Digital Microscope - Mercury

Recently viewed

Accu-Scope EXC-350 Fluorescence Digital Microscope - Mercury
Accu-Scope EXC-350 Fluorescence Digital Microscope - Mercury

Accu-Scope EXC-350 Fluorescence Digital Microscope - Mercury

  • SKU: EXC-350-M-1-1.3
$5,447.00 $6,400.00
  • Trinocular
  • Plan Achromat Objectives
  • Mercury Fluorescence Illumination
  • Choose Your Filters & Camera
  • 5 Year Mechanical & Electrical Warranty
Wavelengths
Camera
Request Quote
  • Order within

The new Accu-Scope EXC-350 microscope is configured for fluorescence microscopy. This microscope comes standard with a trincoular head and features plan achromat 4x, 10x, 40x, and 100x oil objectives. We can customize the objectives further to meet your specific needs. The 10x eyepieces offer a wide 20mm field of view. The microscope has LED brightfield koehler illumination his fluorescence microscope comes with a mercury power supply, lamp-house, and mercury bulb. This microscope can accommodate one - four fluorescence wavelengths of your choice. See our chart below the fluorescence attachment specification box for filter options. We can customize this microscope with a camera or other accessories, please contact us!

This microscope package includes a c-mount adapter and fluorescence low-light camera of your choice. Choose between a 1.3 M.P. or 3.1 M.P. fluorescence appropriate camera. We can provide additional camera options if you need!

 ***If ordering online please specify you filter selections in the comment box at checkout***

Specifications:
Head: Trinocular, Siedentopf type. Inclined 30°, rotatable 360°. Eyepoint height can be adjusted 180° to accommodate users of different builds. Interpupillary distance adjustment 50mm-75mm.
Eyepieces: WF 10x/20mm focusing eyepieces. Eyepieces can be locked-in. Eyepiece accepts a 26.5mm reticle. Optional 12.5x, 15x and 20x eyepieces are also available.
Nosepiece: Rear facing quintuple, ball bearing nosepiece with positive click stops to ensure parcentration. A quadruple nosepiece is also available.
Objectives: Standard configurations include Infinity Plan achromat 4x, 10x, 40xR* and 100xR oil* (*spring-loaded).
Stage: Stage size 150mm x 110mm with X-Y movement range of 76mm X 50mm.
Condenser: Abbe condenser N.A. 1.25 oil (with slots for sliders) on a rack and pinion with iris diaphragm.
Illumination: 3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v.
Focusing:
Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
Accessories: Dust cover, immersion oil and instruction manual
Warranty: 5 Year Mechanical & Electrical

Mercury Fluorescence Attachment:
350-3231-C 4 position reflected illuminator with field iris, shutter slider, UV protection plate
Mercury: Power Supply, Lamphouse, Bulb

FILTERS:
350-49028 DAPI, Exciter: 395/25x, Dichoric: T425lpxr, Emitter: ET 460/50m
350-39002 GFP, FITC, Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT535/40m
350-39004 TRITC, Exciter: AT540/25x, Dichroic: AT565DC, Emitter: AT605/55m
350-39006 Texas Red, Exciter: AT575/30x, Dichroic: AT600DC, Emitter: AT640/60m
350-39009 Acridine Orange, Di-8-ANEPPS, Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT620/60m



 MT1400CK Camera 1.3 M.P.:
  • Image Sensor: 1/3" Sony Super CMOS camera chip model: Sony IMX035
  • Scan Mode:progressive
  • Pixel Size: 3.63micron x 3.63micron
  • Resolution: 1.3MP
  • G Sensitivity: 280mV
  • Filter: RGB Bayer Pattern
  • Port: Standard C-Mount
  • Low-speed Readout: Yes
  • A/D conversion: 12 bit
  • Exposure Control: automatic/manual
  • Exposure Time: 0.1 - 60 minutes
  • Angle Light Control: Yes
  • White Balance: automatic/manual
  • Parameter: image size, bright, gain, exposure, RGB
  • Data interface: USB2.0/480Mb/s
  • Operational Temperature: 0 - 60 (C)
  • Operational Humidity: 45 - 85%
  • Storage Temperature: -20-70 °C
  • Power Supply: Via USB 2.0 connector
  • USB Cable: 98" (2.5m)
  •

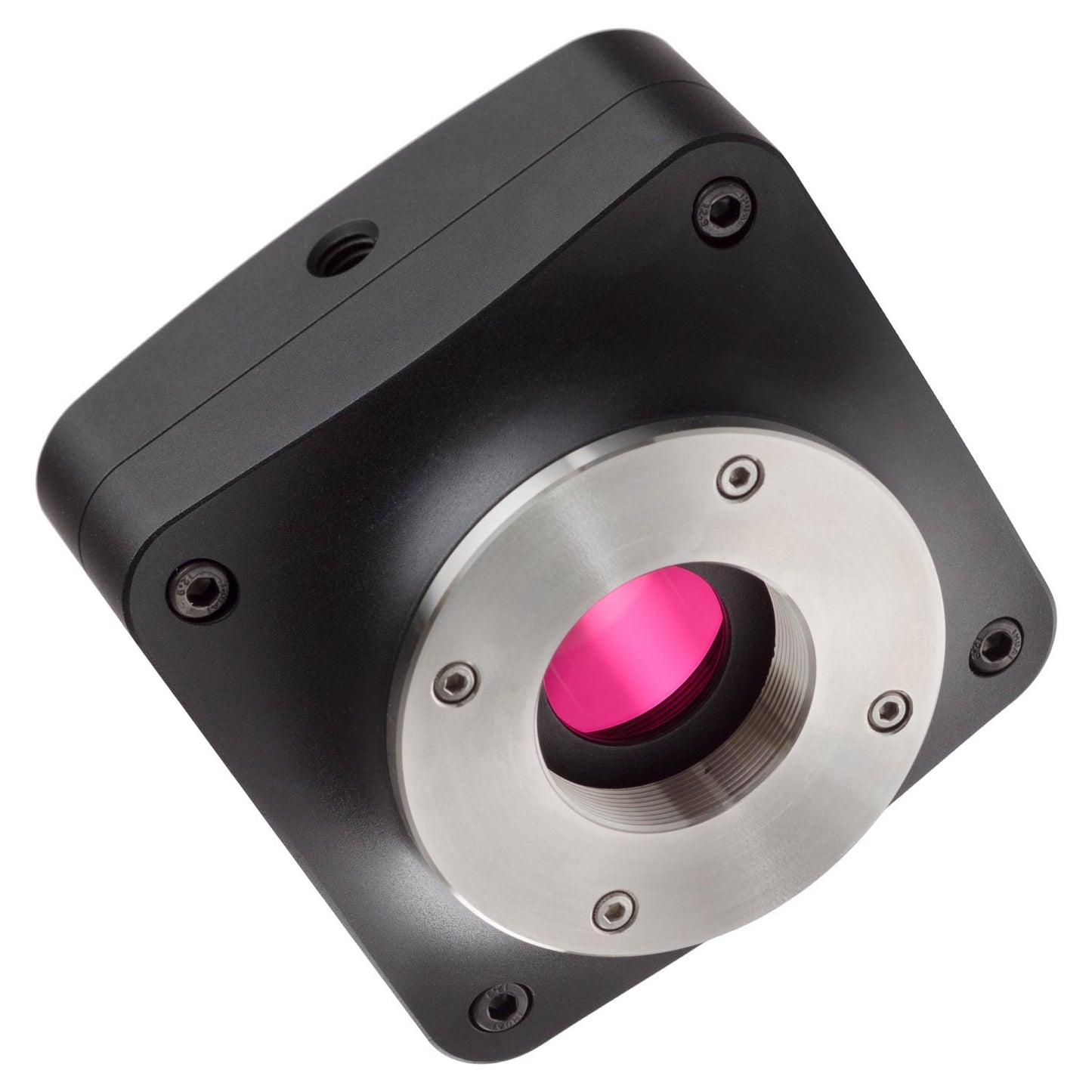

     MU313GSCK Camera 3.1 M.P.:
  • Sony IMX265 Pregius Back-Illuminated CMOS Global Shutter
  • Pixel Size: 3.45micron x 3.45micron
  • Resolution: 3.1MP
  • Sensitivity: 1146mv @ 1/30s
  • Sensor Size: 1/1.8"  7.07mm x 5.30mm 8.84mm diagonal
  • Aspect Ration: 4:3
  • Spectral Range: 380nm - 650nm
  • Maximum Frame Rate(s): 53fps @ 2048 x 1536   : 85fps @ 1024 x 768
  • Exposure Time: 0.1 - 15s
  • Connectivity: USB 3.0
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, MAC OS 10.8+, Linux Kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB 3.0 port for maximum speed
  • Features Windows: Live Video Preview, Captures Images / Videos, Time-Lapse, Exposure & White-Balance, Dark-field Correction, Digital Binning, Image Processing, Measurement Tools, Segmentation & Counting Tools, Image-Stitching, Extended  Depth of Field, HDR, Fluorescence Color Mapping.
  • Features Mac / Linux: Live Preview, Image / Video Capture, Exposure & White Balance.
  • The new Accu-Scope EXC-350 microscope is configured for fluorescence microscopy. This microscope comes standard with a trincoular head and features plan achromat 4x, 10x, 40x, and 100x oil objectives. We can customize the objectives further to meet your specific needs. The 10x eyepieces offer a wide 20mm field of view. The microscope has LED brightfield koehler illumination his fluorescence microscope comes with a mercury power supply, lamp-house, and mercury bulb. This microscope can accommodate one - four fluorescence wavelengths of your choice. See our chart below the fluorescence attachment specification box for filter options. We can customize this microscope with a camera or other accessories, please contact us!

    This microscope package includes a c-mount adapter and fluorescence low-light camera of your choice. Choose between a 1.3 M.P. or 3.1 M.P. fluorescence appropriate camera. We can provide additional camera options if you need!

     ***If ordering online please specify you filter selections in the comment box at checkout***

    Specifications:
    Head: Trinocular, Siedentopf type. Inclined 30°, rotatable 360°. Eyepoint height can be adjusted 180° to accommodate users of different builds. Interpupillary distance adjustment 50mm-75mm.
    Eyepieces: WF 10x/20mm focusing eyepieces. Eyepieces can be locked-in. Eyepiece accepts a 26.5mm reticle. Optional 12.5x, 15x and 20x eyepieces are also available.
    Nosepiece: Rear facing quintuple, ball bearing nosepiece with positive click stops to ensure parcentration. A quadruple nosepiece is also available.
    Objectives: Standard configurations include Infinity Plan achromat 4x, 10x, 40xR* and 100xR oil* (*spring-loaded).
    Stage: Stage size 150mm x 110mm with X-Y movement range of 76mm X 50mm.
    Condenser: Abbe condenser N.A. 1.25 oil (with slots for sliders) on a rack and pinion with iris diaphragm.
    Illumination: 3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v.
    Focusing:
    Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
    Accessories: Dust cover, immersion oil and instruction manual
    Warranty: 5 Year Mechanical & Electrical

    Mercury Fluorescence Attachment:
    350-3231-C 4 position reflected illuminator with field iris, shutter slider, UV protection plate
    Mercury: Power Supply, Lamphouse, Bulb

    FILTERS:
    350-49028 DAPI, Exciter: 395/25x, Dichoric: T425lpxr, Emitter: ET 460/50m
    350-39002 GFP, FITC, Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT535/40m
    350-39004 TRITC, Exciter: AT540/25x, Dichroic: AT565DC, Emitter: AT605/55m
    350-39006 Texas Red, Exciter: AT575/30x, Dichroic: AT600DC, Emitter: AT640/60m
    350-39009 Acridine Orange, Di-8-ANEPPS, Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT620/60m



     MT1400CK Camera 1.3 M.P.:
  • Image Sensor: 1/3" Sony Super CMOS camera chip model: Sony IMX035
  • Scan Mode:progressive
  • Pixel Size: 3.63micron x 3.63micron
  • Resolution: 1.3MP
  • G Sensitivity: 280mV
  • Filter: RGB Bayer Pattern
  • Port: Standard C-Mount
  • Low-speed Readout: Yes
  • A/D conversion: 12 bit
  • Exposure Control: automatic/manual
  • Exposure Time: 0.1 - 60 minutes
  • Angle Light Control: Yes
  • White Balance: automatic/manual
  • Parameter: image size, bright, gain, exposure, RGB
  • Data interface: USB2.0/480Mb/s
  • Operational Temperature: 0 - 60 (C)
  • Operational Humidity: 45 - 85%
  • Storage Temperature: -20-70 °C
  • Power Supply: Via USB 2.0 connector
  • USB Cable: 98" (2.5m)
  •

     MU313GSCK Camera 3.1 M.P.:
  • Sony IMX265 Pregius Back-Illuminated CMOS Global Shutter
  • Pixel Size: 3.45micron x 3.45micron
  • Resolution: 3.1MP
  • Sensitivity: 1146mv @ 1/30s
  • Sensor Size: 1/1.8"  7.07mm x 5.30mm 8.84mm diagonal
  • Aspect Ration: 4:3
  • Spectral Range: 380nm - 650nm
  • Maximum Frame Rate(s): 53fps @ 2048 x 1536   : 85fps @ 1024 x 768
  • Exposure Time: 0.1 - 15s
  • Connectivity: USB 3.0
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, MAC OS 10.8+, Linux Kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB 3.0 port for maximum speed
  • Features Windows: Live Video Preview, Captures Images / Videos, Time-Lapse, Exposure & White-Balance, Dark-field Correction, Digital Binning, Image Processing, Measurement Tools, Segmentation & Counting Tools, Image-Stitching, Extended  Depth of Field, HDR, Fluorescence Color Mapping.
  • Features Mac / Linux: Live Preview, Image / Video Capture, Exposure & White Balance.
