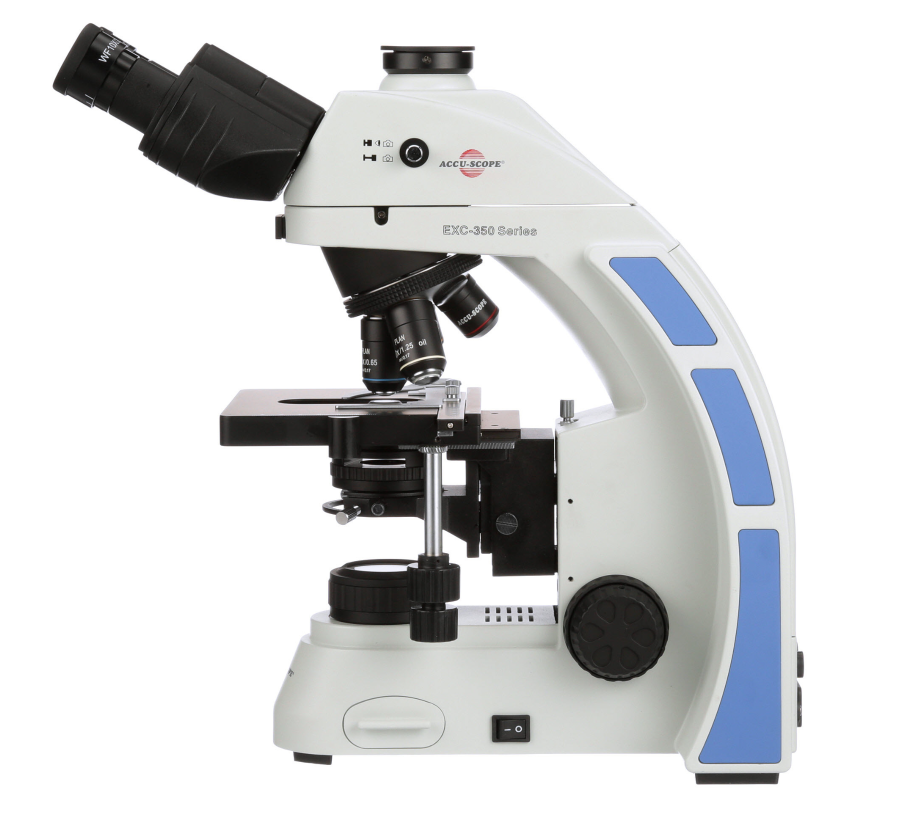

Accu-Scope EXC-350 Digital Microscope Package
- SKU: EXC-350-PA-HD
- Camera With or Without Screen
- Plan Achromat or S-APO 4x, 10x, 40x, 100x Oil Objectives
- Laboratory Grade Microscope
- Koehler LED Illumination
- 5 Year Mechanical & Electrical Warranty
The Accu-Scope EXC-350 microscope is a high quality full size laboratory grade microscope. This digital packing includes your camera of choice and includes everything you need - c-mount adapter, & trinocular viewing head. The microscope comes with a pair of 10x eyepieces which have a large 20mm field of view. The quintuple nosepiece comes standard with Infinity corrected plan achromat 4x, 10x, 40x, and 100x oil. We can add additional objectives if needed. The microscope can be upgraded to fluorescence or phase contrast. The 1.25 N.A. condenser is fully focusable and has a slot for sliders. The microscope features a bright 3 watt Koehler LED illuminator.
You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software - image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
Specifications | |
---|---|
Head: | Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees 80/20 - 0/100 light split & C-Mount |
Eyepieces: | WF10x/20mm focusing eyepieces with eyeguards |
Nosepiece: | Reversed quintuple nosepiece |
Objectives: |
Infinity corrected plan achromat 4x, 10x, 40x, 100x Oil OR Infinity corrected NIS S-Plan APO 4x, 10x, 40x, 100x Oil |
Condenser: | N.A. 1.25 Abbe Condenser with iris diaphragm |
Stage: | Mechanical XY Stage |
Focusing | Coaxial coarse and fine focusing controls |
Illumination: | Koehler illumination 3 watt LED illumination |
Accessories: | Dust cover, power cord |
Warranty: | 5 Year Mechanical & Electrical |
Camera Specifications | |
---|---|
Optional Screen: | 11.6" Retina Display Screen |
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
