Accu-Scope EXC-350 Digital Hematology Microscope
Accu-Scope EXC-350 Digital Hematology Microscope

Accu-Scope EXC-350 Digital Hematology Microscope

  • SKU: EXC-350-HEMA-HD
$2,985.00 $3,393.00
  • Choose With or Without Screen
  • Plan Achromat 10x, 40x, 50x Oil, 100x Oil Objectives
  • Ergonomically Positioned Controls
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Camera
Quote Request

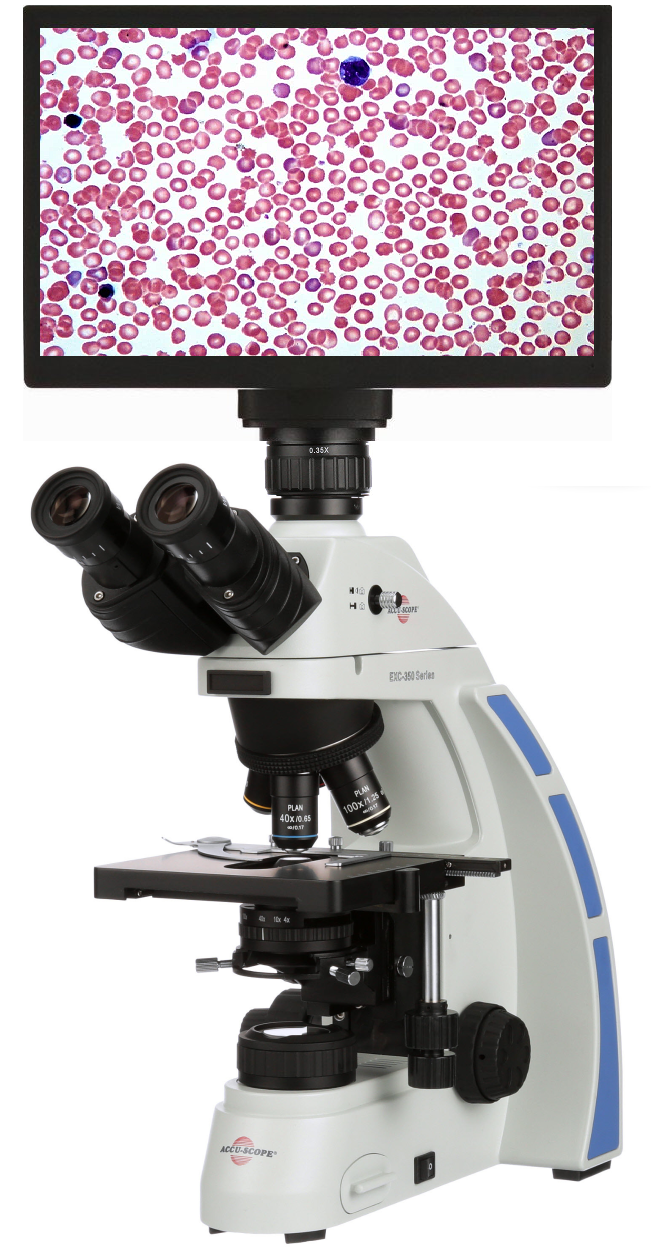

The Accu-Scope EXC-350 digital hematology microscope is a high quality laboratory grade microscope. This microscope comes standard with a trinocular viewing head, c-mount adapter, and choice of camera. The 10x eyepieces provide you with a 20mm field of view. The quintuple nosepiece has a slot to accept a polarizer / analyzer. High resolution images are produced with the infinity plan achromat 10x, 40x, 50x Oil, and 100x Oil objectives. The large XY mechanical stage makes it easy to move your specimen and has low position ergonomic controls. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm. The coarse and fine focus knobs are ergonomically positioned for ease of use. The microscope is powered by a 3 watt koehler illumination system. This microscope can be upgraded to phase contrast, fluorescence, and more!

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software -  image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Trinocular Viewing Head, inclined 30 degrees, rotatable 360 degrees 80/20 - 0/100 light split & C-Mount
Eyepieces: WF10x/20mm focusing eyepieces with eyeguards
Nosepiece: Reversed quintuple nosepiece
Objectives:

Infinity corrected plan achromat 10x, 40x, 50x Oil, 100x Oil



Condenser: N.A. 1.25 Abbe Condenser with iris diaphragm
Stage: Mechanical XY Stage
Focusing Coaxial coarse and fine focusing controls
Illumination: Koehler illumination 3 watt LED illumination
Accessories: Dust cover, power cord
Warranty: 5 Year Mechanical & Electrical


 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
