Accu-Scope EXC-120 Phase Contrast Digital Microscope

Recently viewed

Accu-Scope EXC-120 Phase Contrast Digital Microscope

Accu-Scope EXC-120 Phase Contrast Digital Microscope

  • SKU: EXC-123-PH-300-HD
$2,282.00 $2,733.00
  • Choose With or Without Screen
  • Phase 10x, 20x, 40x, 100x Oil Objectives
  • Phase Turret Condenser
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Camera
Request Quote

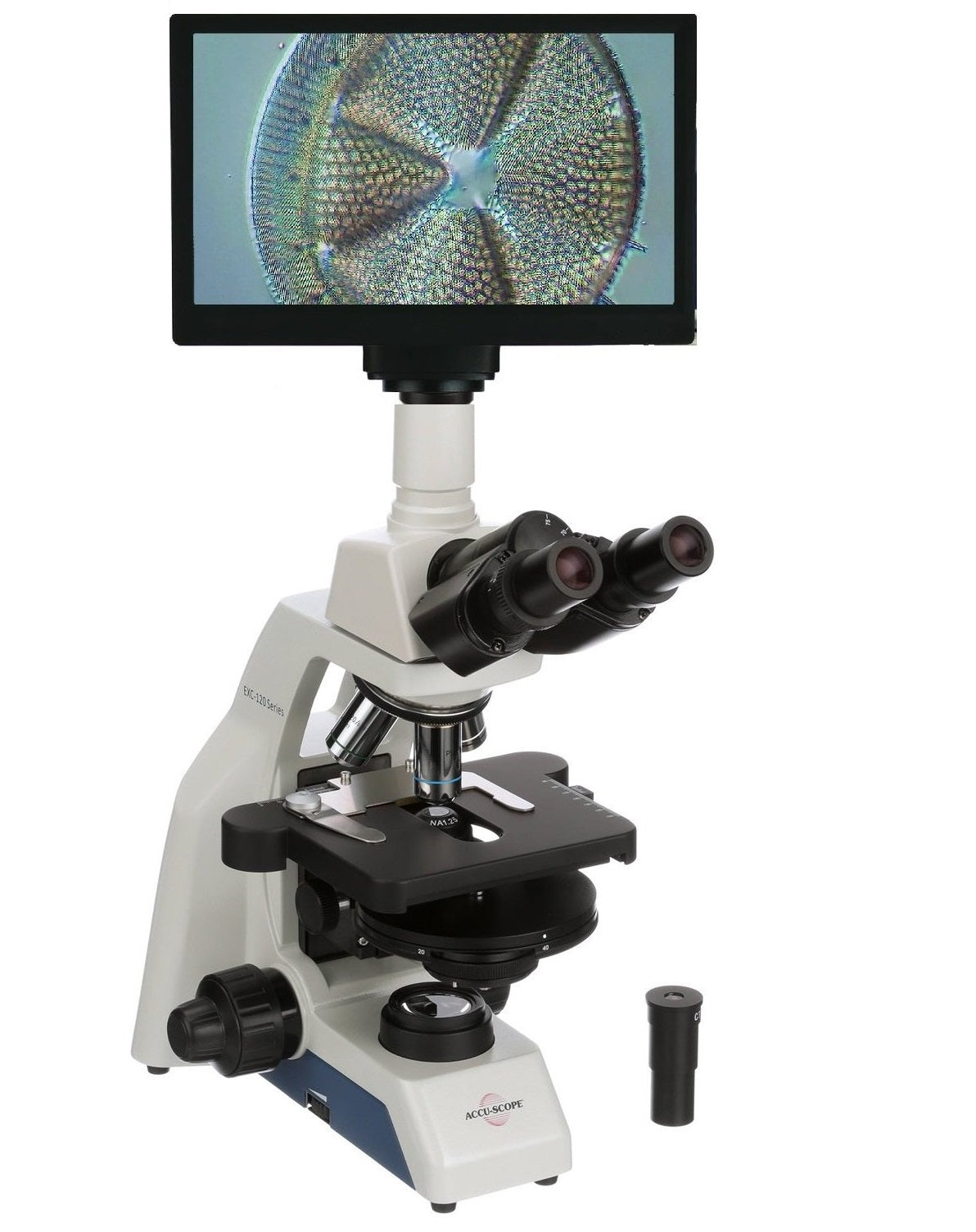

The Accu-Scope EXC-120 phase contrast digital microscope is best in class. This microscope comes loaded with features that we never before seen at this price point! The microscope has a rackless mechanical stage, built in cord wrap, carry handle LED illumination, and all metal gears. This phase package comes with plan achromat phase contrast 10x, 20x, 40x, and 100x oil objectives and is equipped with a phase contrast turret condenser. The high contrast objective lenses are mounted so that the front lens is flush, making them easy to clean without a service technician! This microscope is ideal for transparent specimens like wastewater.

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software -  image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications:
Head: Trinocular, Inclined 30° and rotatable 360°, Interpupillary distance adjustment 55-75 & c-mount
Eyepieces: WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent tampering and accept 19mm reticles
Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
Objectives: DIN Plan Achromat Phase 10x, 20x, 40x, 100x Oil
Stage: Stage size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm
Condenser: Phase Turret Condenser - Brightfield & Phase
Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
Focusing: Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears
Illumination: Variable LED illumination; bulb life rated for 20,000 hours
Accessories: Dust cover, immersion oil and instruction manual included
Warranty: 5 year limited warranty for parts, labor and electronic components.
1 year warranty on LED bulb


 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
