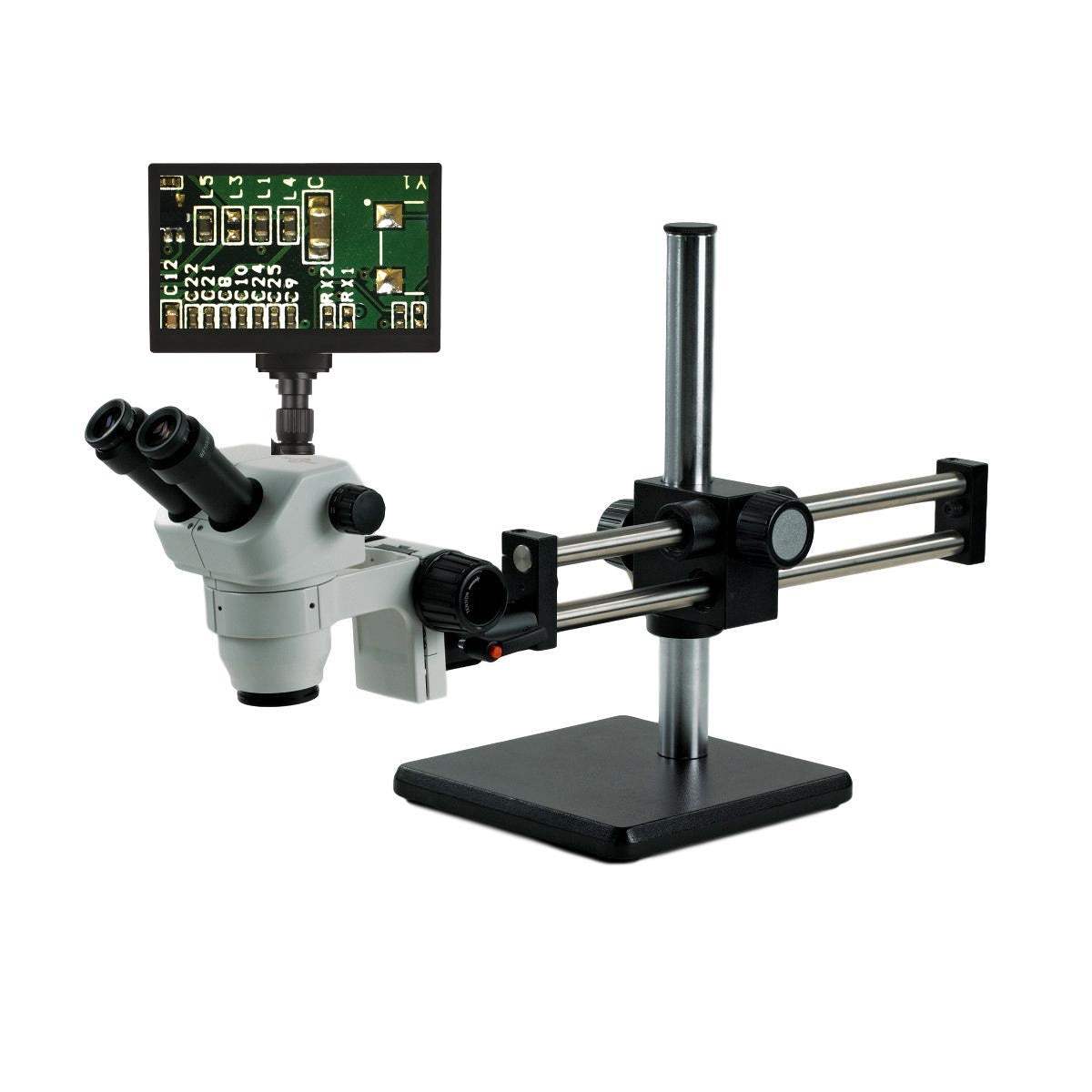

Accu-Scope 3079 HD Digital Microscope on Ball Bearing Boom Stand - 8x-35x
Accu-Scope 3079 HD Digital Microscope on Ball Bearing Boom Stand - 8x-35x
|
SKU: 3079-BBS-HD
- Choose With or Without Screen
- 8x - 35x Zoom Range
- Ball Bearing Boom Stand
- Optional Auxiliary Lenses & Eyepieces
- 5 Year Mechanical & Electrical Warranty
Couldn't load pickup availability
Description
The Accu-Scope 3079 hd digital stereo microscope on ball bearing boom stand provides high resolution, parfocal images with its newly designed optical system. The rugged, ergonomic design makes it suitable for industrial, and OEM applications. It's airtight casing helps protect the internal optics, making it suitable for use in harsh conditions. The trinocular viewing head provides a 50/50 light split allowing you to view through the eyepieces and camera simultaneously. The microscope has a zoom range of 0.8x - 3.5x making an overall magnification range of 8x -35x with the 10x eyepieces. The 10x eyepieces provide a 20mm field of view, and lock into the eye-tubes to prevent tampering. The 3078 has a working distance of 95mm, optional auxiliary lenses, and eyepieces are available to change the working distance and magnification. A glass lens shield is provided with each microscope to help protect the bottom lenses. The ball bearing boom stand makes it easy to position the microscope, and allows you to raise it up or down to accommodate various samples / working distances. For illumination you can add a ring light, or gooseneck illuminator. This high quality stereo microscope is suitable quality control, soldering, pass / fail, and more!
You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software - image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular viewing head (50/50 split), inclined 45° |
| Eyepieces: |
WF10x/20mm focusable eyepieces with eyeguards |
| Magnification: | 0.8x to 3.5x zoom range (8x -35x with 10x eyepieces) |
| Working Distance: | 95mm |
| Stand: | Ball bearing heavy duty boom stand w/ focus mount |
| Illumination: | Add a ring light, or dual gooseneck illuminator |
| Accessories: | 1.0x Glass lens shield, dust cover, & manual |
| Warranty: | 5 Year Mechanical & Electrical |
| Camera Specifications | |
|---|---|
| Optional Screen: | 11.6" Retina Display Screen |
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
