Accu-Scope 3076 E-LED Digital Stereo Microscope 0.67x - 4.5x

Recently viewed

Accu-Scope 3076 E-LED Digital Stereo Microscope 0.67x - 4.5x
Accu-Scope 3076 E-LED Digital Stereo Microscope 0.67x - 4.5x

Accu-Scope 3076 E-LED Digital Stereo Microscope 0.67x - 4.5x

  • SKU: 3076-ELED-300-HD
$2,060.00 $2,341.00
  • HDMI / USB Output Camera - With or Without Screen
  • 6.7x - 45x Zoom Range
  • 22mm FOV Eyepieces
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Camera
Quote Request

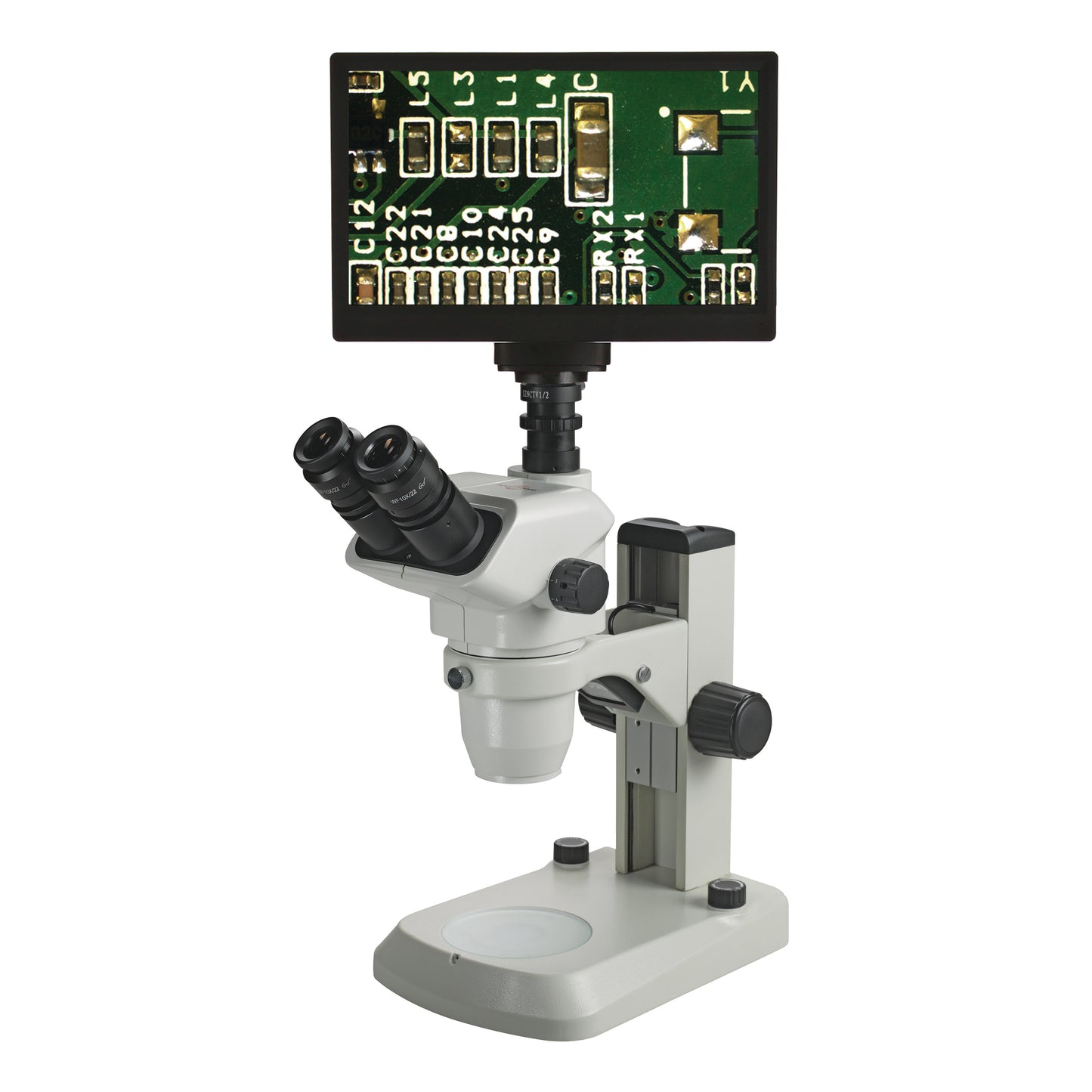

The Accu-Scope 3076 offers excellent flatness and tremendous depth of field. The 0.67x - 4.5x zoom range makes it perfect for industrial, OEM, and classroom applications. This digital package comes complete with your choice of Excelis camera. The Excelis camera line gives you the capability to capture images to your computer or bypass a computer and  display a live image on a HD monitor to capture images/videos to the removable SD card.

Select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera for a streamlined design. (AU-300-HDS or AU-600-HDS).

Microscope Specifications:
Head: Trinocular viewing head, inclined 45°, rotatable 360° w/ c-mount adapter
Eyepieces:        WF10x/22mm eyepieces w/built in diopter adjustments & eyeguards
Magnification:  0.67x to 4.5x zoom range (6.7x -45x with 10x eyepieces)
Stand:               Variable LED incident and transmitted illumination with frosted class stage plate and black/white plate
Accessories: Dust Cover & Manual
Warranty: 5 Year Mechanical 5 Year Electrical



AU-300-HD Excelis Lite Specifications:
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



AU-300-HDS Excelis Lite Specifications:
Screen: Mountable 11.6" Retina HD Display (mounting hardware included)
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



 AU-600-HD Excelis Camera Specifications:
Mega Pixel 6.0 M.P.
Sensor: SONY IMX236
Sensor Size: 1/2.7” , 0.5x C-mount recommended
Live Resolution: 1920 x 1080
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001sec—10.0 sec
Settings: Auto white balance, Gain, Gamma, Saturation, Contraction
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and
annotation; flat field correction; extended depth of focus (focus
stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
Software Compatibility: Windows XP, Vista, 7, 8, 10 (32 or 64 bit)
Mac OSX (for image transfer to Mac OSX only)



AU-600-HDS Excelis Camera Specifications:
Screen: Mountable 11.6" Retina HD Display (mounting hardware included)
Resolution (Live): 1920X1080   6 M.P.
Sensor: 1/2.7" (0.5x C-mount recommended); SONY IMX236
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7, 8, & 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



The Accu-Scope 3076 offers excellent flatness and tremendous depth of field. The 0.67x - 4.5x zoom range makes it perfect for industrial, OEM, and classroom applications. This digital package comes complete with your choice of Excelis camera. The Excelis camera line gives you the capability to capture images to your computer or bypass a computer and  display a live image on a HD monitor to capture images/videos to the removable SD card.

Select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera for a streamlined design. (AU-300-HDS or AU-600-HDS).

Microscope Specifications:
Head: Trinocular viewing head, inclined 45°, rotatable 360° w/ c-mount adapter
Eyepieces:        WF10x/22mm eyepieces w/built in diopter adjustments & eyeguards
Magnification:  0.67x to 4.5x zoom range (6.7x -45x with 10x eyepieces)
Stand:               Variable LED incident and transmitted illumination with frosted class stage plate and black/white plate
Accessories: Dust Cover & Manual
Warranty: 5 Year Mechanical 5 Year Electrical



AU-300-HD Excelis Lite Specifications:
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



AU-300-HDS Excelis Lite Specifications:
Screen: Mountable 11.6" Retina HD Display (mounting hardware included)
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



 AU-600-HD Excelis Camera Specifications:
Mega Pixel 6.0 M.P.
Sensor: SONY IMX236
Sensor Size: 1/2.7” , 0.5x C-mount recommended
Live Resolution: 1920 x 1080
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001sec—10.0 sec
Settings: Auto white balance, Gain, Gamma, Saturation, Contraction
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and
annotation; flat field correction; extended depth of focus (focus
stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
Software Compatibility: Windows XP, Vista, 7, 8, 10 (32 or 64 bit)
Mac OSX (for image transfer to Mac OSX only)



AU-600-HDS Excelis Camera Specifications:
Screen: Mountable 11.6" Retina HD Display (mounting hardware included)
Resolution (Live): 1920X1080   6 M.P.
Sensor: 1/2.7" (0.5x C-mount recommended); SONY IMX236
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7, 8, & 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



Excelis Camera Brochure
