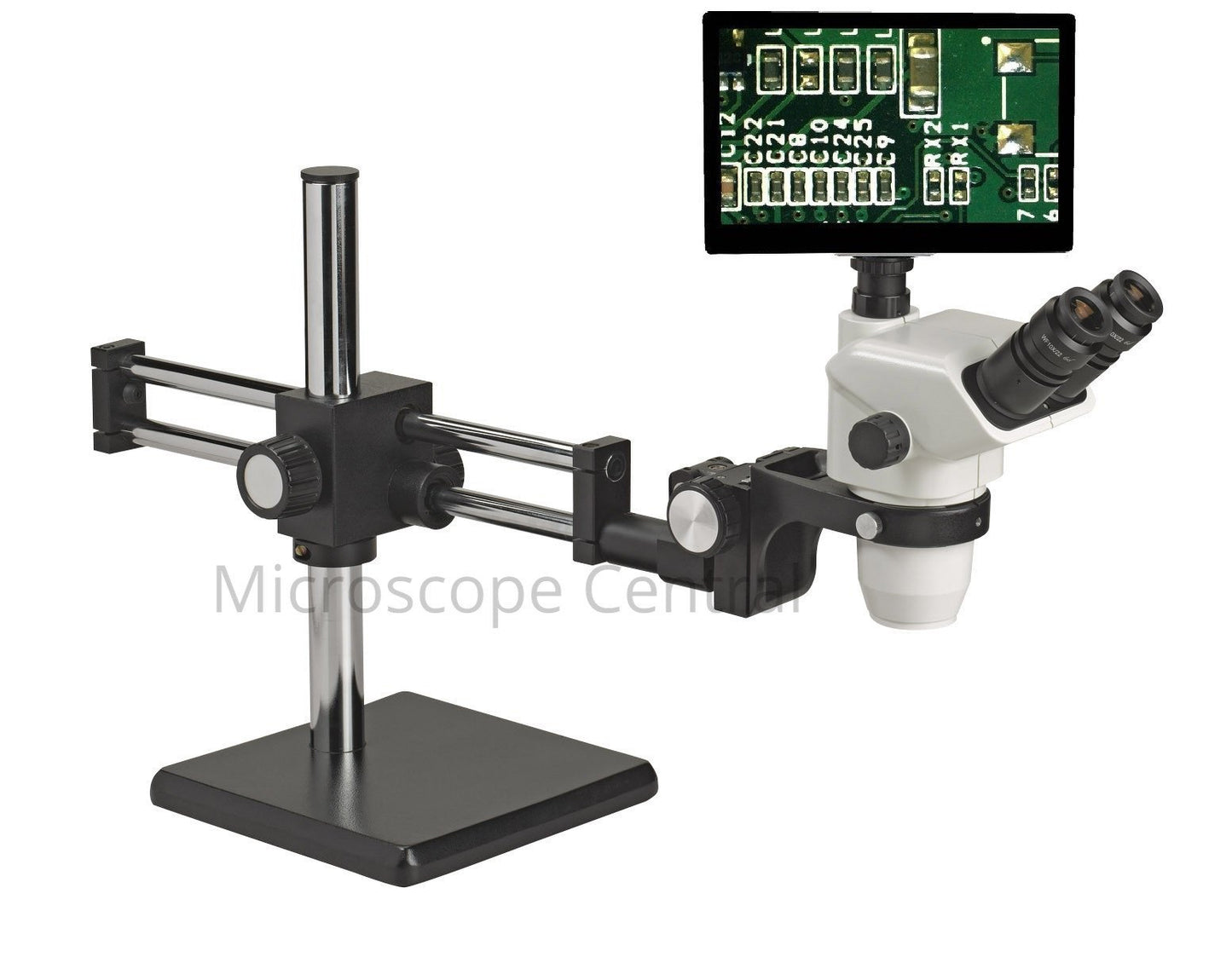

Accu-Scope 3076 Boom Stand Digital Microscope 0.67x - 4.5x
Accu-Scope 3076 Boom Stand Digital Microscope 0.67x - 4.5x
|
SKU: 3076-BS-300-HD
Couldn't load pickup availability
Description
The Accu-Scope 3076 offers excellent flatness and tremendous depth of field. The 0.67x - 4.5x zoom range makes it perfect for industrial, OEM, and classroom applications. This digital package comes complete with your choice of Excelis camera. The Excelis camera line gives you the capability to capture images to your computer or bypass a computer and display a live image on a HD monitor to capture images/videos to the removable SD card.
Choose from regular boom stand or ball bearing boom stand for smoother operation.
Select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera for a streamlined design. (AU-300-HDS or AU-600-HDS).
| Microscope Specifications: | |
|---|---|
| Head: | Trinocular viewing head, inclined 45°, rotatable 360° w/ c-mount adapter |
| Eyepieces: | WF10x/22mm eyepieces w/built in diopter adjustments & eyeguards |
| Magnification: | 0.67x to 4.5x zoom range (6.7x -45x with 10x eyepieces) |
| Stand: |
Standard Boom Stand w/ Bonder Arm or Ball Bearing Boom Stand w/ Bonder Arm |
| Accessories: | Dust Cover & Manual |
| Warranty: | 5 Year Mechanical |
| AU-300-HD Excelis Lite Specifications | |
|---|---|
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
| AU-300-HDS Excelis Lite Specifications | |
|---|---|
| Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
| AU-600-HD Excelis Camera Specifications | |
|---|---|
| Mega Pixel | 6.0 M.P. |
| Sensor: | SONY IMX236 |
| Sensor Size: | 1/2.7” , 0.5x C-mount recommended |
| Live Resolution: | 1920 x 1080 |
| Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
| Image Capture: | High Speed SD Card (8GB) |
| Video Capture: | HDMI: 1080p, 60fps to SD Card |
| USB 2.0: 1080p, 30fps to PC or Mac | |
| Exposure Time: | 0.001sec—10.0 sec |
| Settings: | Auto white balance, Gain, Gamma, Saturation, Contraction |
| PC Imaging Software: | CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| Software Compatibility: | Windows XP, Vista, 7, and 8 (32 or 64 bit) |
| Mac OSX (for image transfer to Mac OSX only) | |
| AU-600-HDS Excelis Camera Specifications | |
|---|---|
| Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
| Resolution (Live): | 1920X1080 6 M.P. |
| Sensor: | 1/2.7" (0.5x C-mount recommended); SONY IMX236 |
| Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
| Image Capture: | High Speed SD Card (8GB) |
| Video Capture: | HDMI: 1080p, 60fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
