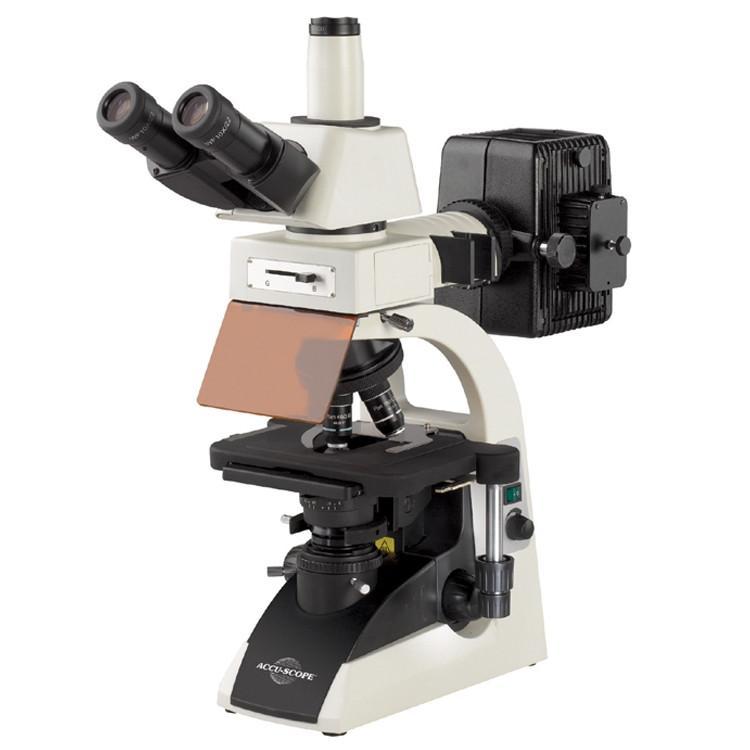

Accu-Scope 3012 Flourescence Microscope Series

Accu-Scope 3012 Flourescence Microscope Series

The Accu-Scope 3012 Fluorescence microscope is a perfect entry level fluorescence microscope for Colleges and Universities as well as laboratories. The 3012 microscope has the...

$5,190.00
Request Quote
Add to wishlist

The Accu-Scope 3012 Fluorescence microscope is a perfect entry level fluorescence microscope for Colleges and Universities as well as laboratories. The 3012 microscope has the same quality build and construction as the Nikon E200 microscope. Equipped with a two position Epi-fluorescence attachment and outfitted with high quality Chroma filters this microscope presents unparalleled value. The standard configuration consists of FITC/GFP and DAPI filter sets. You can replace the standard filters with - CFP, YFP, TRITC, Texas Red, Cy5, Acridine Orange, or FITC Long Pass at no additional cost. If you would like a different filter set please specify in the comment box at checkout!

Specifications
Head: Binocular OR Trinocular Siedentopf type, inclination 30°, Interpupillary distance 47-75mm, 360° rotatable.
Eyepieces: WF10x eyepiece, 22mm field of view with built-in diopter adjustment and reticle holder. Eyepiece accepts 26.5mm reticle.
Nosepiece: Quintuple, reversed type with positive click stops
Objectives E Plan Achromat 4x, 10x, 40x, 100x Oil
Epi-fluorescence:

Two position filter slider:

FITC/GFP and DAPI Filter set

Neutral density filter slider

100 watt mercury lamp house and 100w mercury power supply, Osram HB0 100w/2 lamp

Stage

Rackless, scratch resistant rectangular stage, 188 x 150mm surface area with 78 x 54mm cross travel using low-positioned X-Y coaxial control knobs

Condenser: N.A. 1.25 Abbe Condenser with aperture diaphragm and position guide markings for each objective and filter holder
Focus:
Coaxial coarse and fine focus mechanism. Fine focus sensitivity 0.2mm
Illumination:

5 watt LED (20,000 hour rated life)

Universal 110-220V

Misc: Dust cover, power cord
Warranty: 5 Years Mechanical & Electrical

Accessories

Please Contact Us for all additional parts and accessories

    Brochure

    Accu-Scope 3012 Microscope Brochure
