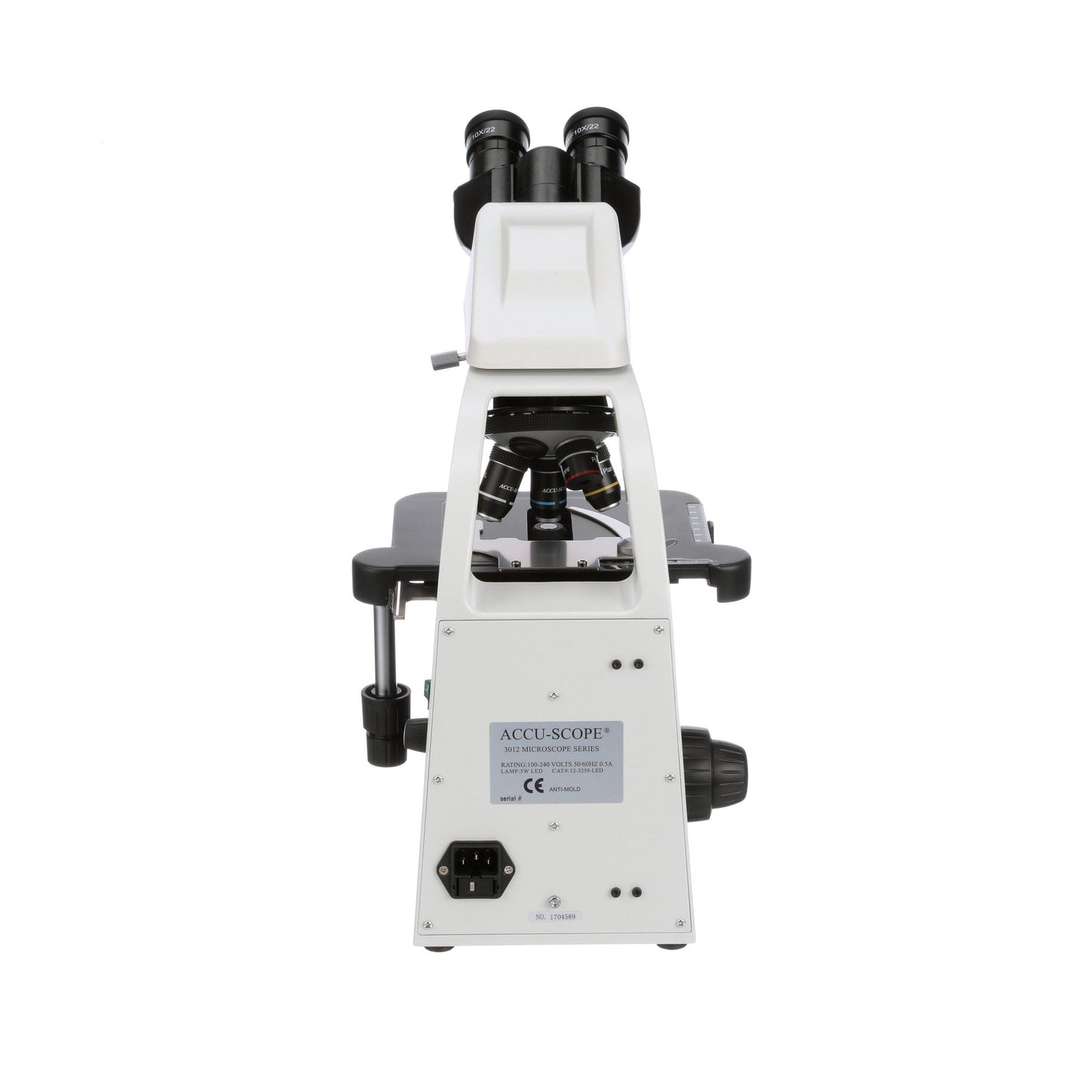

Accu-Scope 3012 Fine Needle Aspiration Microscope

Recently viewed

Accu-Scope 3012 Fine Needle Aspiration Microscope
Accu-Scope 3012 Fine Needle Aspiration Microscope
Accu-Scope 3012 Fine Needle Aspiration Microscope
Accu-Scope 3012 Fine Needle Aspiration Microscope
Accu-Scope 3012 Fine Needle Aspiration Microscope

Accu-Scope 3012 Fine Needle Aspiration Microscope

  • SKU: 3012-FNA
$1,396.00 $1,683.00
  • Binocular, Trinocular, or Ergo Binocular Head
  • Plan Achromat 4x, 10x, 40x, 60x Objectives
  • Rackless XY Stage
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Head Type
Request Quote

The Accu-Scope 3012 Fine Needle Aspiration Microscope is designed to meet the demand of laboratory use. You can choose between a binocular, ergonomic binocular, or trinocular viewing head. An optional dual viewing bridge can be added to this microscope do allow for two individuals to view through the microscope at the same time. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 60x objective lenses. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.



Specifications:
Head:

Binocular - 30⁰ inclined and rotatable 360⁰

Ergo Tilting Binocular - 5⁰ to 30⁰ inclination range

Trinocular - 50/50 Light Split, 30⁰ inclined and rotatable 360⁰

Eyepieces: HWF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed, quintuple
Objectives:

AIS E Plan Achromat Infinity 4x, 10x, 40x, and 60x



Stage: Rackless hard coated mechanical stage w/ low position coaxial controls
Condenser: Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder
Focusing: Coaxial coarse and fine focus controls
Illumination:

5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours.

Universal power supply 110-220v

Accessories: Dust cover, immersion oil, & instruction manual
Warranty: 5 Year Mechanical & Electrical

The Accu-Scope 3012 Fine Needle Aspiration Microscope is designed to meet the demand of laboratory use. You can choose between a binocular, ergonomic binocular, or trinocular viewing head. An optional dual viewing bridge can be added to this microscope do allow for two individuals to view through the microscope at the same time. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 60x objective lenses. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.



Specifications:
Head:

Binocular - 30⁰ inclined and rotatable 360⁰

Ergo Tilting Binocular - 5⁰ to 30⁰ inclination range

Trinocular - 50/50 Light Split, 30⁰ inclined and rotatable 360⁰

Eyepieces: HWF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed, quintuple
Objectives:

AIS E Plan Achromat Infinity 4x, 10x, 40x, and 60x



Stage: Rackless hard coated mechanical stage w/ low position coaxial controls
Condenser: Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder
Focusing: Coaxial coarse and fine focus controls
Illumination:

5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours.

Universal power supply 110-220v

Accessories: Dust cover, immersion oil, & instruction manual
Warranty: 5 Year Mechanical & Electrical
Accu-Scope 3012 Microscope Brochure
