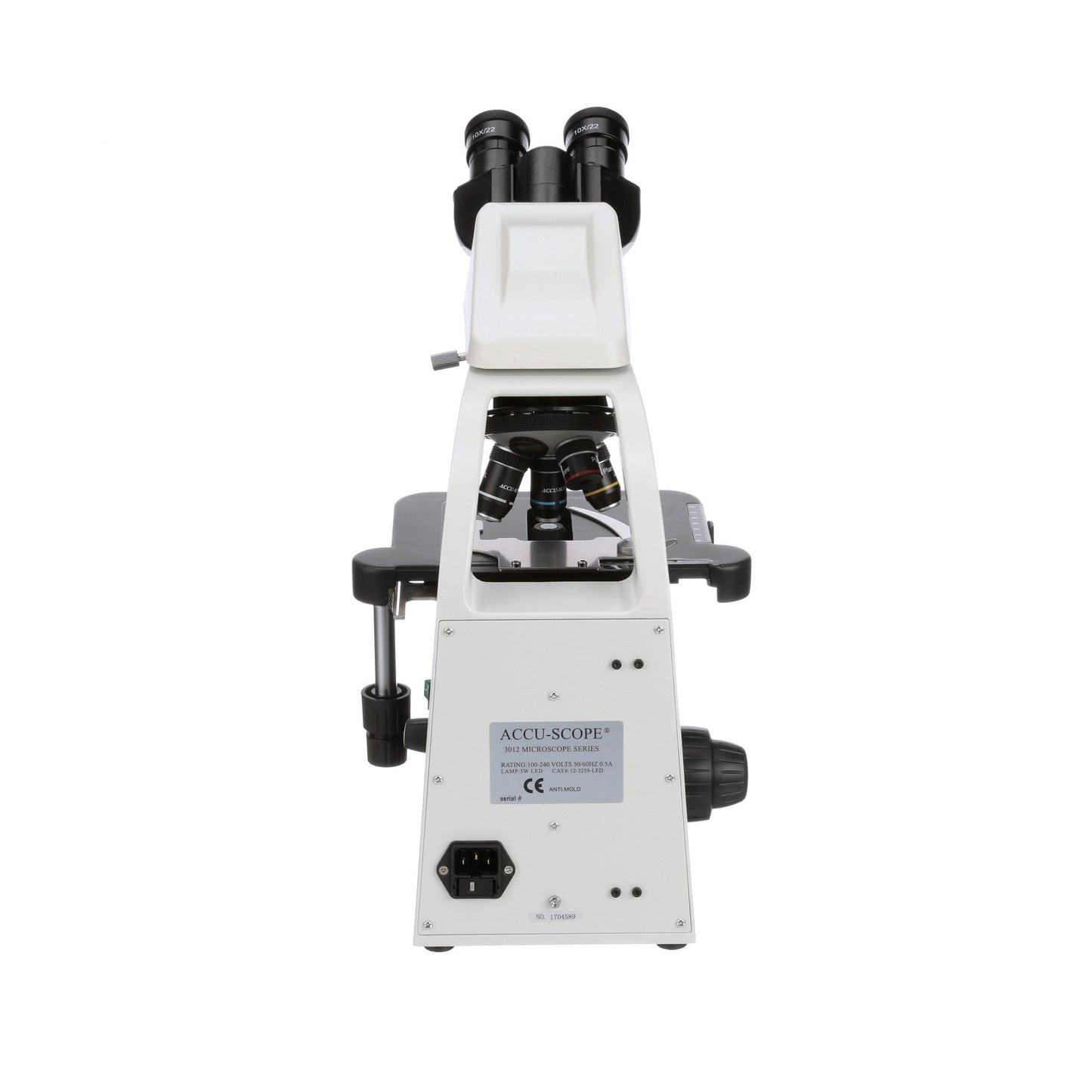

The Accu-Scope 3012 Fine Needle Aspiration Digital Microscope is designed to meet the demand of laboratory use. It comes with a trinocular viewing head, c-mount adatper, and choice of camera. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 60x objective lenses. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.

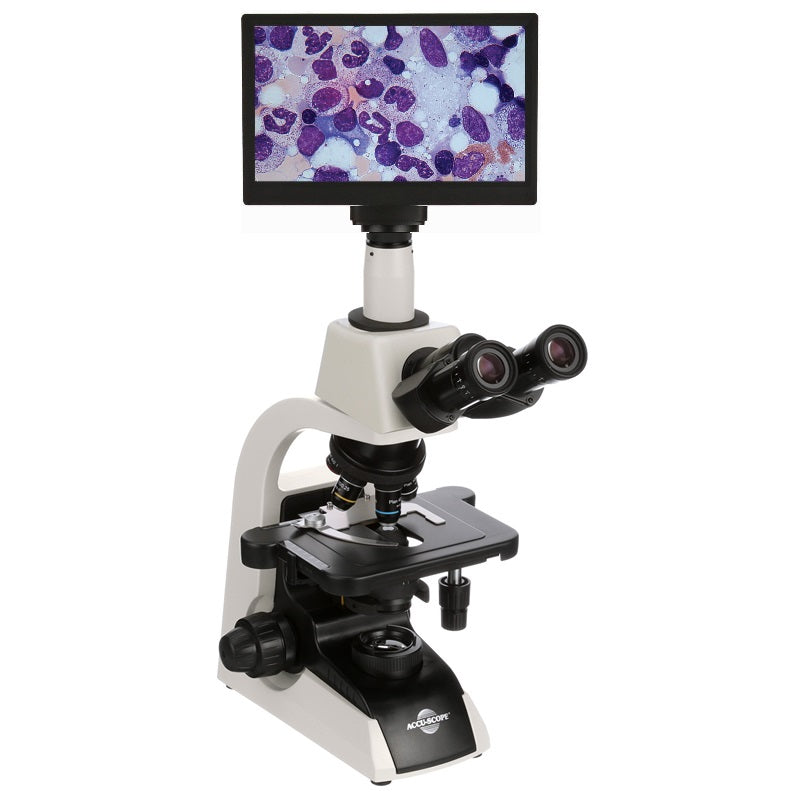

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software - image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
Specifications: | |
---|---|
Head: |
Trinocular - 50/50 Light Split, 30⁰ inclined and rotatable 360⁰ & C-Mount |
Eyepieces: | HWF10x/22mm focusing eyepieces with eyeguards |
Nosepiece: | Reversed, quintuple |
Objectives: |
AIS E Plan Achromat Infinity 4x, 10x, 40x, and 60x
|
Stage: | Rackless hard coated mechanical stage w/ low position coaxial controls |
Condenser: | Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder |
Focusing: | Coaxial coarse and fine focus controls |
Illumination: |
5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours. Universal power supply 110-220v |
Accessories: | Dust cover, immersion oil, & instruction manual |
Warranty: | 5 Year Mechanical & Electrical |
Camera Specifications | |
---|---|
Optional Screen: | 11.6" Retina Display Screen |
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
