Accu-Scope 3012 Dual Head Digital Teaching Microscope
Accu-Scope 3012 Dual Head Digital Teaching Microscope

Accu-Scope 3012 Dual Head Digital Teaching Microscope

  • SKU: 3012-DV-B-HD
$4,544.00 $5,475.00
  • Choose With Or Without Screen
  • Plan Achromat Objectives
  • Rackless Mechanical Stage
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Secondary Head
Camera
Request Quote

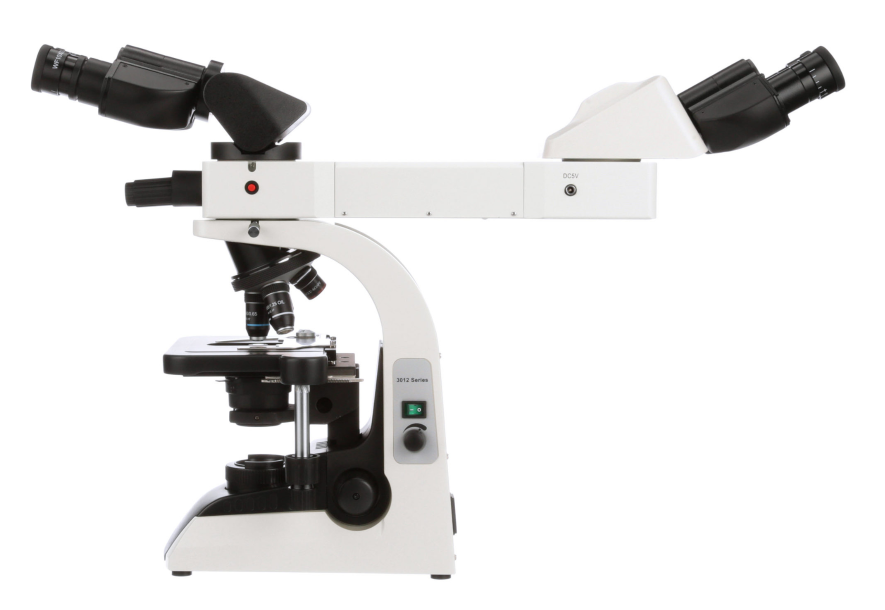

The Accu-Scope 3012 dual viewing digital microscope comes with a front to back dual bridge allowing two people to view through the microscope at one time. The dual bridge comes with a built in LED pointer. This microscope is designed to meet the demand of educational and laboratory use. The main head is a trinocular viewing head complete with c-mount and camera. For the secondary head you can choose from binocular or ergonomic binocular. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 100x oil objective lenses. The 40x objective lens has a long working distance to help prevent accidental contact with oil. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software -  image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications:
Main Head:

Trinocular - 50/50 Light Split, 30⁰ inclined and rotatable 360⁰ & C-mount adapter

Secondary Head:

Binocular - 30⁰ inclined and rotatable 360⁰, or

Ergo Tilting Binocular - 5⁰ to 30⁰ inclination range

Dual Bridge:

Face to Face w/ LED pointer

Eyepieces: HWF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed, quintuple
Objectives:

AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Oil Objectives



Stage: Rackless hard coated mechanical stage w/ low position coaxial controls
Condenser: Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder
Focusing: Coaxial coarse and fine focus controls
Illumination:

5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours.

Universal power supply 110-220v

Accessories: Dust cover, immersion oil, & instruction manual
Warranty: 5 Year Mechanical & Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
