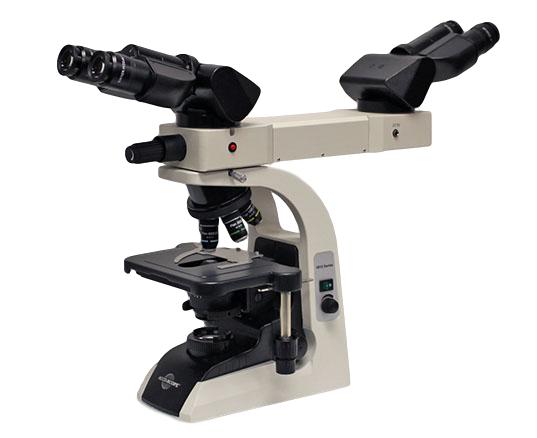

Accu-Scope 3012 Dual Head Teaching Microscope
Accu-Scope 3012 Dual Head Teaching Microscope
Accu-Scope 3012 Dual Head Teaching Microscope

Accu-Scope 3012 Dual Head Teaching Microscope

  • SKU: 3012-DB-B-B
$3,670.00 $4,422.00
  • Binocular,Trinocular, or Ergo Biniocular
  • Plan Achromat Objectives
  • Face-To-Face Bridge
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Main Head
Secondary Head
Request Quote

The Accu-Scope 3012 dual viewing microscope comes with a front to back dual bridge allowing two people to view through the microscope at one time. The dual bridge comes with a built in LED pointer. This microscope is designed to meet the demand of educational and laboratory use. You can choose between a binocular, ergonomic binocular, or trinocular viewing head for the main viewing head. For the secondary head you can choose from binocular or ergonomic binocular. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 100x oil objective lenses. The 40x objective lens has a long working distance to help prevent accidental contact with oil. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.

Specifications:
Main Head:

Binocular - 30⁰ inclined and rotatable 360⁰,

Ergo Tilting Binocular - 5⁰ to 30⁰ inclination range, or

Trinocular - 50/50 Light Split, 30⁰ inclined and rotatable 360⁰

Secondary Head:

Binocular - 30⁰ inclined and rotatable 360⁰, or

Ergo Tilting Binocular - 5⁰ to 30⁰ inclination range

Dual Bridge:

Face to Face w/ LED pointer

Eyepieces: HWF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed, quintuple
Objectives:

AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Oil Objectives



Stage: Rackless hard coated mechanical stage w/ low position coaxial controls
Condenser: Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder
Focusing: Coaxial coarse and fine focus controls
Illumination:

5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours.

Universal power supply 110-220v

Accessories: Dust cover, immersion oil, & instruction manual
Warranty: 5 Year Mechanical & Electrical

The Accu-Scope 3012 dual viewing microscope comes with a front to back dual bridge allowing two people to view through the microscope at one time. The dual bridge comes with a built in LED pointer. This microscope is designed to meet the demand of educational and laboratory use. You can choose between a binocular, ergonomic binocular, or trinocular viewing head for the main viewing head. For the secondary head you can choose from binocular or ergonomic binocular. The 10x eyepieces are focusable and provide a 22mm field of view which allows you to view more of your specimen. The quintuple nosepiece comes with infinity plan achromat 4x, 10x, 40x, and 100x oil objective lenses. The 40x objective lens has a long working distance to help prevent accidental contact with oil. The hard coated rackless mechanical XY stage has no protruding parts and is designed to withstand heavy use. The 1.25 N.A. condenser is fully focusable and has an iris diaphragm and filter holder. The 5 Watt LED variable illumination system provides over 20,000 hours of use.

Specifications:
Main Head:

Binocular - 30⁰ inclined and rotatable 360⁰,

Ergo Tilting Binocular - 5⁰ to 30⁰ inclination range, or

Trinocular - 50/50 Light Split, 30⁰ inclined and rotatable 360⁰

Secondary Head:

Binocular - 30⁰ inclined and rotatable 360⁰, or

Ergo Tilting Binocular - 5⁰ to 30⁰ inclination range

Dual Bridge:

Face to Face w/ LED pointer

Eyepieces: HWF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed, quintuple
Objectives:

AIS E Plan Achromat Infinity 4x, 10x, 40x, and 100x Oil Objectives



Stage: Rackless hard coated mechanical stage w/ low position coaxial controls
Condenser: Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder
Focusing: Coaxial coarse and fine focus controls
Illumination:

5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours.

Universal power supply 110-220v

Accessories: Dust cover, immersion oil, & instruction manual
Warranty: 5 Year Mechanical & Electrical

Accu-Scope 3012 Microscope Brochure
