Accu-Scope 3012 / 3013 Phase Contrast Microscope

Accu-Scope New

$1,640.00  $2,100.00

Request Quote

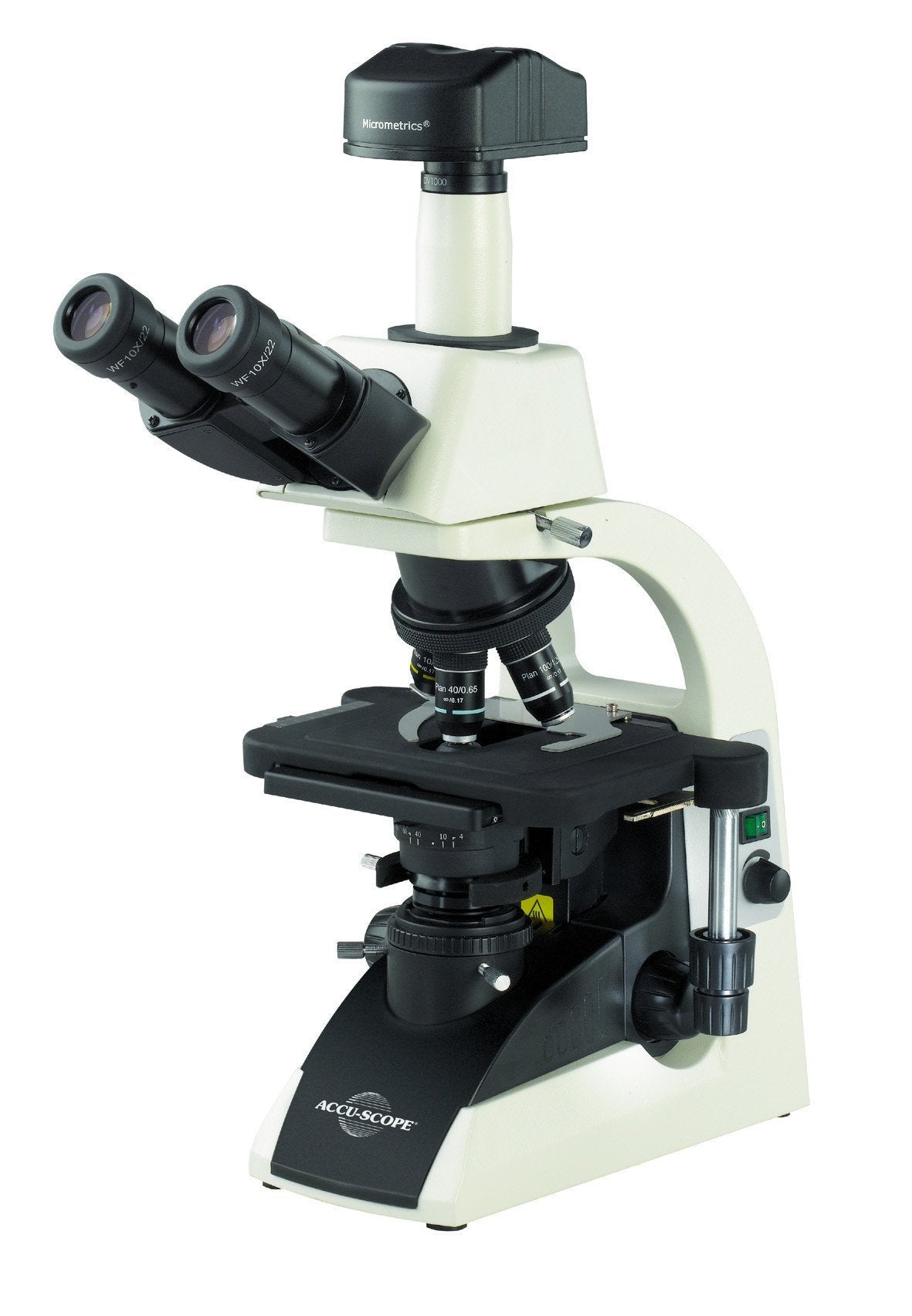

The Accu-Scope 3012 series is designed for student and laboratory applications. Designed after the Nikon E200 this microscope offers a striking resemblance in its features as well as optical quality. The 22mm field of view eyepieces, plan achromatic objective, and LED illumination provide crisp images. Backed with a 5 year mechanical and 5 year electrical warranty this microscope offers outstanding value. Choose between phase slider or phase turret condenser.

Specifications:
Head: Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰
Eyepieces: HWF10x/22mm focusing eyepieces with eyeguards
Nosepiece: Reversed, quintuple
Objectives:

Phase Slider Package - AIS E Plan Infinity 4x, Phase 10x & 40xR

Phase Turret Package - AIS E Plan Infinity 4x, Phase 10x, 40xR, & 100x

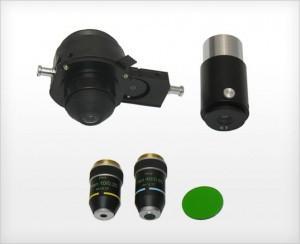

Condenser:

Phase Slider Package - Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder, phase slider

Phase Turret Package - Turret phase condenser with 10x, 40x and 100x phase annuli, BF & DF positions, centering telescope, green filter

Stage: Rackless mechanical stage w/ low position coaxial controls
Illumination: 5 watt variable LED illuminator. LED bulb has a rated life of 20,000 hours
Focusing: Coaxial focusing system
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & Electrical

Please Contact Us for all additional parts and accessories

Accu-Scope 3012 Microscope Brochure
