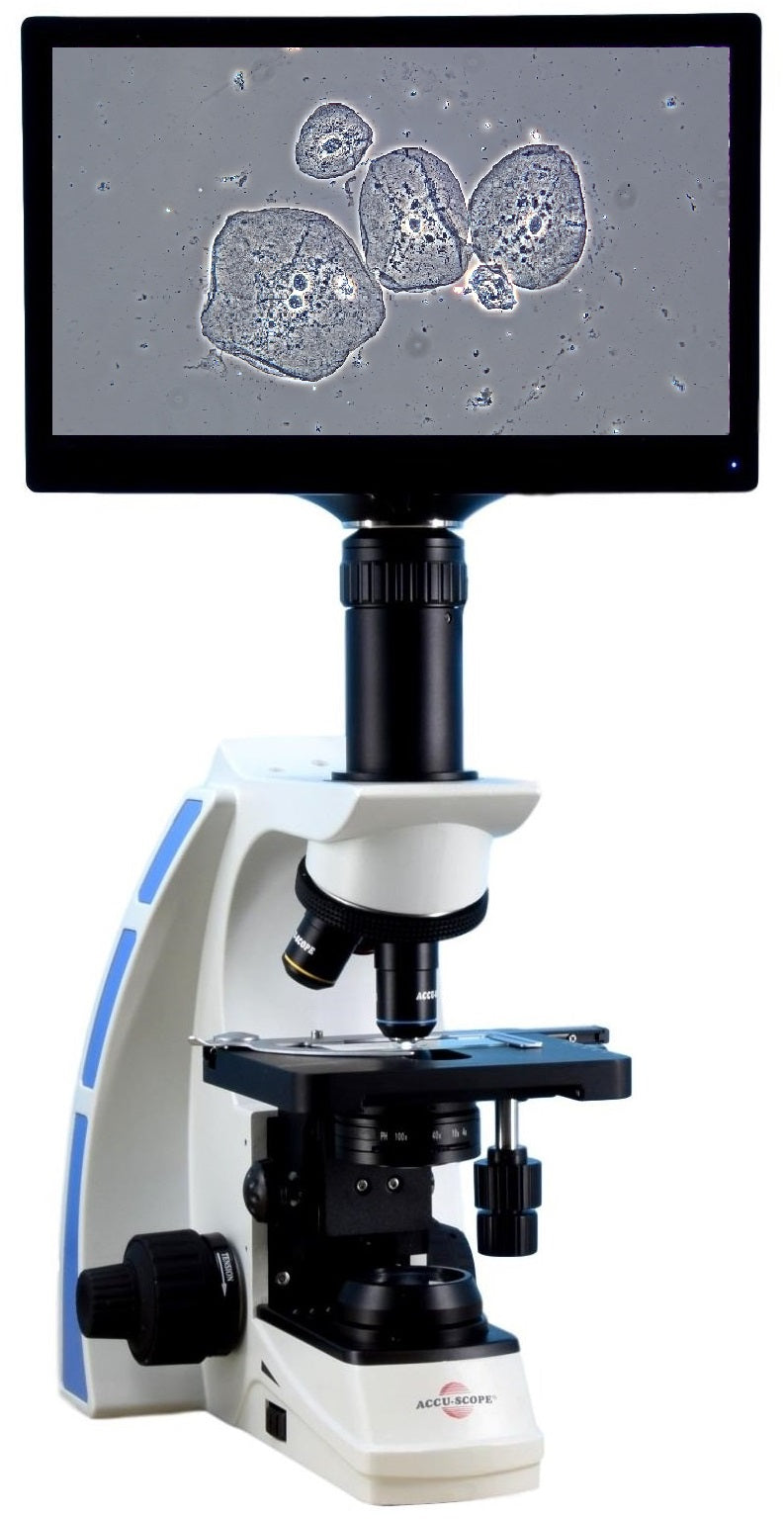

Accu-Scope 3000 Periodontist 4K Spirochete & Bacteria Microscope

Accu-Scope 3000 Periodontist 4K Spirochete & Bacteria Microscope


SKU: 3001-PERIO-4K

Regular price $2,745.00
Regular price $3,288.00 Sale price $2,745.00
Sale Sold out
  • Choose With or Without Screen
  • USB, WiFi, HDMI Output
  • Simple And Easy To Use
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty

Quote Request
Accu-Scope 3000 Periodontist 4K Spirochete & Bacteria Microscope
Got Questions? Why Choose Us? View full details


This easy to use, high resolution microscope system makes it easy to identify / show patients bacteria and spirochetes to engage and help them treat to prevent gum disease. The 4K camera technology allows you to broadcast live real time images via HDMI, WiFi, USB, or Network. With up to 60 FPS the image broadcasted is live with no lag. The best way to use this system is with HDMI output. You can choose to have an optional 11.6" display screen to show a live image right above the microscope, or you can select the option without screen, and send the image to your own monitor via HDMI cable. When outputting in HDMI mode the included mouse allows you to fully control the camera with the ability to adjust the camera settings, capture and replay images / videos, and do a side-by-side comparison of a live vs captured image. The images / videos can be saved to a removable SD card, or USB stick allowing you to upload them to patient records later. Unlike other HDMI output cameras this camera allows you to name the image / video upon capture so you know which patient the files on the SD card / USB stick belong to. The camera can also simultaneously output via WiFi allowing the patients to connect to the camera and save images to their mobile device for their own records. The 4K resolution allows you to digitally zoom for increased mag while maintaining good resolution. This unique microscope solution is simplified with a direct to camera output method and single 40x phase contrast objective lens.

The View4K is a powerful new microscope camera that produces high-definition images of amazing clarity and can output HDMI (4K Monitor NOT required), USB, or WiFi. You can choose the option to have an 11.6" HD screen that mounts directly to the front of the camera for an all-in-one streamlined digital solution, use any of the other output methods listed below.

HDMI Mode: On-board software allows you to fully control the camera's settings / built-in features with the included mouse. Adjust the exposure, brightness, and more. The software also allows for on-screen measurement, picture in picture, image comparison, video / image replay, and more. In HDMI mode you can capture images / videos to either an SD card or USB stick to transfer to your computer.

USB Mode: Connect to your computer via USB 3.0 cable and use the free advanced software to view, capture, and process. The feature rich software includes measurements, time-lapse, stitching, extended depth of focus, and more.

WiFi Mode: Wireless connection to an android, iOS device, or computer. A FREE app can be downloaded for android or iOS device use.  Output WiFi to use the included computer software.


Accu-Scope 3000 Periodontist Microscope Specifications:
Head: Direct To C-Mount & Camera
Nosepiece: Reversed, quadruple
Objectives: Infinity Plan Achromat Phase Contrast 40x
Stage Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm
Condenser: N.A. 1.25 Abbe condenser with 40x Ph Annulus

3 watt LED with variable intensity control

Universal power supply 110-220v

Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & Electrical


Camera Specifications:
Screen: Optional 11.6" Viewing Screen
Resolution (Live): 4K (3840 x 2160)
Mega Pixels: 8.0 M.P.
Sensor: 1/1.8" Sony IMX334 - CMOS
Pixel Size: 2.0 x 2.0μ
Sensitivity: 505mV @ 1/30s (f5.6)
Shutter: Rolling
Frame Rate:

HDMI 60 FPS @ (3840 x 2160)

HDMI 60 FPS @ (1920 x 1080)

WiFi, GE 30 FPS @ (3840 x 2160)

Image & Video Capture:

HDMI - Capture to removable SD card

PC - Capture w/ software

WiFi - Capture w/ APP

Exposure Time: 0.001 sec - 10.0 sec
Output Modes: HDMI, WiFi, USB
HDMI Compatibility: Any HDMI input monitor, projector, TV (4K Not Required)



Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed

PC Software:


Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping


Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Warranty: 1 year
