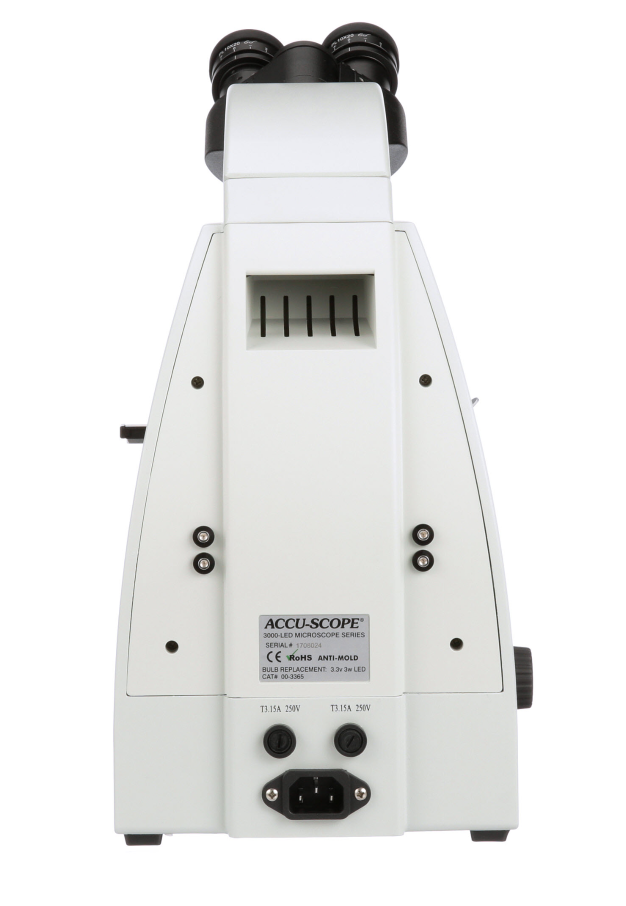

Accu-Scope 3000 Live Blood Analysis - Darkfield Slider

Recently viewed

Accu-Scope 3000 Live Blood Analysis - Darkfield Slider
Accu-Scope 3000 Live Blood Analysis - Darkfield Slider
Accu-Scope 3000 Live Blood Analysis - Darkfield Slider
Accu-Scope 3000 Live Blood Analysis - Darkfield Slider

Accu-Scope 3000 Live Blood Analysis - Darkfield Slider

  • SKU: 3000-LED-LB
$1,190.00 $1,434.00
  • Binocular or Trinocular
  • Plan Achromat 4x, 10x, 40x, 100x Oil Objectives
  • Darkfield Slider - Dry
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Title
Request Quote

The Accu-Scope 3000 for live blood analysis comes with either a binocular or trinocular viewing head. The 10x eyepieces provide a wide 20mm field of view. Infinity plan achromat 4x, 10x, 40x, and 100x oil objectives are provided with this system. The darkfield slider provides darkfield under the 4x, 10x, and 40x objectives. The 100x lens on this system does not have an iris diaphragm therefore you will not get true darkfield when using the 100x objective lens. The microscope uses a 3 watt LED illumination system.

    Specifications
    Head: Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰
    Eyepieces: HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece
    Nosepiece: Reversed, quadruple
    Objectives: Infinity Plan Achromat 4x, 10x, 40xR*, 100xR oil* (*spring-loaded)
    Condenser: N.A. 1.25 Abbe condenser with darkfield slider
    Stage: Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm
    Illumination:

    3 watt LED with variable intensity control

    Universal power supply 110-220v

    Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
    Accessories: Dust cover, immersion oil & instruction manual included
    Warranty: 5 Year Mechanical & Electrical

    The Accu-Scope 3000 for live blood analysis comes with either a binocular or trinocular viewing head. The 10x eyepieces provide a wide 20mm field of view. Infinity plan achromat 4x, 10x, 40x, and 100x oil objectives are provided with this system. The darkfield slider provides darkfield under the 4x, 10x, and 40x objectives. The 100x lens on this system does not have an iris diaphragm therefore you will not get true darkfield when using the 100x objective lens. The microscope uses a 3 watt LED illumination system.

      Specifications
      Head: Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰
      Eyepieces: HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece
      Nosepiece: Reversed, quadruple
      Objectives: Infinity Plan Achromat 4x, 10x, 40xR*, 100xR oil* (*spring-loaded)
      Condenser: N.A. 1.25 Abbe condenser with darkfield slider
      Stage: Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm
      Illumination:

      3 watt LED with variable intensity control

      Universal power supply 110-220v

      Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
      Accessories: Dust cover, immersion oil & instruction manual included
      Warranty: 5 Year Mechanical & Electrical
