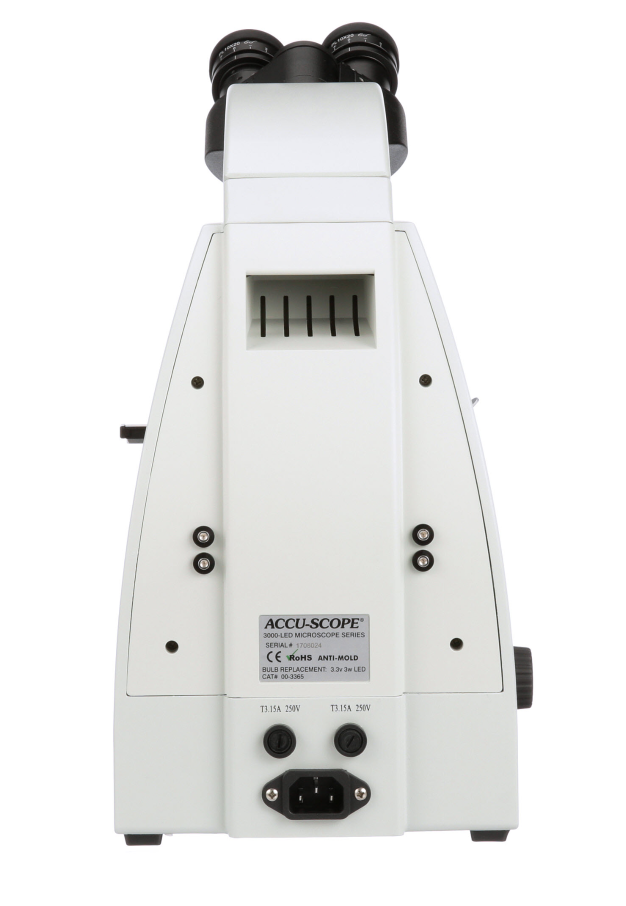

Accu-Scope 3000-LED MOHS Surgery Microscope
- SKU: 3000-MOHS-B-20
- Binocular or Trinocular Head
- 2x Objective Included
- LED Illumination
- Durable All Metal Gears
- 5 Year Mechanical & 1 Year Electrical Warranty
The Accu-Scope 3000-LED microscope is configured for MOHS / Pathology applications complete with a 2x low power scanning objective and diffusion slider. The diffusion slider can remain in place while using the other objectives eliminating the need to flip a condenser lens in / out. The microscope comes with your option of binocular or trinocular head. The 10x eyepieces provide a wide 20mm field of view. You can choose between a set of infinity plan achromat 2x, 4x, 10x, 20x or 2x, 4x,10x, 20x, and 40x objectives. You can easily remove the slide holder to freely move the slide by hand. The LED bulb means little to no heat and no bulb changes!
Specifications | |
---|---|
Head: | Binocular Or Trinocular, 30⁰ inclined and rotatable 360⁰ |
Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment. |
Nosepiece: | Reversed quadruple, Reversed quintuple for 40x slection |
Objectives: |
Infinity Plan Achromat 2x, 4x, 10x, 20x Or Infinity Plan Achromat 2x, 4x, 10x, 20x, 40x |
Condenser: | N.A. 1.25 Abbe condenser with diffusing slider |
Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
Illumination | 3 Watt LED with variable intensity control |
Accessories: | Dust cover, immersion oil & instruction manual included |
