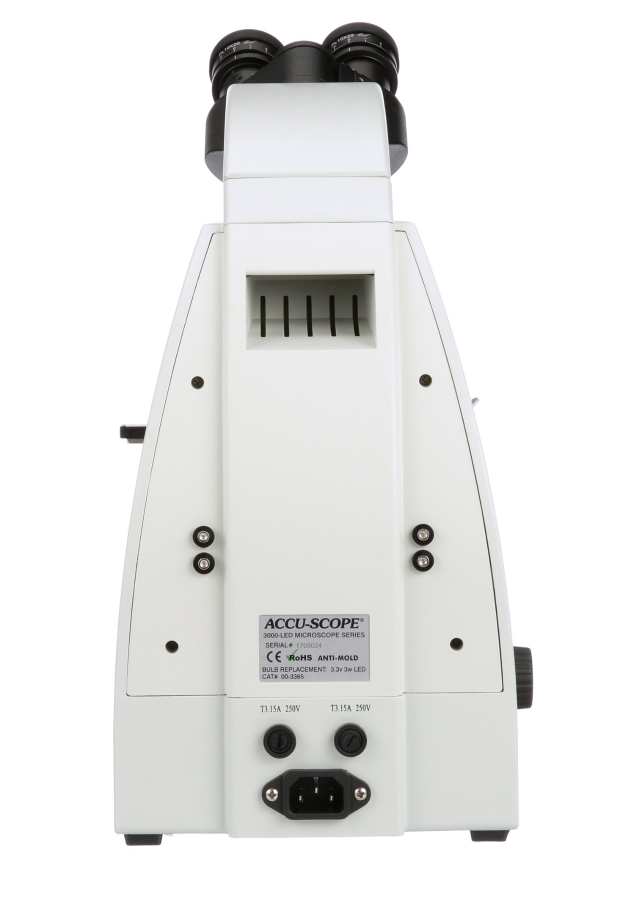

Accu-Scope 3000 LED Digital Phase Contrast Microscope

Accu-Scope 3000 LED Digital Phase Contrast Microscope

|

SKU: 3001-LED-SPH-HD

Regular price $2,229.00
Regular price $2,533.00 Sale price $2,229.00
Sale Sold out
  • Choose With or Without Screen
  • Phase Contrast Objectives
  • Uses Phase Slider
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty

Camera
Objectives
Quote Request
Accu-Scope 3000 LED Digital Phase Contrast Microscope
Got Questions? Why Choose Us? View full details

Description

The Accu-Scope 3000 LEDdigital phase contrast microscope comes complete with your choice of camera. The microscope has 10x eyepieces with a 20mm field of view. You can select from the following objective configurations: Phase 10x & 40x, Brightfield 4x Phase 10x, 40x, 100x Oil, or Brightfield 4x, Phase 20x, 40x, 100x Oil. To achieve phase contrast this uses a phase contrast slider which will be provided to match the objectives you select. Two phase sliders will be provided if you choose any of the four objective configurations as one slider has the 10x & 40x phase positions, while another has the 20x & 40x positions. The microscope features LED illumination so you do not have to worry about heat, or bulb changes!

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software -  image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Trinocular, 30⁰ inclined and rotatable 360⁰ & C-Mount
Eyepieces: HWF Plan 10x eyepieces, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece
Nosepiece: Reversed, quadruple
Objectives:

Phase 10x & 40x Phase - Standard

4x, Phase 10x, 40x, 100x Oil

4x, Phase 20x, 40x, 100x Oil

Note: 4x, Phase 10x, 40x, 100x Oil  and 4x, Phase 20x, 40x, 100 oil requires two phase contrast sliders which are included.

Condenser: N.A. 1.25 Abbe condenser with phase contrast slider
Stage: Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm
Illumination:

3 watt LED with variable intensity control

Universal power supply 110-220v

Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical & Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
