Accu-Scope 3000-LED Digital MOHS Microscope
Accu-Scope 3000-LED Digital MOHS Microscope
|
SKU: 3000-MOHS-20-HD
- Choose With or Without Screen
- 2x Objective Included
- LED Illumination
- Durable All Metal Gears
- 5 Year Mechanical & 1 Year Electrical Warranty
Couldn't load pickup availability
Description

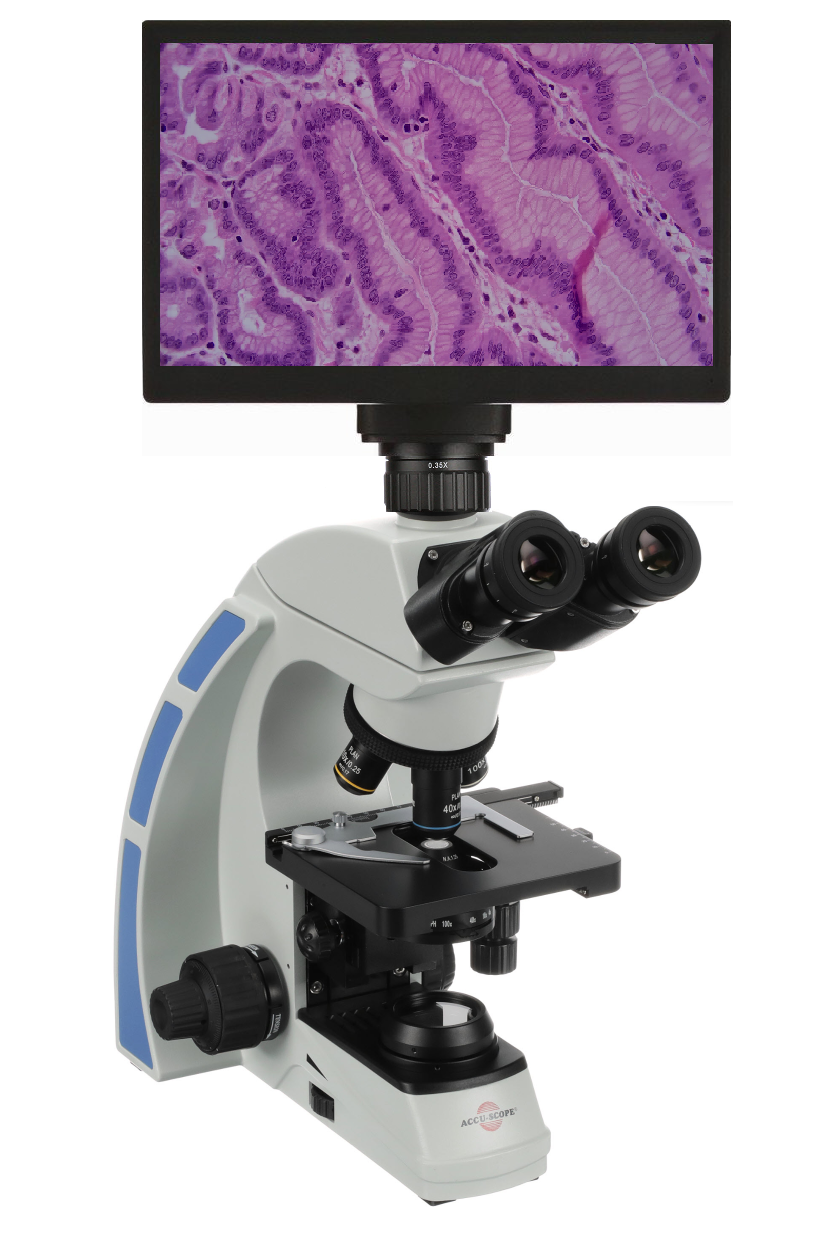

The Accu-Scope 3000-LED digital microscope is configured for MOHS / Pathology applications complete with a 2x low power scanning objective and diffusion slider. The diffusion slider can remain in place while using the other objectives eliminating the need to flip a condenser lens in / out. The microscope comes a trinocular head and c-mount camera adapter. The 10x eyepieces provide a wide 20mm field of view. You can choose between a set of infinity plan achromat 2x, 4x, 10x, 20x or 2x, 4x,10x, 20x, and 40x objectives. You can easily remove the slide holder to freely move the slide by hand. The LED bulb means little to no heat and no bulb changes!
You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software - image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
| Specifications | |
|---|---|
| Head: | Trinocular, 30⁰ inclined and rotatable 360⁰ & C-Mount Adapter |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment. |
| Nosepiece: | Reversed quadruple, Reversed quintuple for 40x slection |
| Objectives: |
Infinity Plan Achromat 2x, 4x, 10x, 20x Or Infinity Plan Achromat 2x, 4x, 10x, 20x, 40x |
| Condenser: | N.A. 1.25 Abbe condenser with diffusing slider |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Illumination | 3 Watt LED with variable intensity control |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Camera Specifications | |
|---|---|
| Optional Screen: | 11.6" Retina Display Screen |
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
