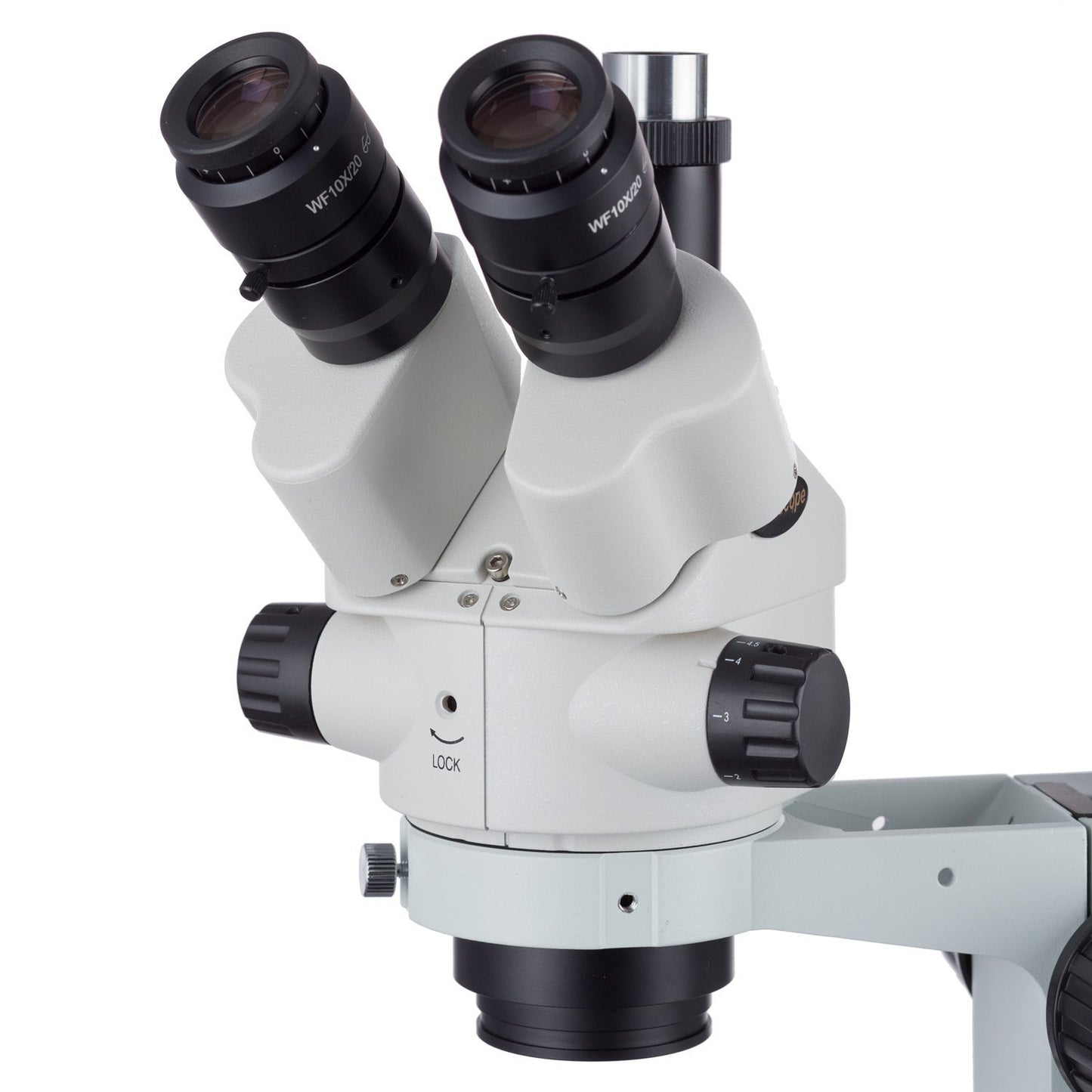

7X-45X Simul-Focal Stereo Lockable Zoom Microscope on Single Arm Boom Stand

7X-45X Simul-Focal Stereo Lockable Zoom Microscope on Single Arm Boom Stand

This is a highly-flexible stereo microscope, designed for workshops and industrial inspection. Featuring a simul-focal head, the photo port can be used concurrent with both...

$417.99
Request Quote
Add to wishlist

This is a highly-flexible stereo microscope, designed for workshops and industrial inspection. Featuring a simul-focal head, the photo port can be used concurrent with both eyepieces, allowing you to have an active imaging system without losing use of one of the eyepieces. The objective optics offer a continuous zoom-range from 0.7 to 4.5X, providing 7-45X magnification with the 10X high-eyepoint, super-widefield eyepieces. This model also provides a zoom lock to maintain a fixed magnification for calibrated measurement applications. The nose cone provides a built-in ring-light adapter, as well as inner threading for auxiliary lenses and other attachments.

The sturdy single-arm boom stand provides a stable and flexible support system. The single-arm boom stand allows one to turn the microscope head around two different axes, letting you point microscope head in various directions. Especially convenient for quality-control inspections, teaching demonstrations, and many other industry applications, your colleagues or students can simultaneously view clear images shown through the trinocular port while you work through the eyepieces.

Features :



  • Simul-focal optical system allows simultaneous observation through both the eyepieces and the trinocular port
    + Have well-focused, clear images on your computer/video screen and through the eyepieces at the same time.
    + No need to switch between the trinocular port and the eyepieces
    + No need to re-focus the microscope after each "switch"
  • 30mm super widefield 10X eyepieces
    + Sharp stereo images over a super widefield view
    + High resolution with great flatness and contrast
    + Crystal clear original true-color images
  • Sturdy Boom Stand for Versatility and Large Working Area
    + Covers large working area
    + Stand Finished with Stain Resistant Enamel
    + 1.5" Rugged Solid Cast Metal Stand Base
  • 7X-45X Continuous Zoom Magnification Range
  • 45-Degree Inclined Microscope Head
  • 4" (100mm) Large Working Distance
  • Upright Trinocular Tube for Attaching Digital or Analog Cameras
  • Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
  • Both Eyepieces Have Adjustable Diopters
  • Adjustable Interpupillary Distance
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • All Metal Mechanical Components
  • Manufactured under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Manufacturer Warranty
  •



    Specifications :



  • Head: 45-degree inclined, 360-degree swiveling trinocular
  • Eyepieces: 30mm super widefield high-eyepoint (WF10X/20)
  • Objective: 0.7-4.5X
  • Zoom Range: 6.5:1
  • Maximum Field of View: 1-1/4" (31.75mm)
  • Minimum Field of View: 3/16" (2.5mm)
  • Interpupillary Distance: 2-3/4" - 2-15/16" (47-75mm)
  • Working Distance: 4" (100mm)
  • Head Mounting Size: 3" (76mm) diameter
  • Accessory Mounting Size: 1-7/8" (48mm female thread) diameter
  • Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base
  •



    Packing List:



  • One Trinocular Simul-Focal Stereo Zoom Head
  • One Pair of Super Widefield 10X Eyepieces
  • One Single-Arm Boom Stand
  • One Focus Rack
  • User's Manual
  •

    SM-3NTP
