5MP High-Speed USB 3.0 Digital Microscope Camera

5MP High-Speed USB 3.0 Digital Microscope Camera

The MU503B is part of our high-speed camera line. With improved image-processing and USB 3.0 connectivity, this 5MP camera can achieve framerates of up to 101fps. The compact, all-metal design...

$241.99
Request Quote
Add to wishlist

The MU503B is part of our high-speed camera line. With improved image-processing and USB 3.0 connectivity, this 5MP camera can achieve framerates of up to 101fps. The compact, all-metal design makes this a go-anywhere imaging solution. Deriving power from the USB connection, MU series cameras can be used at home, in a lab, or in the field. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.

With software available for Windows, Mac, and Linux, the MU series is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Camera Specifications:



  • Sensor: Aptina MT9P006(color)
  • Sensor Type: CMOS
  • Sensor Size: 5.7x4.28mm (1/2.5" class)
  • Pixel Size: 2.2 micrometers
  • Resolution: 5.0MP
  • Frame Rate: 101.2fps @ 640x480, 38.3fps @ 1280x960, 14.2fps @ 2560x1922
  • Sensitivity: 1.76V/Lux-sec
  • Connectivity: USB 3.0
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  • Mounting Sizes: 23mm, 30mm, 30.5mm, and C-mount

  • Software Specifications:



  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
  • Advanced software for Windows:
    - offers Stitching, EDF, video recording and measurement functions
    - conducts measurements for lengths, angles, arcs, areas and etc.
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - live video and still image capture can be set in different resolutions simultaneously
    More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
  • Lifetime free software upgrades
  •

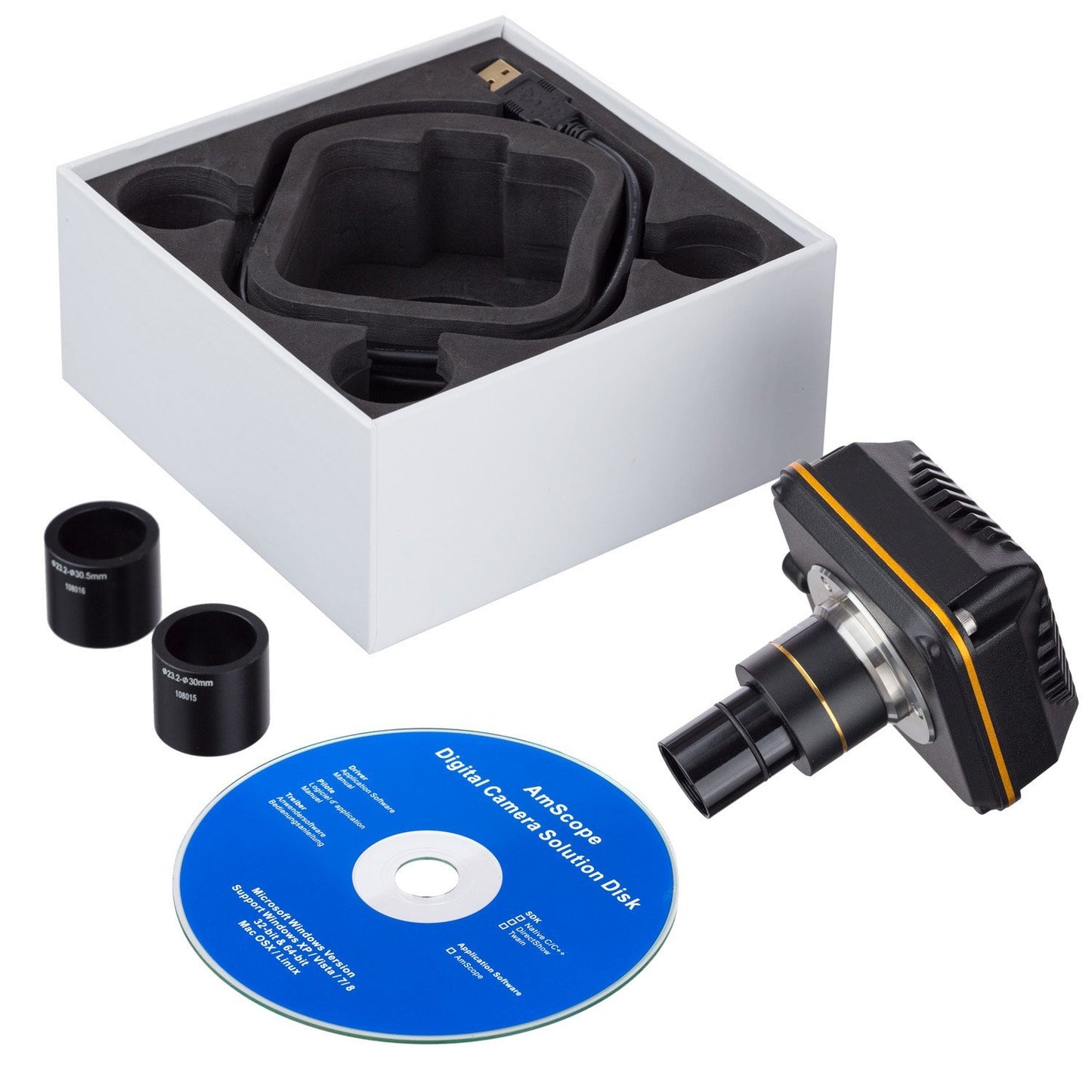

    Contents:



  • One 5MP USB3.0 Digital Camera
  • One Reduction Lens
  • One 6' (1.8m) USB Cable
  • Two Adapters: 30mm and 30.5mm
  • One CD with Software and User's Instructions

  •
