40X-2000X Trinocular Compound Darkfield Microscope with 100X Iris Objective and 1.2MP Low-noise Camera

40X-2000X Trinocular Compound Darkfield Microscope with 100X Iris Objective and 1.2MP Low-noise Camera



Regular price $1,137.99
Regular price $1,365.99 Sale price $1,137.99
Sale Sold out
Quote Request
40X-2000X Trinocular Compound Darkfield Microscope with 100X Iris Objective and 1.2MP Low-noise Camera
Got Questions? Why Choose Us? View full details


This professional trinocular compound microscope provides both darkfield and brightfield features. T490's adjustable trinocular port creates a parfocal optical system by allowing the image-system attached to the photo-port, and the image in the eyepieces to be in focus at the same time. Unlike most similar models, the T490 is simul-focal, allowing the photo-port to be used concurrently with both eyepieces. The head features a 30° incline, 360° swiveling, and compensation-free interpupillary-adjustment. The addition of an oil-immersion darkfield condenser and 100X darkfield objective with iris, allow for high-magnification darkfield observation.

The 1.2MP USB2.0 digital camera is designed for extreme low-light performance. The cutting-edge, back-illuminated CMOS sensor provides ultra-high sensitivity, outperforming most CCD cameras, as well as providing faster capture speeds. It captures still images and video (up to 54fps at low-res, in bright-field), and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Features :

  • A Great Affordable Brightfield and Darkfield Microscopy System
  • Perfect for Clinics, Vets, Doctors and Medical School Students
  • Adjustable Simulfocal Trinocular Port
  • Industry Standard 23mm Photo Port and C-mount Port
  • 30° Inclined 360° Swiveling Compensation Free Trinocular Head
  • Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
  • Low Position Coaxial Stage Movement Control Knobs
  • Fully Coated Optical System with High Resolution
  • Eight Magnifications: 40X-80X-100X-200X-400X-800X-1000X-2000X
  • Upward Stage Stopper to Protect Slides and Objectives
  • Rack and Pinion Adjustment for Condensers
  • Abbe Condenser with Iris Diaphragm Filters

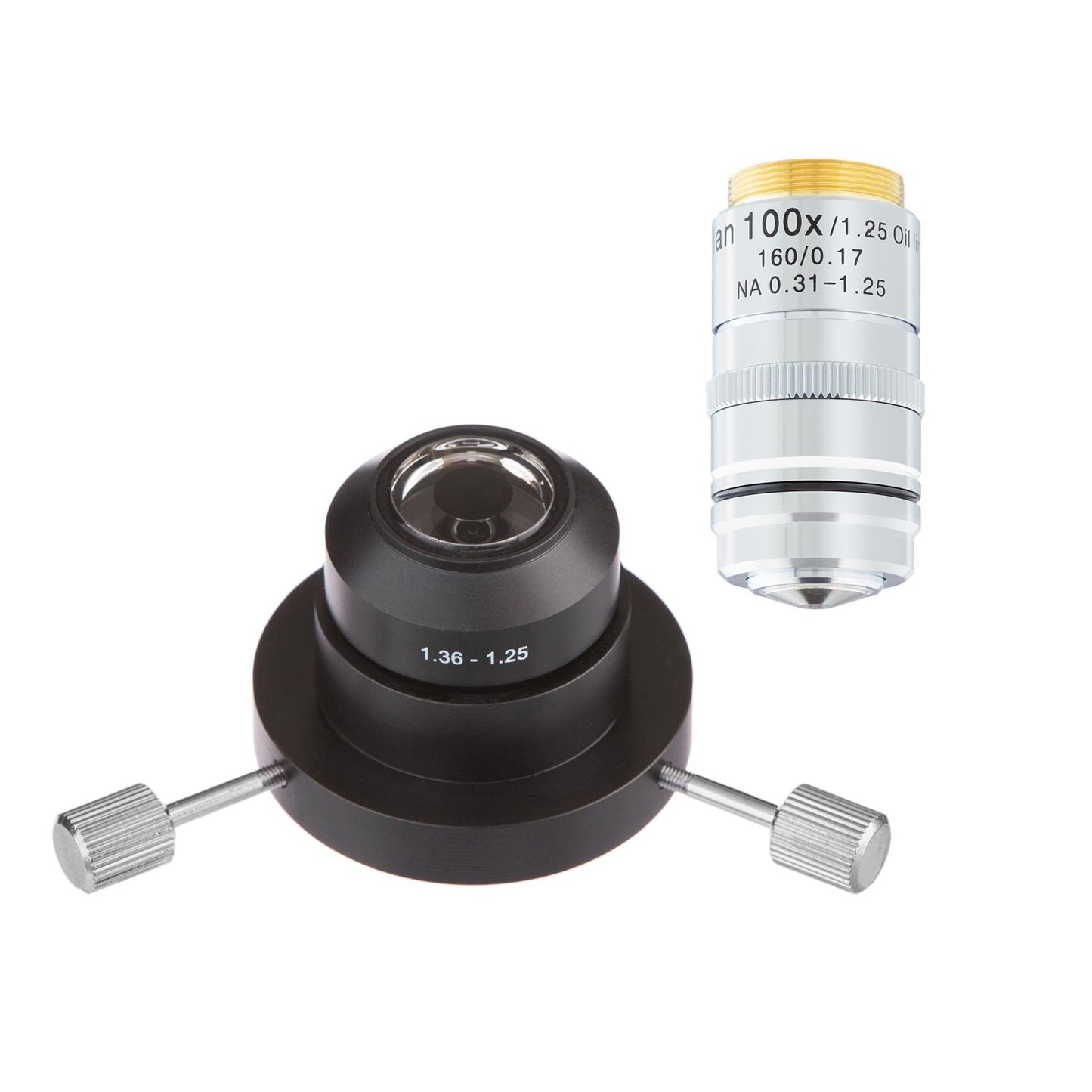

  • Darkfield Oil Condenser
  • Built-in Halogen Illumination System with Variable Intensity
  • Four standard DIN Achromatic Objectives Included, plus one plan objective with iris for darkfield
  • Two Sets of Eyepiece Included
  • Adjustable Interpupillary Distance
  • Adjustable Diopters on Both Oculars
  • Metal Frame and Mechanical Parts with Stain Resistant Enamel Finish
  • Manufactured under Restrict ISO 9001 Quality Control Standards
  • Excellent Five (5) Year Factory Warranty

    Specifications :

  • Nosepiece: quadruple
  • Mechanical Tube Length: 6-5/16" (160mm)
  • Head: 360° swiveling compensation free trinocular head inclined at 30°
  • Eyepieces: WF10X and WF20X
  • Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
  • Plan Achromatic Objective: 100X (spring, oil, iris)
  • Stage Dimensions: 5-1/2"x 5-1/2" (140x140mm)
  • Stage Traveling Range: 2-15/16"x 1-3/4" (75x45mm)
  • Focusing Range: 1-3/16" (30mm)
  • Division of Fine Focusing: 0.0000787" (0.002mm)
  • Abbe Condenser: NA=1.25 with rack and pinion focusing control
  • Illumination: 6V/20W halogen bulb
  • Power Supply: 110V (220V version available), CE certified
  • Accessories: 6V/20W spare halogen bulb, immersion oil, blue, green yellow filters
  • Microscope Dimensions: 12" x 9" x 16"

    Camera Specifications:

  • Sensor: Sony IMX224 (color)
  • Sensor Type: CMOS
  • Sensor Size: 1/3" (4.8mm x 3.6mm)
  • Pixel Size: 3.75µm x 3.75µm
  • Sensor Pixels: 1.2MP (1280 x 960)
  • Sensitivity: 2040mv (1/30s)
  • Max Framerates: 27fps @ 1280x960, 54fps @ 640x480
  • Binning: 1x1, 2x2
  • Exposure Time: 0.105ms - 15s
  • Connectivity: USB 2.0
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  • Reduction Lens: 0.37X C-mount to 23mm

    Packing List :

  • One Trinocular Compensation-Free Head
  • One 23mm Adjustable Photo Port with C-Mount Adapter
  • One Microscope Body with Frame, Base and Halogen Illumination System
  • Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
  • One DIN 100X oil-immersion objective with iris
  • Two Pairs of Widefield Eyepieces, WF10X and WF20X
  • One Oil Darkfield Condenser
  • Three Color Filters
  • One 6V/20W Spare Halogen Bulb
  • One Dust Cover
  • One Power Cord
  • Spare Fuse
  • Immersion Oil sample
  • One 1.2MP USB2.0 Digital Camera
  • One USB Cable
  • One reduction lens and adapters
  • One CD with Driver, Software and User's Instructions
