40X-1000X Research Compound Microscope with Integrated 16MP Digital Imaging System

40X-1000X Research Compound Microscope with Integrated 16MP Digital Imaging System

SKU: B630-TS-16MP

Regular price $2,849.99
Regular price $5,699.99 Sale price $2,849.99
Sale Sold out
Quote Request
40X-1000X Research Compound Microscope with Integrated 16MP Digital Imaging System
Got Questions? Why Choose Us? View full details


This new digital microscope features a built-in 16.0 M.P. with a 9.7" touchscreen display screen. The digital binocular compound microscope itself features 10x wide-field eyepieces with four high quality plan achromatic 4x, 10x, 40x, 100x Oil objectives. This digital binocular compound microscope is perfect for veterinary practices, routine labs, or education.

This all-in-one digital binocular compound microscope captures 16.0 M.P. images and videos up to 4 M.P. For quality digital imaging microscopy, the integrated computer runs Windows 10 with a hard drive offering internal storage, ethernet, and WiFi access, and an HDMI output to connect to a larger device.

Digital Binocular Compound Microscope Specifications:


  • Optical System: Infinity-corrected
  • Objective Lense Type: Plan achromatic
  • Objective Magnifications: 4X, 10X, 40X (spring), 100X (spring, oil)
  • Eyepieces: Wide-field 10X FN22
  • Binocular Interpupillary Distance: 55mm - 75mm
  • Stage Dimensions: 216mm x 150mm
  • Stage Travel: 78mm × 54mm
  • Coarse Focus Range: 22mm
  • Fine Focus Accuracy: 0.002mm
  • Sub-stage Condenser: Abbe 1.25 NA
  • Sub-stage Condenser Movement: 25mm
  • Sub-stage Illumination: 3W variable-intensity LED

    Imaging Specifications:


  • Internal OS: Windows 10
  • Display: 9.7in IPS Touchscreen
  • Display Resolution: 2048 x 1536
  • Image Sensor: 16MP CMOS
  • Pixel Size: 1.335µm
  • Image Capture: up to 4608 x 3456
  • Video Capture: up to 2304 x 1728
  • Display Output: HDMI

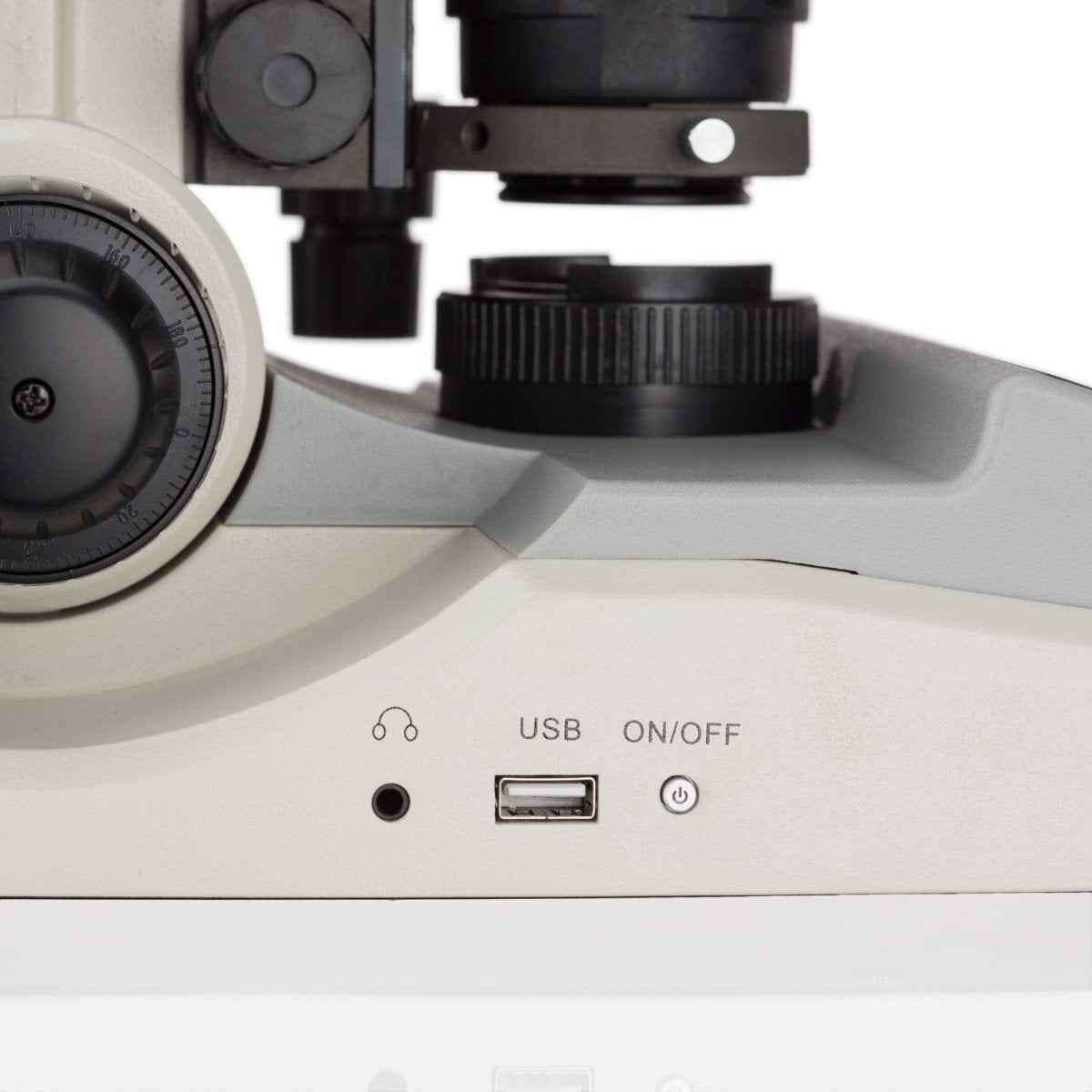

  • USB Connectivity: 2 USB2.0 ports
  • Network Interface: GigE LAN, WiFi
  • Storage: 30GB internal HDD, SecureDigital drive, external USB device
  • AmScope B630-TS-16MP
