11X-80X Industrial Single Zoom Inspection Microscope + 5MP USB Digital Camera

11X-80X Industrial Single Zoom Inspection Microscope + 5MP USB Digital Camera

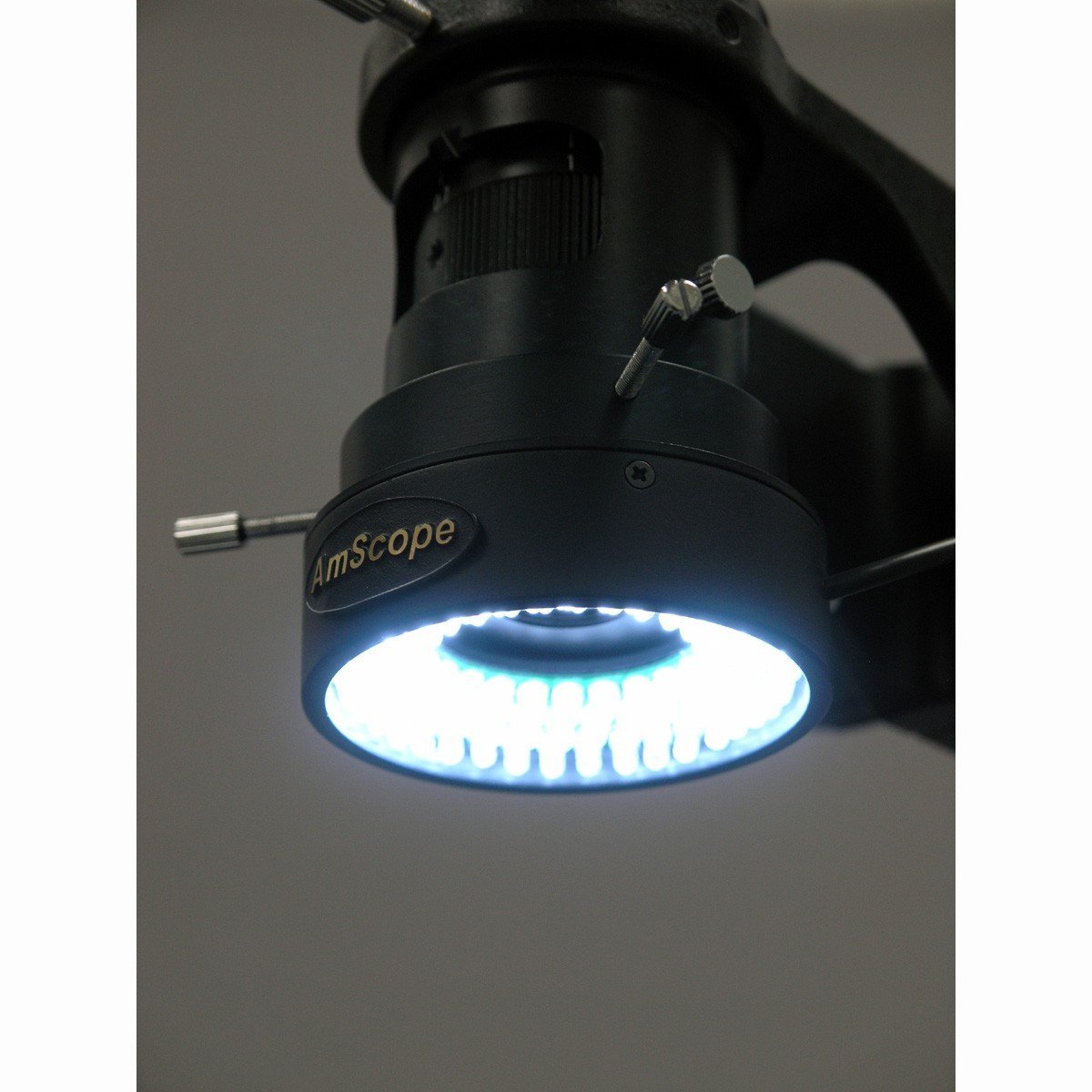

This is an 11X-80X single zoom inspection microscope with 96-LED intensity-adjustable ring light and 5MP USB2.0 digital camera. The microscope offers large working distance and...

$758.99
Request Quote
Add to wishlist

This is an 11X-80X single zoom inspection microscope with 96-LED intensity-adjustable ring light and 5MP USB2.0 digital camera. The microscope offers large working distance and provides sharp clear images with widefield of view. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Features:

  • 11X-80X large zoom magnification power
  • Powerful 96-LED intensity-adjustable ring light
  • Long working distance
  • Super wide field view
  • Large Metal stand and framework
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
  •

    Specifications:

  • Zoom microscope objective: 0.7X-5.0X
  • Mount: 0.4X C-mount
  • Working distance: 4-1/8" (105mm)
  • Field of view: 1/2"x11/16" (12.9mm X 17.1mm) to 5/64"x3/32" (1.8mm X 2.4mm)
  • Illumination: 96-LED ring light
  • Power input: 110-240V, 50-60HZ, auto switching
  • Metal stand plate dimension: 13"x10"
  • Pillar: 11" (280mm) long
  • Accessory: Dust cover
  •

    Camera Specifications:

  • Sensor: Aptina MT9P001
  • Sensor Type: CMOS
  • Sensor Size: 5.7x4.28mm
  • Pixel Size: 2.2
  • Resolution: 5.1MP
  • Frame Rate: 5@2592x1944, 18@1280x960, 60@640x480
  • Sensitivity: 0.53 V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
  •

    Packing List:
  • One Monocular Zoom Microscope Head with 0.7-5.0X Objective and 0.4X C-Mount Lens
  • One Focusing Rack
  • One Pillar Plate Stand
  • One Dust Cover
  • One 96-LED Ring Light with Control Box
  • One 5MP Color Digital Camera with Reduction Lens
  • Two Mounting Adapters (30mm and 30.5mm)
  • One USB Cable
  • One CD with Driver, Software and User's Instructions
  • One Package: 18 lbs

  • AmScope H800-9M
