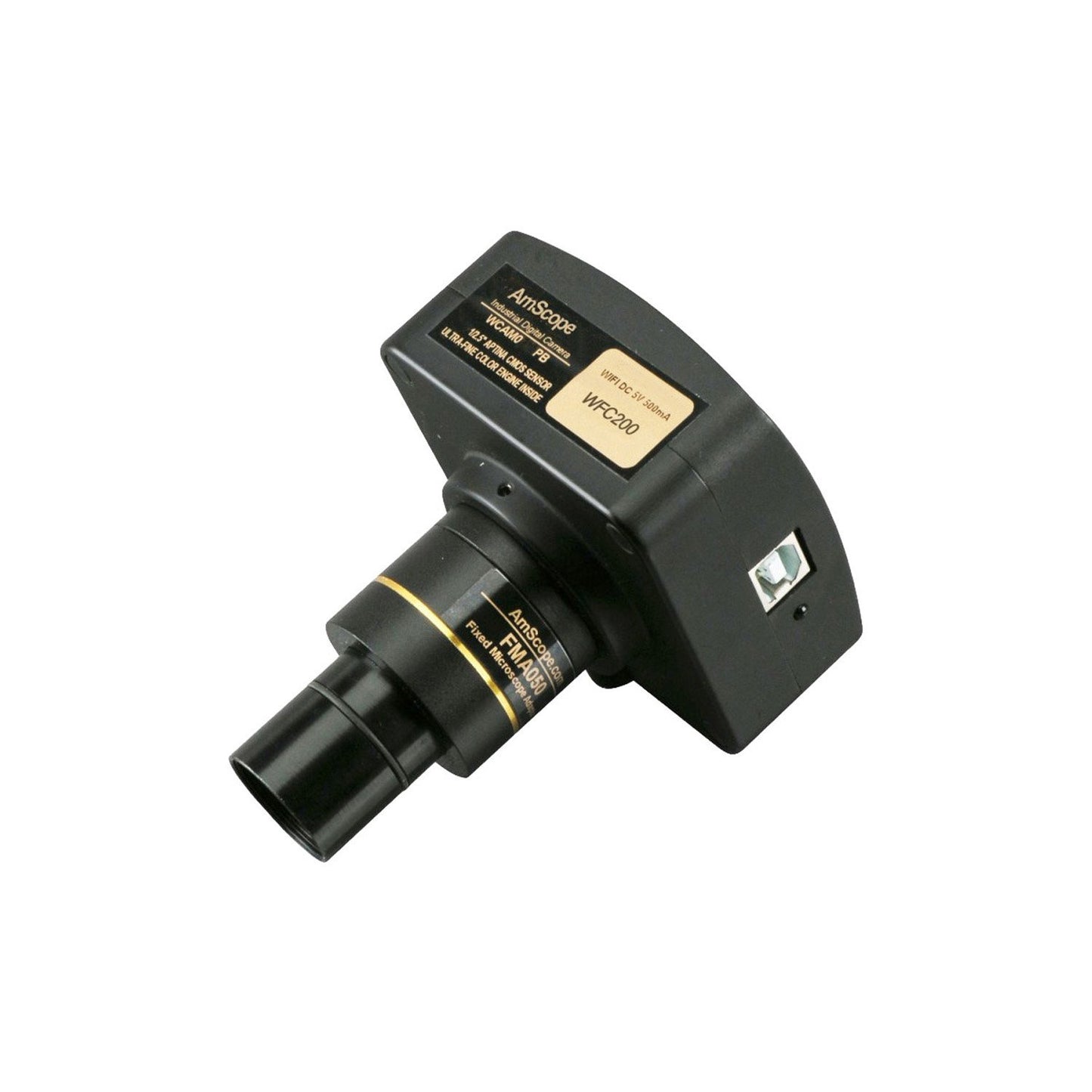

1080p Wi-Fi Microscope Digital Camera + Software

1080p Wi-Fi Microscope Digital Camera + Software

This 1080p WiFi microscope digital camera, with its unique design, comes with a reduction lens, a USB cable and two adapters. The digital camera captures still...

$239.98
Request Quote
Add to wishlist

This 1080p WiFi microscope digital camera, with its unique design, comes with a reduction lens, a USB cable and two adapters. The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. The 0.5X reduction lens gives larger field of view. You can edit and process images in a manner similar to PhotoShop.

The camera can connect to a desktop computer or compatible mobile device through WiFi. The USB port is used for power only, drawing from a USB-bus connection, or by using the included USB power adapter. Featuring built-in C-mount compatibility and 23mm reduction lens adapter, our camera can be attached to any instrument with a C-mount or a 23mm, a 30mm and a 30.5mm photo port. The camera is equipped with CMOS color sensor, and comes with a high-speed USB 2.0 cord, four mounting sizes (23mm, 30mm, 30.5mm, and C-mount), and instructions.

Camera Specifications:

  • Sensor: Sony IMX222 (color)
  • Sensor Type: CMOS
  • Sensor Size: 1/2.2" class (7.6mm x 5.8mm)
  • Pixel Size: 2.8µm
  • Resolution (Still/Video): 1920x1080
  • Frame Rate: 25fps @ 1920x1080
  • Sensitivity: 510mV @ 1/30s
  • Connectivity: WiFi
  • Power Supply: DC5V USB charger
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
  • Advanced software for Windows:
    - offers Stitching, EDF, video recording and measurement functions
    - conducts measurements for lengths, angles, arcs, areas and etc.
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - live video and still image capture can be set in different resolutions simultaneously
    More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
  • Life-time free software upgrades
  •

    Contents:

  • 1080p WiFi Digital Camera
  • 0.5X Reduction Lens
  • 6' (1.8m) USB cable
  • USB Charging Adapter
  • 30mm and 30.5mm adapters
  • CD with software and user's instructions
