1080p HDMI WiFi Digital Camera for Standalone and PC Imaging + HD Monitor

1080p HDMI WiFi Digital Camera for Standalone and PC Imaging + HD Monitor

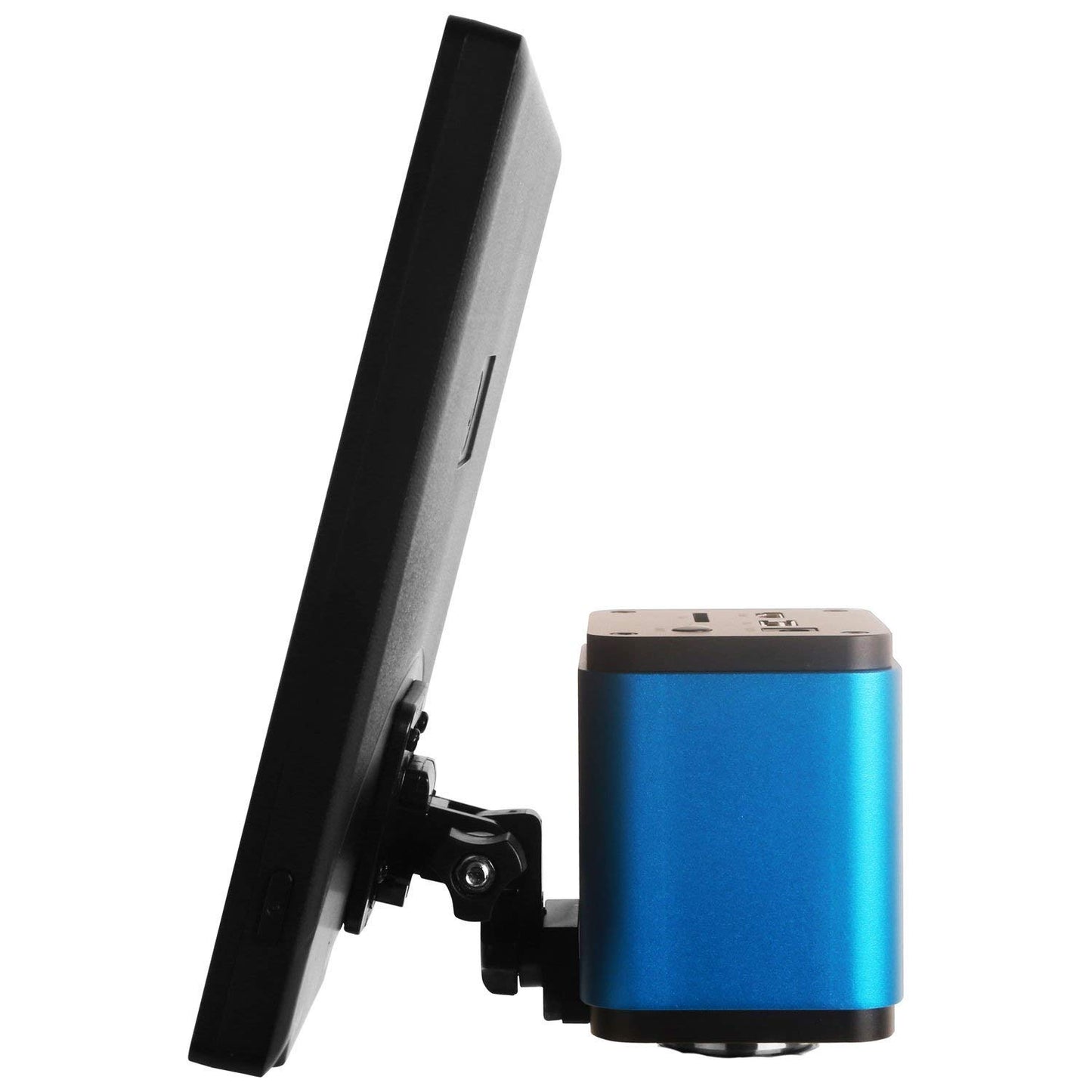

The HD202-S11B includes our 1080p WiFi camera and an 11.6" monitor, delivering HD video up to 60fps, even in low light. The highly-sensitive digital sensor makes this...

$757.99
Request Quote
Add to wishlist

The HD202-S11B includes our 1080p WiFi camera and an 11.6" monitor, delivering HD video up to 60fps, even in low light. The highly-sensitive digital sensor makes this camera ideal for low-light applications, including dark-field and fluorescence. Able to be used as a standalone recording device using Secure Digital memory, or as a WiFi camera on a networked computer, this is an extremely flexible imaging solution. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.

With the included monitor, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure, and control recording functions. As an alternative solution, the camera can be connected to a PC using the included USB WiFi adapter. View a live feed on the monitor while simultaneously viewing and recording 25fps video or stills on your PC. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Camera Specifications:



  • Sensor: Sony IMX185 (color)
  • Sensor Type: CMOS
  • Sensor Size: 1/1.9" class
  • Pixel Size: 3.75
  • Resolution: 1080p
  • Frame Rate: 60fps @ 1920x1080 (HDMI), 25fps @ 1920x1080 (WiFi)
  • Sensitivity: 1120mV @ 1/30s
  • Connectivity: HDMI, WiFi
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  • Mounting Sizes: C-mount
  • Power: 12V, 1A
  •



    Monitor Specifications:



  • Display Type: Active Matrix Super TFT LCD
  • Panel Type: IPS
  • Backlight: LED
  • Screen size: 11.6"
  • Screen ratio: 16:9
  • Native Resolution: 1920x1080
  • Pixel Pitch: 0.134mm
  • Brightness: 350 cd/sq.m
  • Contrast: 1000:1
  • Port: HDMI
  • Colors: 16.7M
  • Dimensions: 11"x7"x.6" (281x179x15.6mm)
  • Weight: 14.1oz (400g)
  • Power Adapter: AC110V-220V to DC12V, 1A
  •



    Software Specifications:



  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
  • Advanced software for Windows:
    - offers Stitching, EDF, video recording and measurement functions
    - conducts measurements for lengths, angles, arcs, areas and etc.
    - gives your computer screens the same field of view as your microscope's eyepiece
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - live video and still image capture can be set in different resolutions simultaneously
    More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
  • Lifetime free software upgrades
  •



    Contents:



  • One HD digital camera
  • One 11.6" LCD monitor with bracket
  • One USB mouse
  • One USB WiFi antenna
  • One 6.5' HDMI cable
  • One 16" HDMI cable
  • One HDMI right-angle adapter
  • One SD card
  • Two power adapters
  • One power splitter (Y-cable)
  • One CD with Software and User's Instructions

  •
