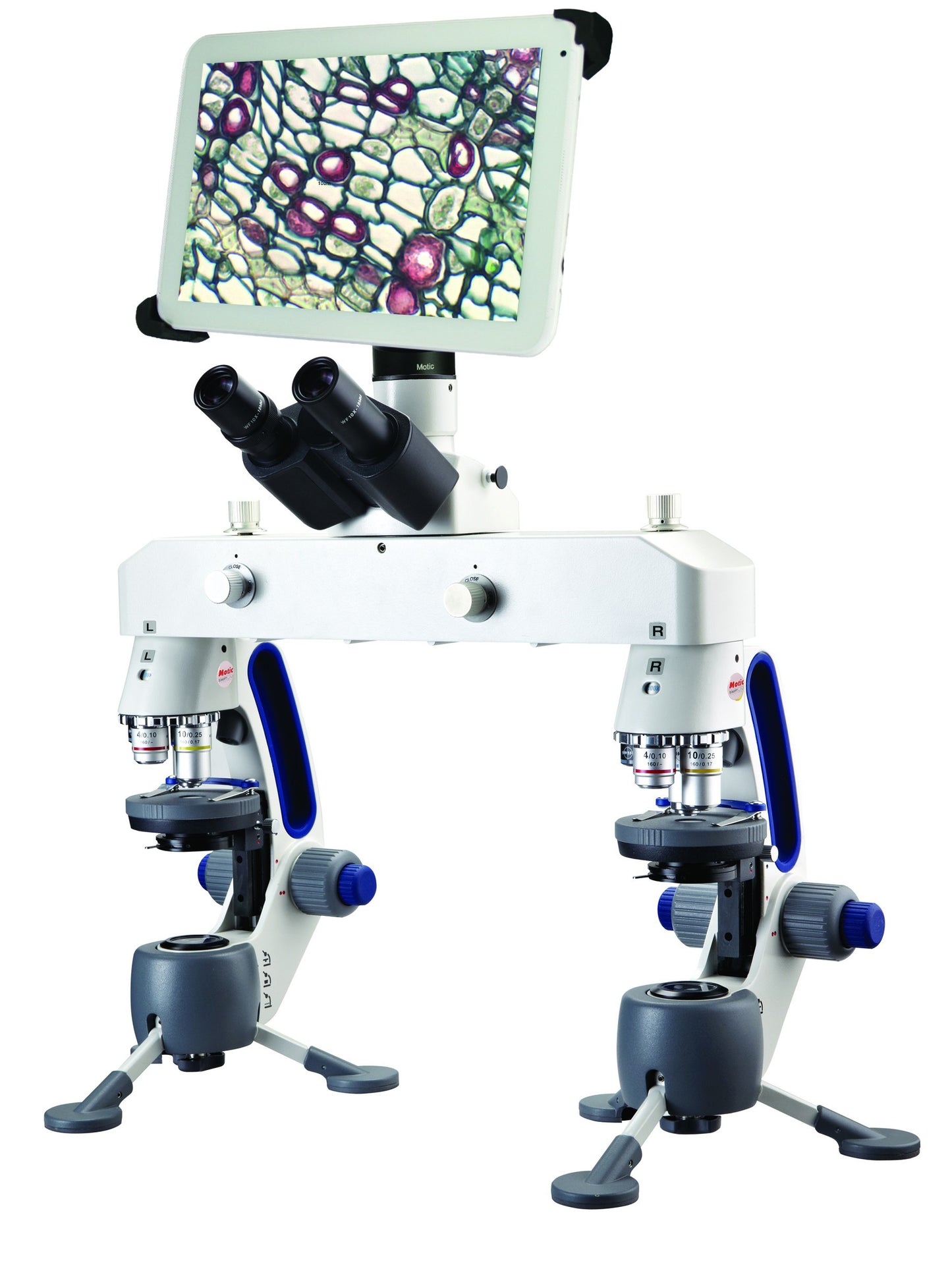

Swift M3 Comparison LED Microscope with 10" Tablet

Swift M3 Comparison LED Microscope with 10" Tablet

|

SKU: M3-F-BTI2

Regular price $2,730.00
Regular price $3,212.00 Sale price $2,730.00
Sale Sold out
Quote Request
Swift M3 Comparison LED Microscope with 10" Tablet
Got Questions? Why Choose Us? View full details

Description

A truly unique concept in microscopy! The M3-F forensic microscope offers professional features and detachable 10" tablet at a highly competitive price point. Use the M3-F's revolutionary technology to compare images in both micro and macro environments. The M3's dedicated macro lens, with a large working distance, allows you to view not only bullets but also larger more bulky, "evidence" items. Swift's powerful optical system allows for images to be seen either 100% from the left microscope, 100% from the right, side-by-side, or overlapping. The M3-F is the first and only comparison microscope at this price level that can achieve overlapping of images.

Combining the features of Swift's popular M3-F's advanced comparison microscope with an Android based tablet system offers unlimited possibilities.

OPTICAL SYSTEM
  • Widefield 10x /18mm eyepieces.
  • Trinocular viewing head with 45° inclined eyepiece.
  • DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) achromat objectives, and 1X Macro objective.
  • Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives.
USE OF TRINOCULAR PORT
  • To use the trinocular port with a digital video camera, you must purchase a video C-mount adapter with a 0.5X lens (MA15602).
ILLUMINATION
  • LED light rated up to 50,000 hours of life.
  • Batteries allow up to 500 recharges, for a total of 20,000 to 25,000 hours of use. Battery charger included with microscope, automatically shuts off when batteries are fully charged, no danger of overcharging batteries and shortening battery life. No expensive recharger station needed/ Plug directly into wall outlet, or use ordinary, inexpensive power strip for recharging multiple microscopes. Indicator light changes from red to green when fully charged.
ELECTRICAL
  • 110V - 220V switching power supply, unit shipped with American plug.
FOCUSING
  • Coaxial coarse and fine focusing controls.
STAGE
  • Circular stage with diameter of  4 in. (97mm).
  • Gliding stage plate with "one-touch" stage clips.
  • Stage plate with 0.65 condenser.
  • Sealed iris diaphragm.
  • One-touch stage clips.
  • Black and white stage disks, and specimen cup.

TABLET

  • 10" LCD Android tablet with 1280x800 screen resolution
  • Connection: WiFi; mini HDMI; micro SD card
  • 4.0MP sensor
  • 4.0MP captured image resolution
  • WiFi Resoltuion: 2.0MP - 5.0MP
  • 720P captured video resoltuion
  • HDMI: 1080
  • Android operating system
  • WiFi: WiFi output (802.1 ab/g/n supporting both hot-spot mode or using existing WiFi network)
  • Preloaded optimized MotiConnect app
  • Supplied with Motic Images Plus software for Mac/PC
  • Built-in MoticHub allows for wireless sharing

REQUIRED SPECIFICATIONS

  • Android or iOS ready device
  • WiFi Adapter (PC and Mac only)
  • This camera system is designed specifically to fir Swift, National , and Motic C-Mounts adapters and microscopes. No support is provided for third party adapters or microscopes.
