Accu-Scope EXI-310 Inverted Phase Contrast Digital Microscope Package

Accu-Scope EXI-310 Inverted Phase Contrast Digital Microscope Package

  • SKU: EXI-310-PH-HD
$3,466.00 $3,939.00
Camera
Quote Request

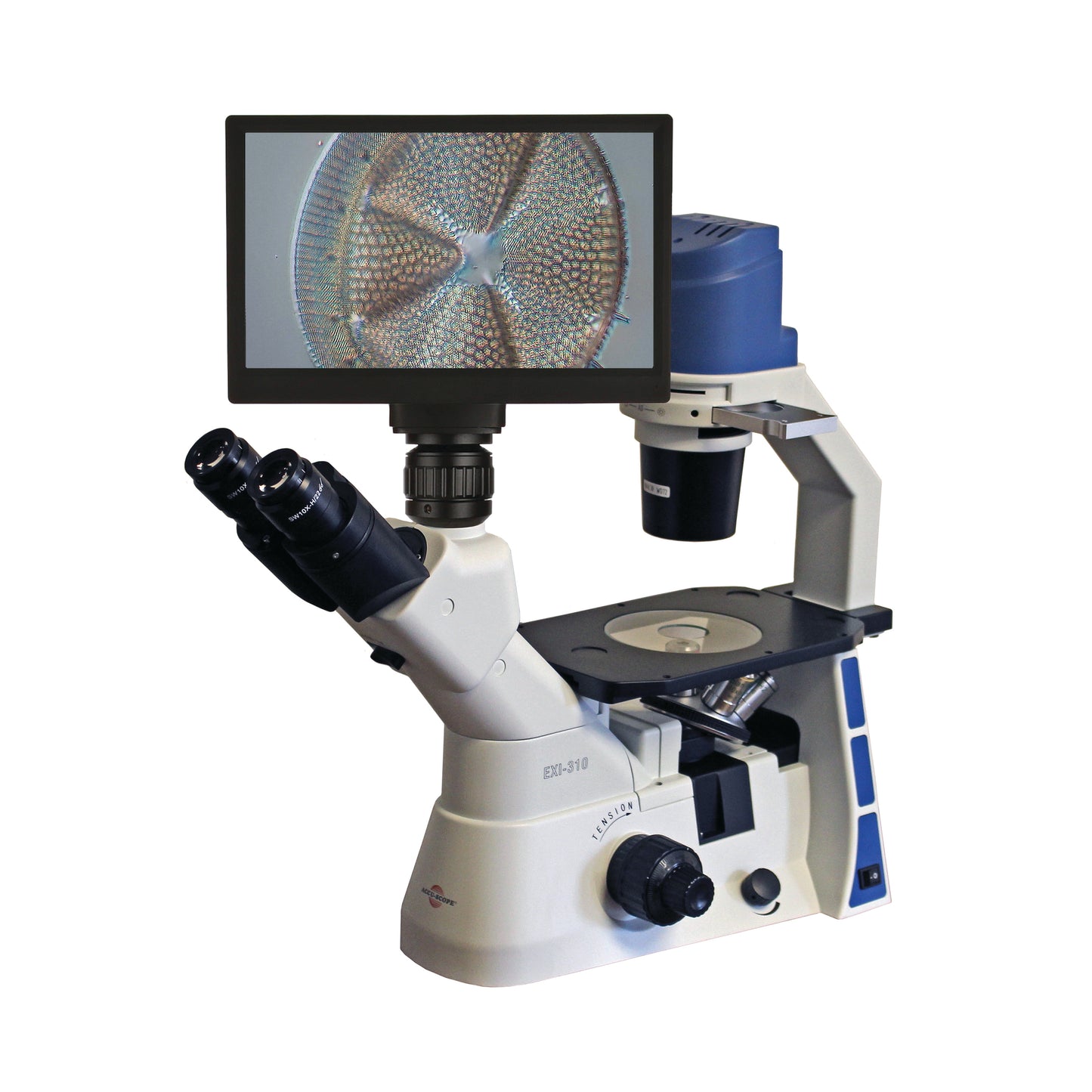

The Accu-Scope EXI-310 digital inverted phase contrast microscope package is a high quality inverted phase contrast microscope ideal for tissue culture, cell detection, cell transfection, and more. The EXI-310-PH microscope is equipped with extra long working distance objectives making it compatible with petri dishes, slides, well plates, roller bottles, and other specimen holders. This microscope provides both phase contrast, and brightfield settings, and can be upgraded to fluorescence. The trinocular viewing head has a c-mount camera adapter and your choice of camera. The 10x eyepieces have roll-down eyeguards for added comfort, and provide a 22mm field of view. The quintuple nosepiece comes with infinity plan achromat LWD 4x and infinity plan achromat phase LWD 10x & 20x objectives. Additional objectives are available, or you can upgrade to plan fluor objectives. The extra long working distance condenser has a N.A. of 0.3 with a 72mm working distance. The phase contrast slider has 4x/10x and 20x/40x phase annulli and a brightfield position. The flat top stage has a large working area, and an optional mechanical stage can be added to the EXI-310-PH microscope. The 5-watt variable LED illuminator is raged for over 25,000 hours of continued use. This ergonomically designed microscope is built with all internal metal gears and designed for long-term use in a professional setting.

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software -  image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Trinocular viewing head with photo tube, inclined 45°, Light distribution binocular 100% or binocular/trinocular 80%/20% & c-mount adapter
Eyepieces: WF10x/22mm focusable eyepieces with roll-down eyeguards
Nosepiece: Side facing quintuple nosepiece
Objectives: Infinity Plan Achromat LWD 4x, Infinity Plan Achromat Phase LWD 10x & 20x
Stage: Fixed plain stage 160mm x 250 with glass and aluminum insert plates
Condenser:

ELWD N.A. 0.3, WD= 72mm

Phase Contrast Slider 4x/10x, 20x/40x, Brightfield

Focusing: Coaxial coarse and fine focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass for fine focus gear
Illumination: 5 watt LED Koehler with variable intensity control; LED bulb is rated for over 25,000 hours of continued use; universal power supply 110-240v
Misc:

Green filer, Ground Glass Filter, 45mm LBD filter, Phase Telescope, Dust Cover, Power Cord, Manual

Warranty: 5 year limited warranty for parts, labor and electronic components; 1 year warranty on LED bulb


 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
