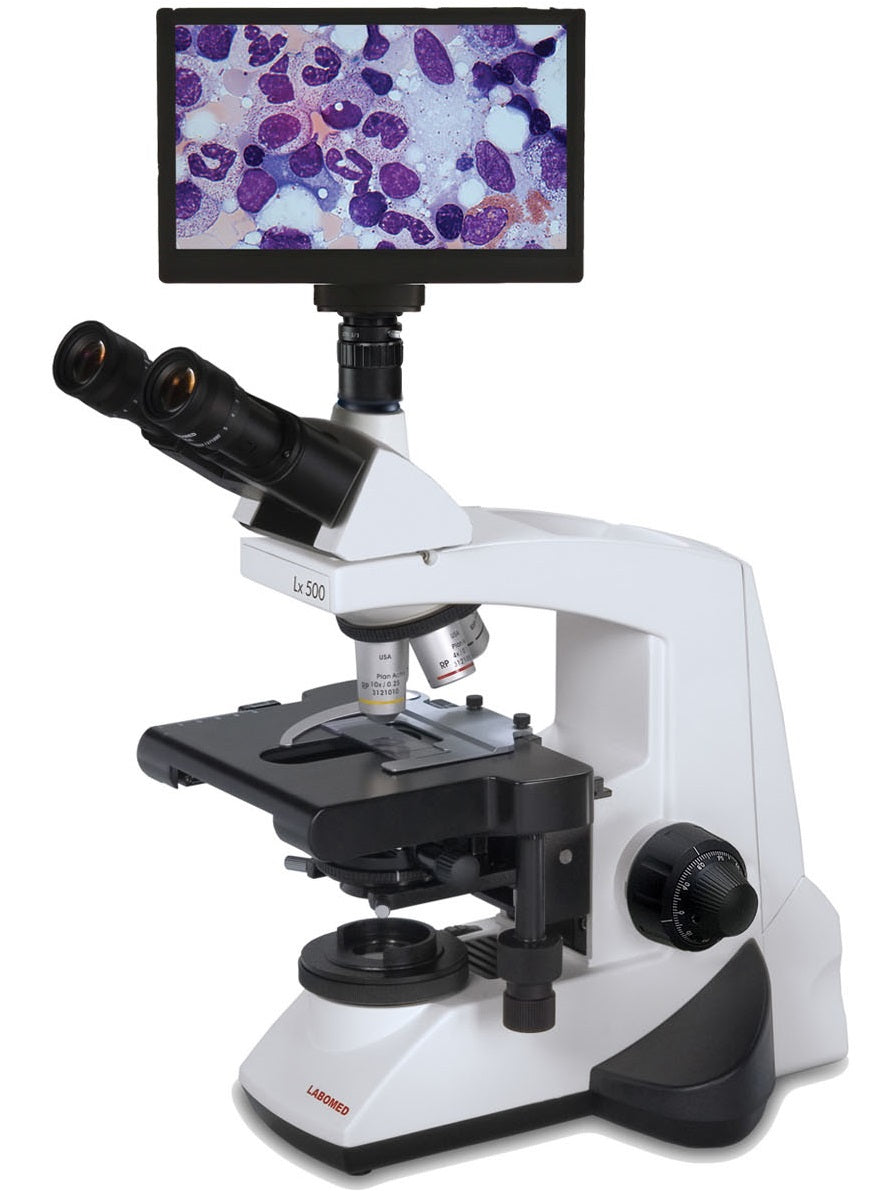

Labomed Lx500 Phase Contrast Digital HD Microscope
Labomed Lx500 Phase Contrast Digital HD Microscope
|
SKU: 9144500L-HD
- Choose With or Without Screen
- Phase Contrast 10x, 20x, 40x, 100x Oil Objectives
- Rackless XY Stage w/ Ceramic Insert
- LED Illumination
- 5 Year Mechanical & Electrical Warranty
Couldn't load pickup availability
Description
This complete Lx500 phase contrast digital microscope package includes your choice of HDMI / USB output camera. You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC to capture images into the free software. If you do not select the screen you can still output HDMI to your own screen off to the side, or USB to a computer. The screen just serves as an all-in-one streamlined solution.
The Labomed Lx500 phase contrast microscope is a beautifully designed, ergonomic, expandable, and reliable laboratory grade microscope. You can choose between a standard binocular head, trinocular head, or ergonomic tilting binocular head. This microscope offers a wide field of view with the 10x/22mm eyepieces. The nosepiece is a reversed quintuple nosepiece with ball bearings. The RP2 Infinity Plan Achromat Phase Contrast objectives provide clear and high resolution images. The microscope comes standard with 4x, 10x, 40x, and 100x oil phase objectives. It comes with a phase contrast turret condenser. The rackless XY mechanical stage has a ceramic insert which ensures durability. Featuring kohler illumination you can choose between halogen or rechargeable LED. This microscope is ideal for laboratory use and can be upgraded to fluorescence, multiple viewing, or specially configured with other objectives.
The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. When output HDMI on-board software pops up on your screen and you can control the camera with the included mouse. The camera can also output to a PC and can be used with the feature right included software which allows for image / video capture, measurements, extended depth of focus, annotations, stitching, and more!
| Specifications | |
|---|---|
| Stand: | Single mold sturdy stand with anti rust materials. Extended base for better stability |
| Viewing Head: | Trinocular 30° 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment |
| Eyepiece: | Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated |
| Nosepiece: | Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives: | Phase objectives: 10x, 20x, 40x (spring), 100x (spring, oil) |
| Stage: | Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder |
| Condenser: | Sub-Stage Phase contrast condenser |
| Focusing: | Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation |
| Illumination: |
Halogen 6V-30W lamp with variable illumination control |
| Electrical: | Universal input 100V - 240V AC, 50/60Hz |
| Accessories: | Immersion oil, dust cover, and cleaning cloth. |
| Camera Specifications | |
|---|---|
| Optional Screen: | 11.6" Retina Display Screen |
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
