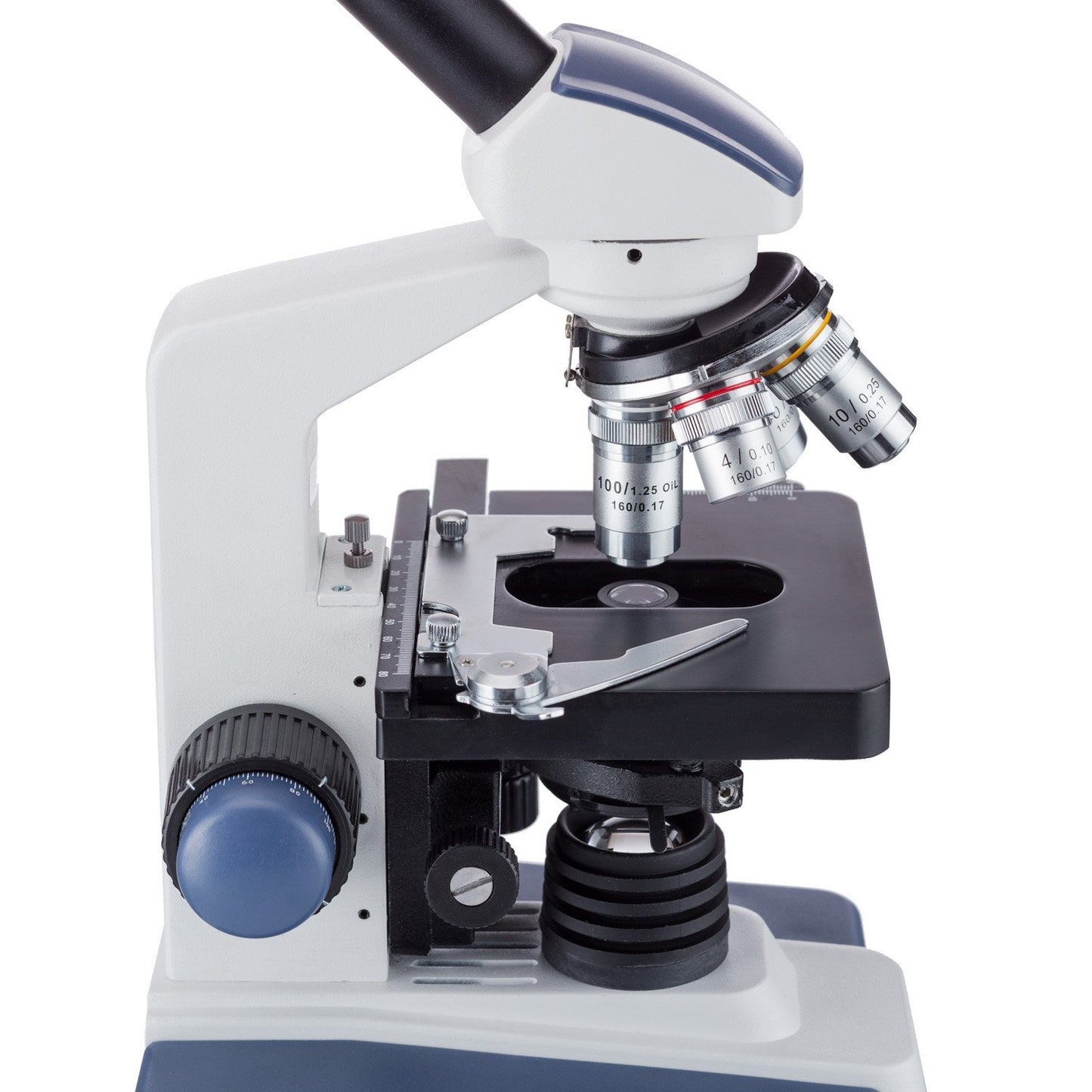

AmScope 40X-2500X LED Monocular Compound Microscope with 3D Stage
AmScope 40X-2500X LED Monocular Compound Microscope with 3D Stage
|
SKU: M620C
Couldn't load pickup availability
Description
This monocular microscope is designed for student classroom use. The microscope offers a monocular viewing head with 10x & 25x W.F. eyepieces. Equipped with 4x, 10x, 40x, and 100x oil objectives this microscope provides up to 2500x when using the 25x eyepiece. The mechanical stage makes moving your sample easy and simple and the iris diaphragm allows for adjustments for optimal resolution.
Features :
- 30 degree inclined 360 degree swiveling monocular head
- High quality precise optical glass elements
- Five magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
- Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
- Two widefield eyepieces: WF10X and WF25X
- Variable intensity illumination
- Coaxial coarse and fine focus adjustment
- Focusing knobs are on both sides of the microscope
- Stage upward moving lock protects objectives and slides
- Stain-resistant double layer mechanical stage
- NA1.25 Abbe Condenser with iris diaphragm & filters
- Rack and pinion adjustment condenser
- Manufactured under ISO 9001 Quality Control Standard
- Excellent five (5) year manufacturer warranty
Specifications :
- Eyepieces: widefield, WF10X and WF25X
- Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
- Head: 30 degree inclined 360 degree swiveling monocular
- Adjustable ocular diopter
- Nosepiece: revolving quadruple
- Mechanical Stage: 3-D double layer
- Size: 4-5/8" x 5" (118mm x 127mm)
- - Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
- Condenser: NA1.25 Abbe condenser with iris diaphragm
- Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
- Focusing: coaxial coarse & fine knobs on both sides
- Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
- Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm0
Packing List :
- One Monocular Microscope Head
- One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
- Four DIN Standard Objectives, 4X, 10X, 40X and 100X
- One Widefield 10X Eyepiece
- One Widefield 25X Eyepiece
- One Blue Color Filter
- One Dust Cover
- Sample Immersion Oil
- User's Manual Download
