Labomed Lx400 Digital Microscope Package
Labomed Lx400 Digital Microscope Package
|
Couldn't load pickup availability
Description
This package combines the Labomed Lx400 microscope with the Labomed iVu 5100 5.0 M.P. camera. This package is perfect for college and laboratory settings and comes with everything you need - trinocular microscope, c-mount, and camera. The microscope has DIN Plan Achromat 4x, 10x, 40x, and 100x oil objectives.
| Microscope Specifications | |
|---|---|
| Head: | Siedentopf Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm |
| Eyepieces: | Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal |
| Nosepiece: | Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives: | RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), anti fungus |
| Mechanical stage: | Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder |
| Condenser: | Sub stage Abbe condenser NA 1.25. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides |
| Focusing: | Coaxial coarse and fine focusing on ball drive system for smooth operation |
| Illumination |
6v 20w Halogen Up to 2,000 hours of Halogen lamp life OR LED Illumination |

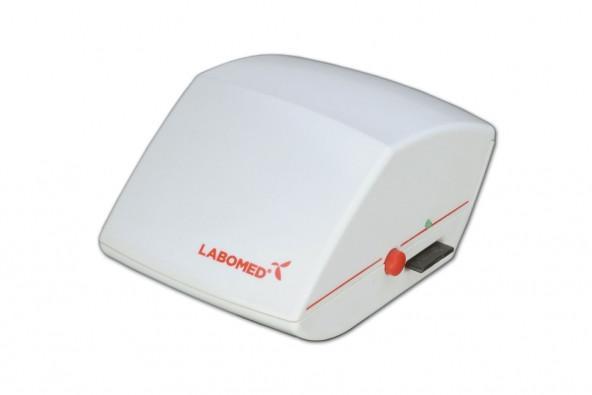

| Camera Specifications | |
| CCD sensor: | 1/2.5” 5.0 Megapixel Color CMOS Active area: 5.70mm x 4.28mm |
| Sensor resolution: | 2592 x 1944 pixel |
| Pixel Size: | 2.2μm x 2.2μm |
| Max. exposure: | 3S |
| Min exposure: | 1S |
| Live Image: | 30 fps (1280 x 720) for Digital & 30 fps (720P) for Analog |
| Image resolution: (Standard Binning) |
2592 x 1944 1280 x 720 |
| Interface: | USB 2.0, HDMI, Secure Digital (SD) Card |
| Optical connection: | C- Mount |
| Integrated slot: | SD card slot for SD and SDHC Cards |
| Recording: | Button for image capture and video capture |
| External Power: | Optional power adapter available for when USB power not available |
| System requirements: | PC: Microsoft Windows® XP/ Vista/ 7 OS, 3 Ghz CPU, 2GB RAM, USB 2.0 |
| Software: | PixelPro™ Image Analysis Software for capturing still images and videos. Software provides an easy to navigate user interface designed for routine analysis. Control features include Auto White Balance and Auto Exposure adjustments, Picture quality adjustments, Annotations, Measurement functions & Calibration, Region of Interest selection, Archival of images in an easy to use gallery, and a variety of resolutions to view images at. |
Labomed Lx400 Brochure Labomed iVu 5100 Brochure
