Excelis MPX-5C Pro Digital Microscope Camera

Excelis MPX-5C Pro Digital Microscope Camera

|

SKU: AU-5C-CMOS

Regular price $1,615.00
Regular price $1,795.00 Sale price $1,615.00
Sale Sold out
  • 5.0 M.P.
  • PC or MAC USB 3.0 Output
  • Extensive Software Features Included
  • Sony IMX264 Sensor
  • Brightfield or Fluorescence
Quote Request
Excelis MPX-5C Pro Digital Microscope Camera
Got Questions? Why Choose Us? View full details

Description

The Accu-Scope MPX-5C Pro camera combines a high performance camera in a low profile design. The included CaptaVision+ software offers countless features such as real time image stitching, real-time depth-of-field fusion, report generation & export, and of course measurement, annotations, and more!

The camera uses a Sony Pregius 5.0 M.P. 2/3"  CMOS IMX264 sensor with 3.45 x 3.4µm pixels. Captured image resolution can reach up to 2448x2048 which will resolve fine details in your samples.

The MPX-5C Pro's core ISP color-interpolation algorithm simulates the human eye's sensitivity to color. The image colors are true to the color seen through the eyepiece. This camera is suitable for brightfield, or fluorescence imaging.



Model AU-5C-CMOS
Sensor / Model CMOS / Sony IMX264LQR-C
Sensor Size 2/3"; 0.65 C-mount (recommended)
Image Transmission High-speed
Pixel Size 3.45µm x 3.45µm
Resolution 2448 (H) x 2048 (V)
Frame Rate 35FPS (2448x2048)
Shutter Mode Global
Exposure Time 0.13ms-15s
Automatic Settings Exposure, Color Scale, White Balance
Manual Settings Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction
Color Temperature 2000K-15000K
ADC Depth 12Bit
Operating Temperature & Humidity

0-60%

Camera Size & Weight 68x68x46mm / 330g
Data Interface USB 3.0, compatible with USB 2.0
PC Imaging Software

CaptaVision+ Imaging Software for PC and Mac OS

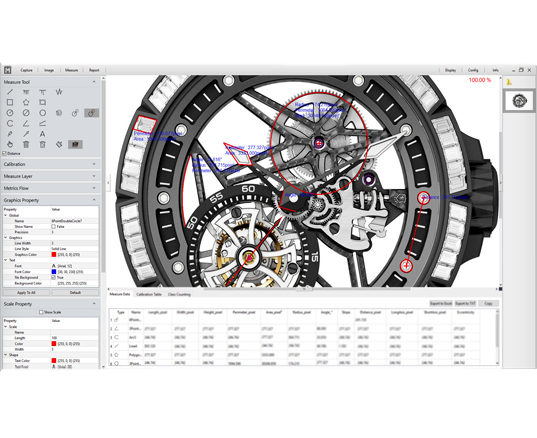

Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multicolor channel merge; HDR (High Dynamic Range) function

Image Types: JPEG, PNG, TIFF and DICOM (DICOM not available for Mac)

System Software  Compatibility Windows XP, Vista, 7, 8, and 10 (32 or 64 bit); Mac OSX 10.4 and higher System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Warranty 1 year
