AccuCam 3.0 M.P. Microscope Eyepiece Camera

Recently viewed

AccuCam 3.0 M.P. Microscope Eyepiece Camera
AccuCam 3.0 M.P. Microscope Eyepiece Camera

AccuCam 3.0 M.P. Microscope Eyepiece Camera

  • SKU: AU-300-EP-1
$150.00
Adapter
Quote Request

This new AccuCam 3.0 M.P. microscope eyepiece camera makes it easy to turn any standard unit into a digital microscope. Remove your existing eyepiece and insert this camera in its place and you have a digital camera microscope!

Please Note: This camera will fit all standard monocular & binocular compound microscopes that accept a standard 23.2mm eyepiece. If you have a 30mm eyetube please select "With adapter."

Includes our feature-rich ACCU-View software (PC only) for image analysis, annotation, measurement, white balance & more! Or try our ACCU-View LITE (for PC and Mac) for a streamlined operating experience (e.g., fewer features, simple interface).

ACCU-CAM 500 (AU-500-EP)
Sensor 1/2.8" Sony IMX335 color CMOS, 2.0µm pixels
Dynamic/Static Resolution 2592 x 1944
Frame Rate 26fps @ 2592x1944, 26fps @ 1280x960, 26fps @ 640x480
Image Capture Image saved to PC via USB2.0
Exposure Automatic and Manual (set Exposure Time)
White Balance Automatic and Manual
Other Settings Gain, Gamma, Color Adjustment, Histogram
PC Imaging Software ACCU-View (PC only)
Image Types: JPEG, BMP, TIF, PNG, GIF, PCX, TGA, TFT (proprietary format for ACCU-View)
ACCU-View LITE (PC, Mac)
Image Types: JPEG, BMP, TIF, PNG, GIF, PCX, TGA, TFT (proprietary format for ACCU-View)
Output Mode USB2.0
System Requirements Windows 7 and up (32 and 64-bit); Mac OS 10.6 and up
Power Supply via USB2.0

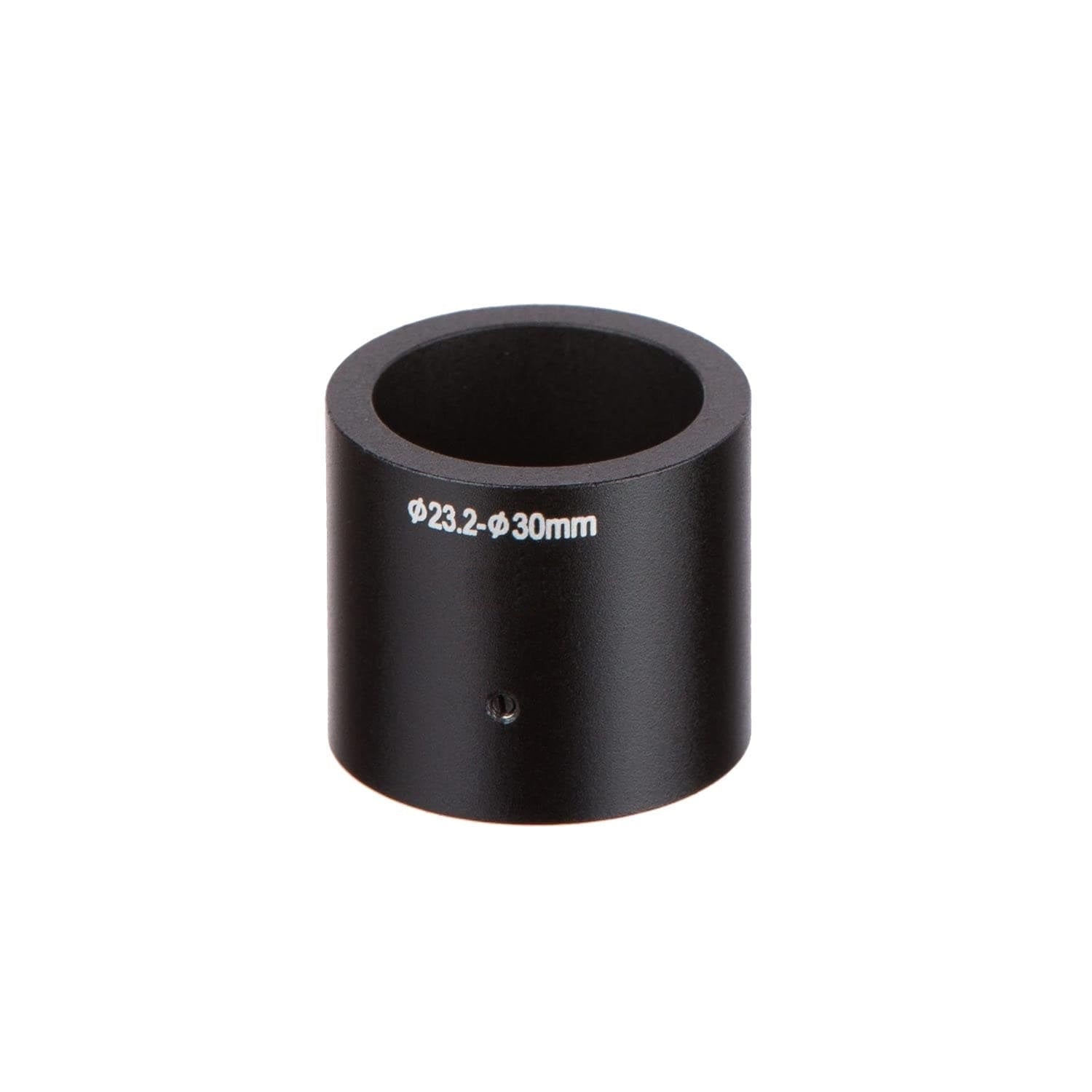

Lens Mount Eyepiece adapter (camera fits 23.2mm I.D. eye tube or photo tube. Optional adapter (CAT #5036) available for 30mm I.D. eyepieces

This new AccuCam 3.0 M.P. microscope eyepiece camera makes it easy to turn any standard unit into a digital microscope. Remove your existing eyepiece and insert this camera in its place and you have a digital camera microscope!

Please Note: This camera will fit all standard monocular & binocular compound microscopes that accept a standard 23.2mm eyepiece. If you have a 30mm eyetube please select "With adapter."

Includes our feature-rich ACCU-View software (PC only) for image analysis, annotation, measurement, white balance & more! Or try our ACCU-View LITE (for PC and Mac) for a streamlined operating experience (e.g., fewer features, simple interface).

ACCU-CAM 500 (AU-500-EP)
Sensor 1/2.8" Sony IMX335 color CMOS, 2.0µm pixels
Dynamic/Static Resolution 2592 x 1944
Frame Rate 26fps @ 2592x1944, 26fps @ 1280x960, 26fps @ 640x480
Image Capture Image saved to PC via USB2.0
Exposure Automatic and Manual (set Exposure Time)
White Balance Automatic and Manual
Other Settings Gain, Gamma, Color Adjustment, Histogram
PC Imaging Software ACCU-View (PC only)
Image Types: JPEG, BMP, TIF, PNG, GIF, PCX, TGA, TFT (proprietary format for ACCU-View)
ACCU-View LITE (PC, Mac)
Image Types: JPEG, BMP, TIF, PNG, GIF, PCX, TGA, TFT (proprietary format for ACCU-View)
Output Mode USB2.0
System Requirements Windows 7 and up (32 and 64-bit); Mac OS 10.6 and up
Power Supply via USB2.0
Lens Mount Eyepiece adapter (camera fits 23.2mm I.D. eye tube or photo tube. Optional adapter (CAT #5036) available for 30mm I.D. eyepieces

AccuCam Brochure
